74534 - Toro 36" GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) Parking Brake Assembly Parts Diagram

36" GrandStand Stand-On Mower

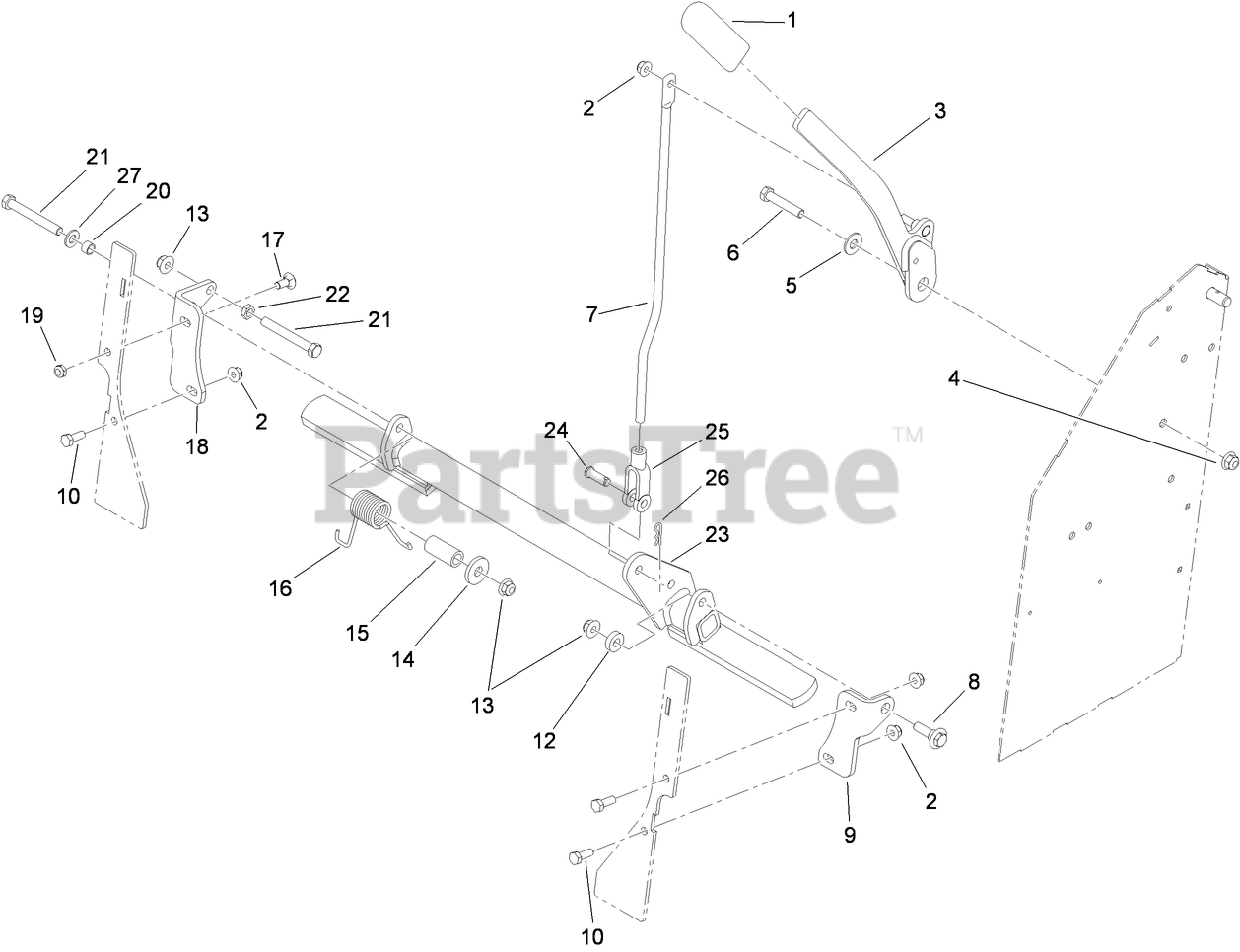

Parking Brake Assembly Parts Diagram

  • Title

1

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 119-1861-01

HANDLE-BRAKE

$96.99

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 117-6199

ROD-LINK, BRAKE

$42.99

$

Usually ships in 3-6 days

0

8

Toro 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 2 left!

0

9

Toro 119-1860-01

BRACKET-BRAKE MOUNT, LH

$25.99

$

Usually ships in 3-6 days

0

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

12

Toro 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Toro 117-9683

SPACER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 117-6198-01

BRACKET-BRAKE MOUNT, RH

$

$

Not available

19

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

20

Toro 117-9684

SPACER

$6.49

$

Usually ships in 3-6 days

0

21

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

22

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

23

Toro 117-6197-03

BRAKE ASM

$

$

Not available

24

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

25

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

26

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
