74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 417999999) 36 Inch Deck Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

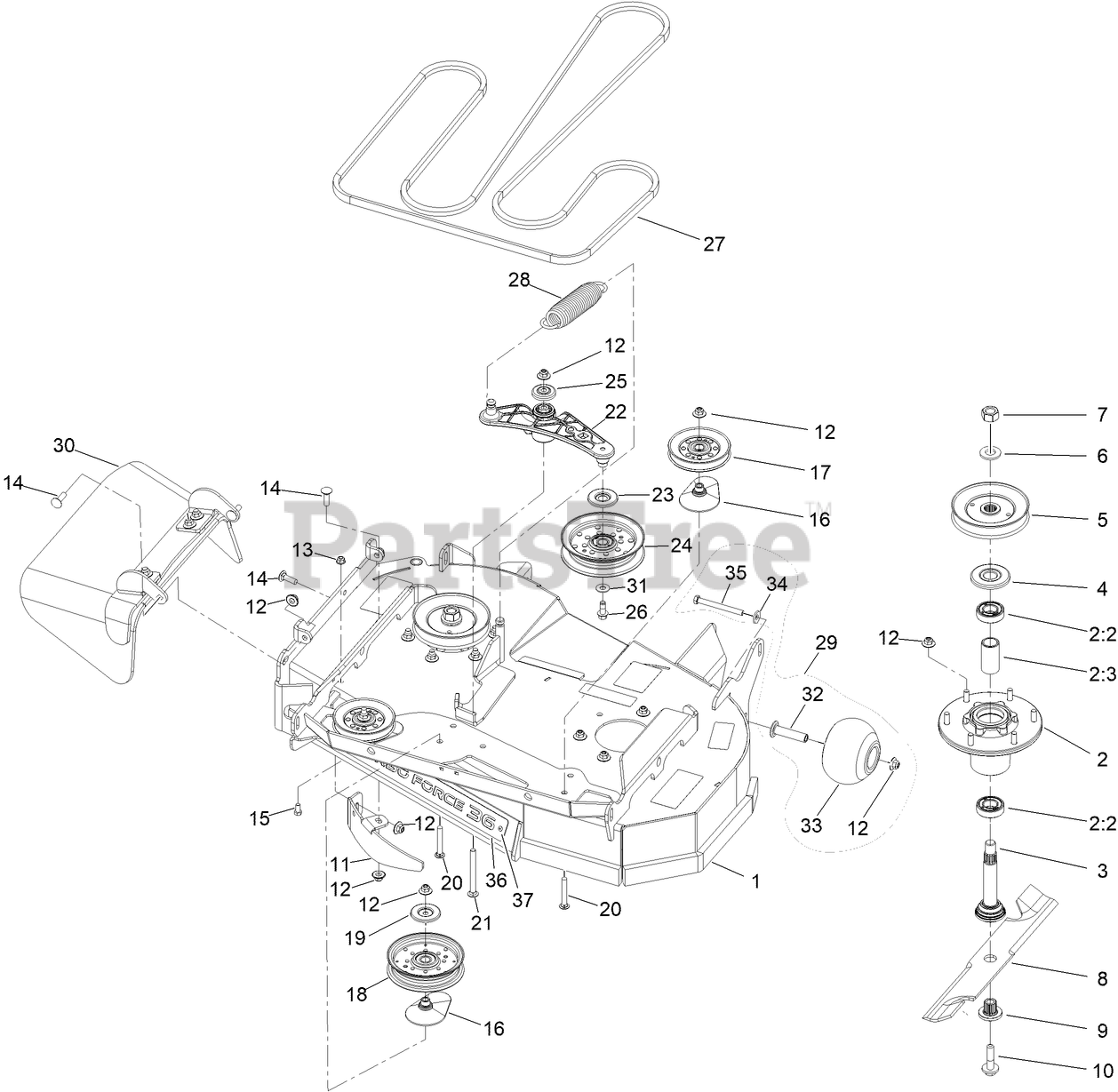

36 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 161-6759

ASM-DECK W/DECALS

$1662.99

$

Usually ships in 3-6 days

0

2

Toro 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Toro 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Toro 116-3342

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, only 2 left!

0

4

Toro 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

5

Toro 135-4809

SHEAVE-BLADE DRIVE

$37.99

$

In Stock, only 2 left!

0

6

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

7

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

8

Toro 146-3411

BLADE-HIGH FLOW

$30.99

$

Usually ships in 3-6 days

0

9

Toro 103-3037

Bushing, Splined

$25.99

$

In Stock, Qty 20+

0

10

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

11

Toro 126-2783-01

BAFFLE, DOGLEG

$55.99

$

Usually ships in 3-6 days

0

12

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

17

Toro 135-4398

IDLER - V 4.13 EOD-A

$37.99

$

In Stock, only 2 left!

0

18

Toro 126-9187

PULLEY-IDLER, FLAT

$66.99

$

In Stock, only 2 left!

0

19

Toro 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

20

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

21

Toro 135-0313

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

22

Toro 135-1679

ASM.-ARM, IDLER

$136.99

$

In Stock, only 1 left!

0

23

Toro 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

24

Toro 126-9196

IDLER-PULLEY, FLAT

$67.99

$

In Stock, Qty 11

0

25

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

26

Toro 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 18

0

27

Toro 135-3214

BELT-V

$225.99

$

In Stock, only 1 left!

0

28

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

29

Toro 116-9981

KIT, ANTI-SCALP ROLLER

$56.99

$

In Stock, Qty 20+

0

30

Toro 135-2160

RUBBER DEFLECTOR ASM

$197.99

$

Usually ships in 3-6 days

0

31

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Toro 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

33

Toro 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Toro 116-9362

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 161-3535-03

PLATE-BADGE [BLACK]

$25.99

$

Usually ships in 3-6 days

0

37

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0
