74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 417999999) Deck Lift Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

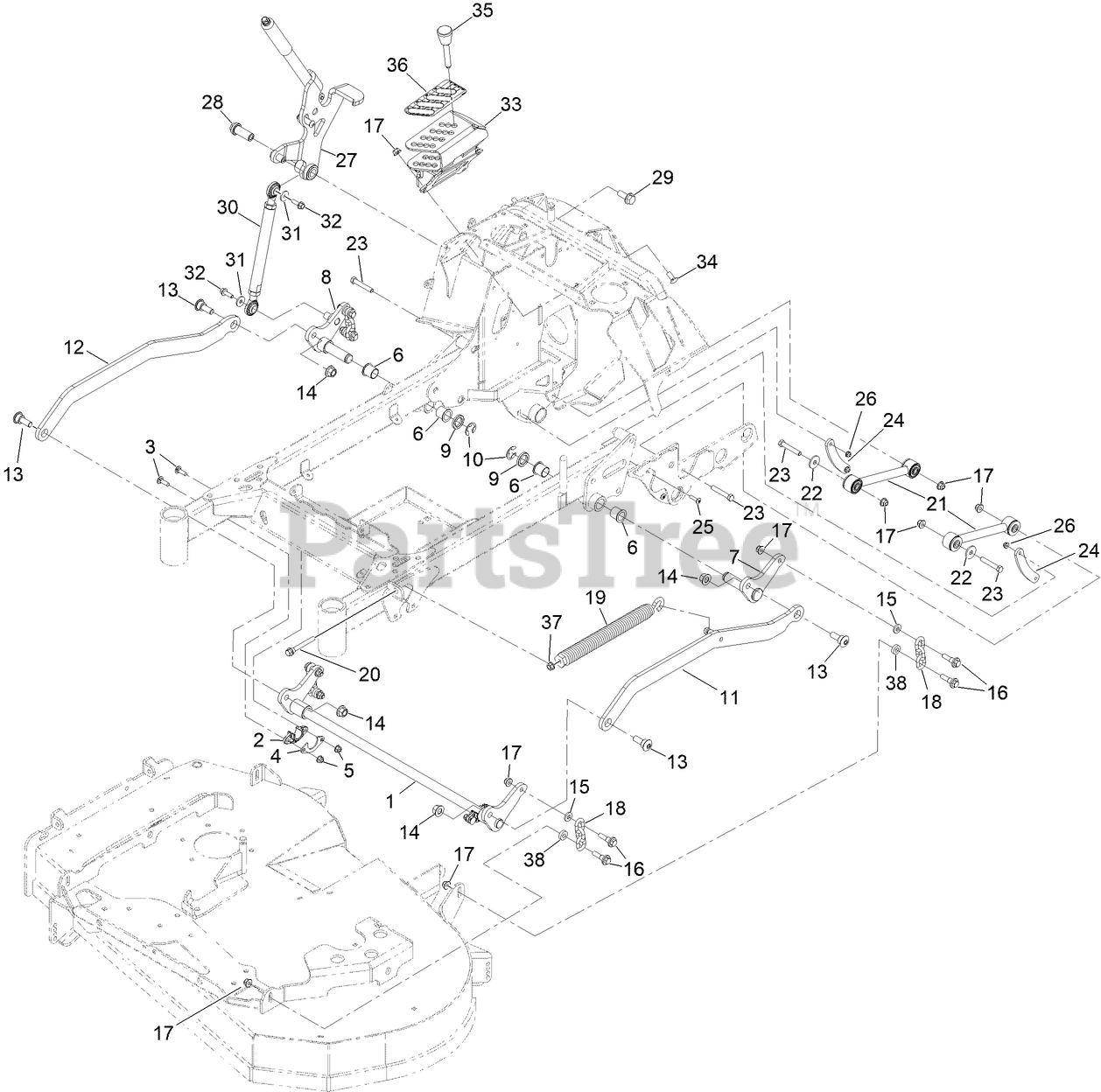

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 142-2566-03

WELD, HOC LIFT SHAFT

$213.99

$

Usually ships in 3-6 days

0

2

Toro 139-5872

BEARING-FLANGE

$1.99

$

In Stock, Qty 6

0

3

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 116-2887

GUSSET-LIFT, DECK

$5.99

$

In Stock, Qty 20+

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 135-1248

BUSHING, IGUS

$5.99

$

In Stock, Qty 15

0

7

Toro 142-4524-03

WELD, BELLCRANK, LT RR

$142.99

$

Usually ships in 3-6 days

0

8

Toro 142-2570-03

WELD, BELLCRANK, RT RR

$156.99

$

Usually ships in 3-6 days

0

9

Toro 142-3444

SPACER, HOC PIVOT

$5.99

$

Usually ships in 3-6 days

0

10

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

11

Toro 142-4521-03

WELD, LIFT STRAP, LT

$79.99

$

Usually ships in 3-6 days

0

12

Toro 142-4522-03

STRAP, LIFT RT

$79.99

$

Usually ships in 3-6 days

0

13

Toro 135-1259

BOLT, SHOULDER

$17.99

$

In Stock, Qty 6

0

14

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

15

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

16

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 103-9859

CHAIN-DECKLIFT

$7.99

$

In Stock, only 2 left!

0

19

Toro 116-0886

SPRING-EXTENSION

$153.99

$

In Stock, only 1 left!

0

20

Toro 92-7674

BOLT-SHOULDER

$3.49

$

In Stock, Qty 6

0

21

Toro 142-2588

ASM, STRUT W/ BUSHINGS

$34.99

$

In Stock, Qty 5

0

22

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

23

Toro 104-3396

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

24

Toro 142-2772

STRIP, RUB

$16.99

$

Usually ships in 3-6 days

0

25

Toro 32105-32

SCREW-TTH

$1.49

$

In Stock, only 2 left!

0

26

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 142-2579

ASM, HOC LEVER

$149.99

$

Usually ships in 3-6 days

0

28

Toro 142-2181

PIVOT, HOC LEVER

$16.99

$

Usually ships in 3-6 days

0

29

Toro 3234-38

SCREW-HHF

$6.99

$

In Stock, only 3 left!

0

30

Toro 142-2581

ASM, LIFT ROD

$130.99

$

Usually ships in 3-6 days

0

31

Toro 1-603716

WASHER-FRICTION

$5.99

$

In Stock, Qty 20+

0

32

Toro 115-5142

SCREW-HHF

$10.99

$

In Stock, only 2 left!

0

33

Toro 146-3498-03

WELD, HOC INDEX

$174.99

$

Usually ships in 3-6 days

0

34

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

35

Toro 126-5401

PIN-HOC

$25.99

$

In Stock, only 2 left!

0

36

Toro 142-3087

DECAL-HEIGHT OF CUT

$16.99

$

Usually ships in 3-6 days

0

37

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Toro 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0
