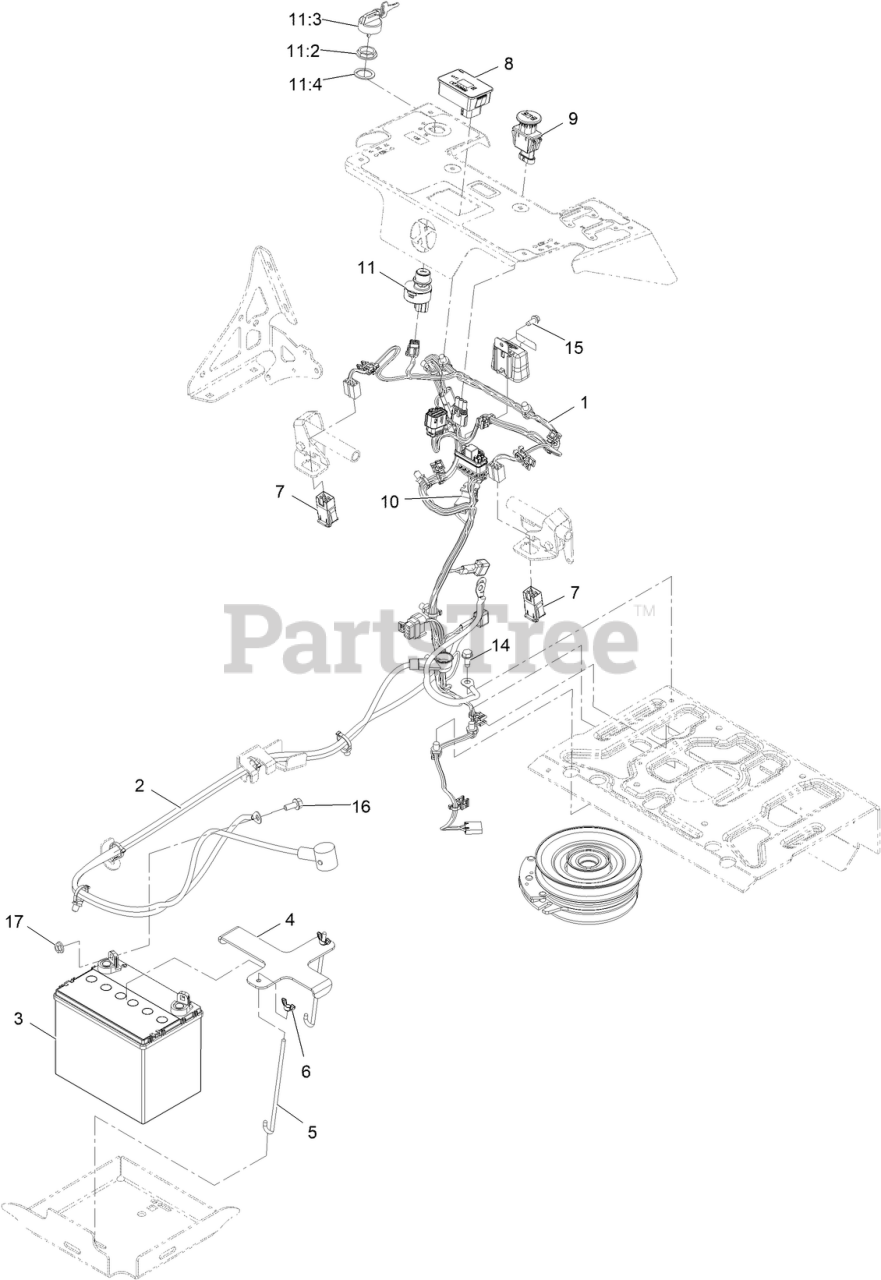

74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 417999999) Electrical Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 142-2926

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$358.99

$

Usually ships in 3-6 days

0

2

Toro 135-2255

HARNESS-BATTERY

$128.99

$

Usually ships in 3-6 days

0

3

Toro 99-7421

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

4

Toro 135-2056

BRACKET, BATTERY HOLD DOWN

$29.99

$

In Stock, only 1 left!

0

5

Toro 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

6

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

7

Toro 104-3338

SWITCH-DELTA

$59.99

$

In Stock, Qty 8

0

8

Toro 135-7189

MODULE-HOUR METER

$232.99

$

In Stock, only 1 left!

0

9

Toro 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

10

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

11

Toro 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

11:2

Toro 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

11:3

Toro 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 1 left!

0

11:4

Toro 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

14

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

17

Toro 32128-20

NUT-HF

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0
