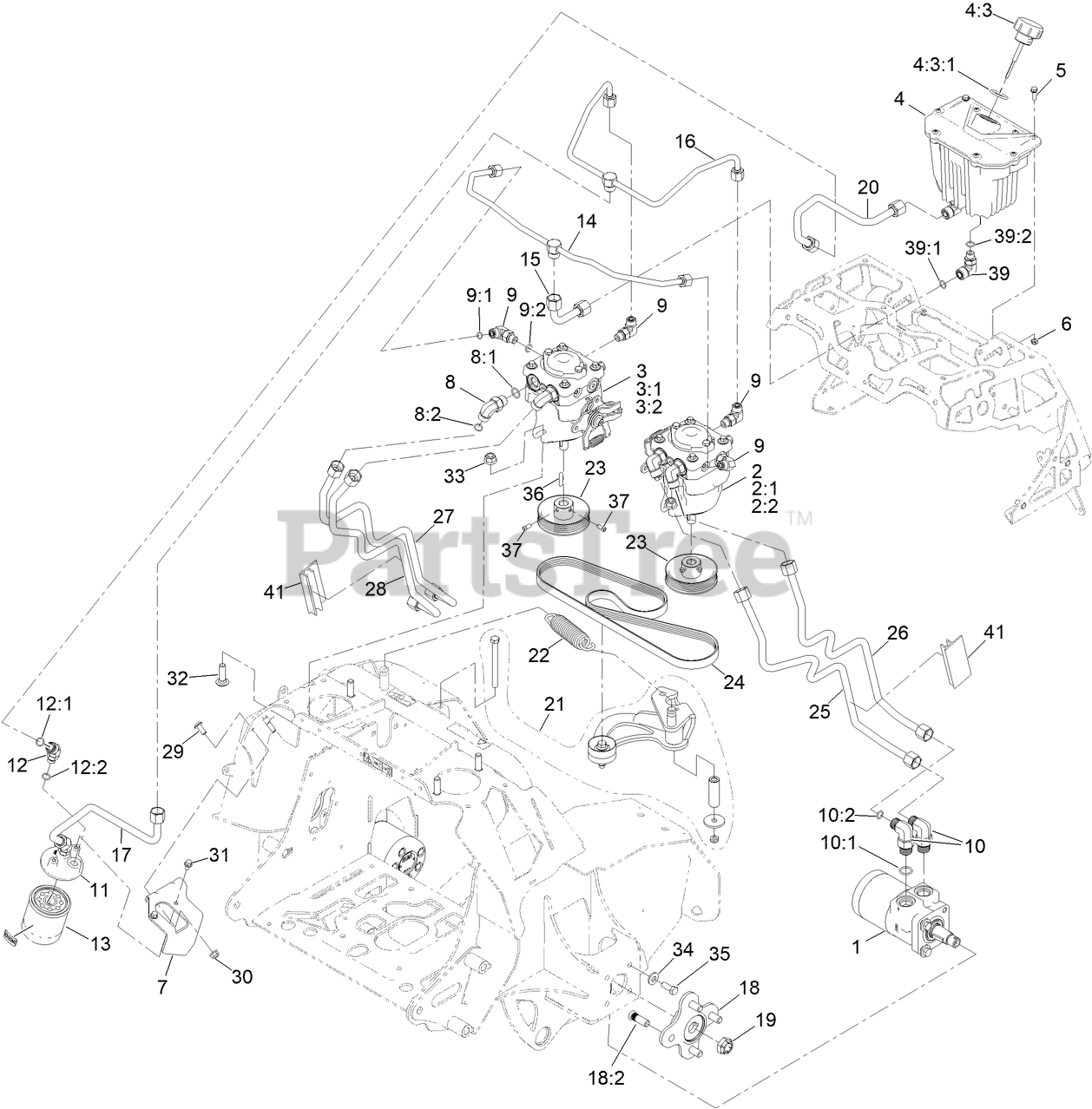

74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 417999999) Hydraulic Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 135-1274

MOTOR-WHEEL

$969.99

$

Usually ships in 3-6 days

0

2

Toro 135-2212

PUMP-HYDRAULIC 10CC

$1320.99

$

Usually ships in 3-6 days

0

2:1

Toro 126-2479

KIT, 10CC/12CC PUMP KIT

$455.99

$

Usually ships in 3-6 days

0

2:2

Toro 105-6184

SEAL OVERHAUL KIT

$101.99

$

In Stock, Qty 9

0

3

Toro 135-2211

PUMP-HYDRAULIC 10CC

$1320.99

$

Usually ships in 3-6 days

0

3:1

Toro 126-2479

KIT, 10CC/12CC PUMP KIT

$455.99

$

Usually ships in 3-6 days

0

3:2

Toro 105-6184

SEAL OVERHAUL KIT

$101.99

$

In Stock, Qty 9

0

4

Toro 161-6800

HYDRAULIC RESERVOIR ASM

$193.99

$

Usually ships in 3-6 days

0

4:3

Toro 142-2793

CAP, HYDRAULIC

$30.99

$

Usually ships in 3-6 days

0

4:3:1

Toro 142-2792

O-RING

$1.49

$

In Stock, Qty 20+

0

5

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 142-2592-03

MOUNT, FILTER

$26.99

$

Usually ships in 3-6 days

0

8

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

8:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

8:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

9

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

9:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

10

Toro 340-105

FITTING-ELBOW, 90 DEG

$47.99

$

In Stock, only 2 left!

0

10:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

10:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

11

Toro 103-2888

HEAD-FILTER

$99.99

$

Usually ships in 3-6 days

0

12

Toro 340-96

ADAPTER

$45.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

12:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$18.99

$

In Stock, Qty 11

0

14

Toro 135-7056

LINE, HYDRAULIC, CASE TEE

$104.99

$

Usually ships in 3-6 days

0

15

Toro 135-7054

LINE, HYDRAULIC, CASE

$49.99

$

Usually ships in 3-6 days

0

16

Toro 135-7055

LINE, HYDRAULIC, CHARGE TEE

$104.99

$

Usually ships in 3-6 days

0

17

Toro 142-2594

LINE, HYD. CHARGE

$88.99

$

Usually ships in 3-6 days

0

18

Toro 135-1621

ASM-HUB AND STUDS

$59.99

$

Usually ships in 3-6 days

0

18:2

Toro 116-1696

STUD-WHEEL

$4.49

$

In Stock, Qty 20+

0

19

Toro 116-2839

NUT-LOCK

$12.99

$

In Stock, only 2 left!

0

20

Toro 142-2593

LINE, HYD. SUPPLY

$88.99

$

Usually ships in 3-6 days

0

21

Toro 135-1270

ASM, IDLER ARM

$115.99

$

In Stock, only 3 left!

0

22

Toro 135-1272

SPRING, EXTENSION

$18.99

$

In Stock, Qty 9

0

23

Toro 142-2968

PULLEY, PVK5

$

$

Not available

24

Toro 146-4642

BELT PVK5

$39.99

$

In Stock, Qty 10

0

25

Toro 142-5632

KIT-STE HYD LINE LT REAR B-A

$182.99

$

Usually ships in 3-6 days

0

26

Toro 142-5633

KIT-STE HYD LINE LT FRNT A-B

$182.99

$

Usually ships in 3-6 days

0

27

Toro 142-5634

KIT-STE HYD LINE RT REAR B-B

$182.99

$

Usually ships in 3-6 days

0

28

Toro 142-5635

KIT-STE HYD LINE RT FRNT A-A

$182.99

$

Usually ships in 3-6 days

0

29

Toro 126-6268

SCREW-TORX

$1.99

$

In Stock, only 2 left!

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 3234-13

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

32

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

33

Toro 114-8417

NUT-HF, NI

$2.99

$

In Stock, Qty 14

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 135-7971

KEY

$2.99

$

In Stock, only 2 left!

0

37

Toro 3241-7

SCREW-SQH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$4.49

$

In Stock, only 2 left!

0

39

Toro 340-99

FITTING-HYD, 90 DEG

$42.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

39:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

41

Toro 142-4399

SPACER-HYDRAULIC TUBE

$5.99

$

Usually ships in 3-6 days

0

99

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$101.99

$

In Stock, Qty 9

0

99

Toro 126-2479

KIT, 10CC/12CC PUMP KIT

Note: Not illustrated

$455.99

$

Usually ships in 3-6 days

0

99

Toro 133-1779

USE 1-000119
(Superseded to 1-000119)

Note: Not illustrated

$242.99

$

In Stock, only 1 left!

0
