74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 417999999) Motion Control Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

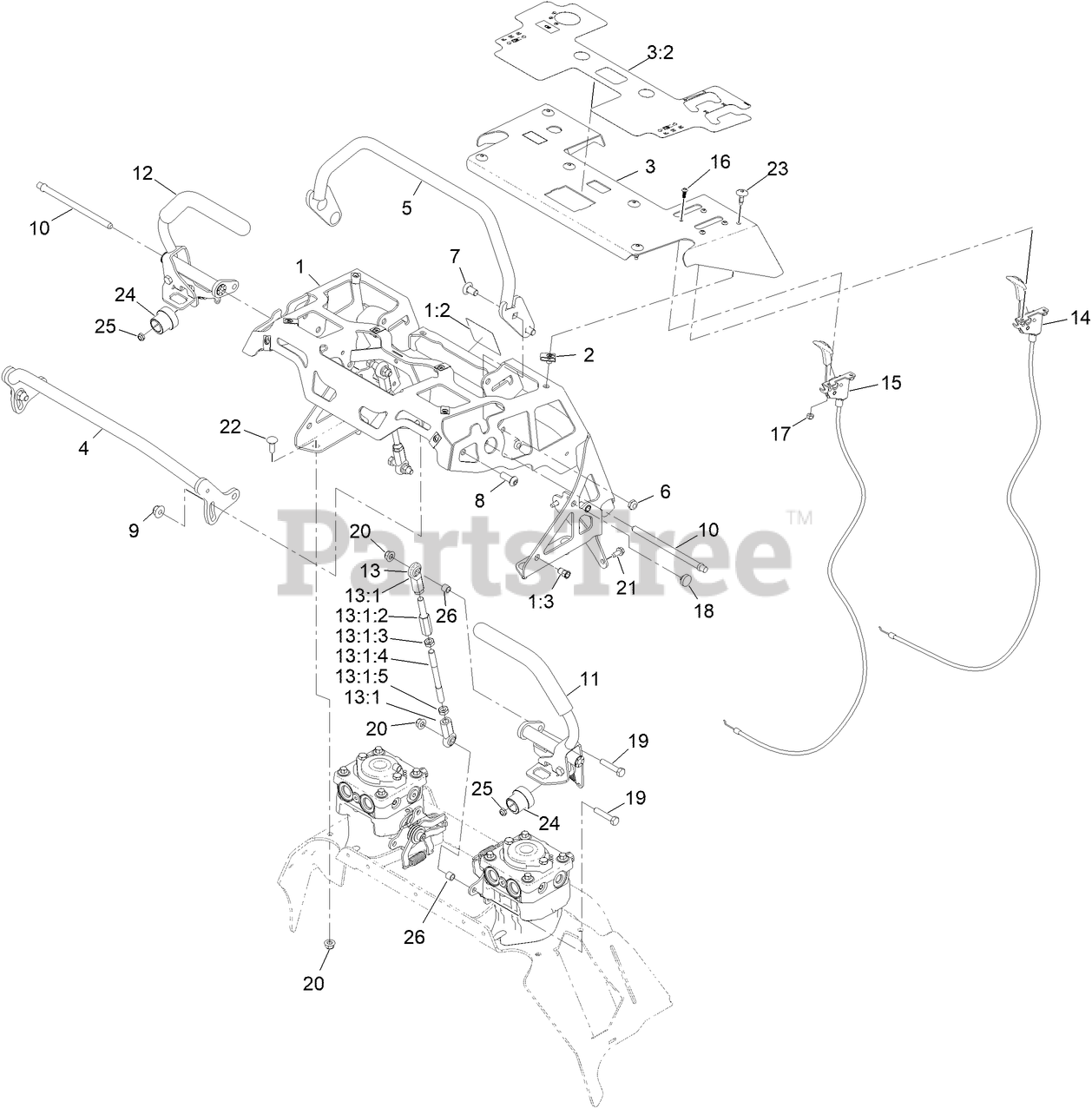

Motion Control Assembly Parts Diagram

  • Title

1

Toro 146-2939

ASM-CTRL TOWER

$518.99

$

Usually ships in 3-6 days

0

1:2

Toro 142-3077

DECAL-HYD FLUID WARN

$6.49

$

Usually ships in 3-6 days

0

1:3

Toro 138-2758

NUT-CLINCH,HEX

$1.99

$

Usually ships in 3-6 days

0

2

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

3

Toro 146-2936

ASM, CONTROL PANEL W/ DECALS

$151.99

$

Usually ships in 3-6 days

0

3:2

Toro 135-6773

DECAL-CONTROL PANEL NON-EFI

$39.99

$

Usually ships in 3-6 days

0

4

Toro 135-3432-05

WELD, FRONT REF BAR

$44.99

$

Usually ships in 3-6 days

0

5

Toro 135-3430-05

WELD, REAR REF BAR

$44.99

$

Usually ships in 3-6 days

0

6

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

7

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

8

Toro 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 135-1277

PIN, PIVOT

$20.99

$

Usually ships in 3-6 days

0

11

Toro 135-1304

ASM, MOTION CONTROL, LT

$113.99

$

Usually ships in 3-6 days

0

12

Toro 135-1305

ASM, MOTION CONTROL, RT

$113.99

$

Usually ships in 3-6 days

0

13

Toro 135-7116

ASM, LINKAGE

$59.99

$

In Stock, only 2 left!

0

13:1

ASM, MOTION CONTROL LINK

Note: Not serviced separately

$

$

Not available

13:1:2

Toro 116-4755

ROD-ADJUSTMENT

$55.99

$

Usually ships in 3-6 days

0

13:1:3

Toro 3220-16

NUT-HEX JAM, LH

$2.49

$

In Stock, only 2 left!

0

13:1:4

Toro 135-1291

LINK, MOTION CONTROL

$

$

Not available

13:1:5

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

14

Toro 135-2168

CONTROL, CHOKE

$37.99

$

In Stock, only 2 left!

0

15

Toro 135-2169

CONTROL, THROTTLE

$37.99

$

In Stock, Qty 12

0

16

Toro 135-3176

SCREW, BHCS

$2.99

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

19

Toro 322-8

SCREW-HH

$3.99

$

In Stock, Qty 6

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

22

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

23

Toro 135-3494

SCREW, TORX

$2.99

$

In Stock, Qty 5

0

24

Toro 126-1499

CAM

$8.49

$

Usually ships in 3-6 days

0

25

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0
