74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 417999999) Platform Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

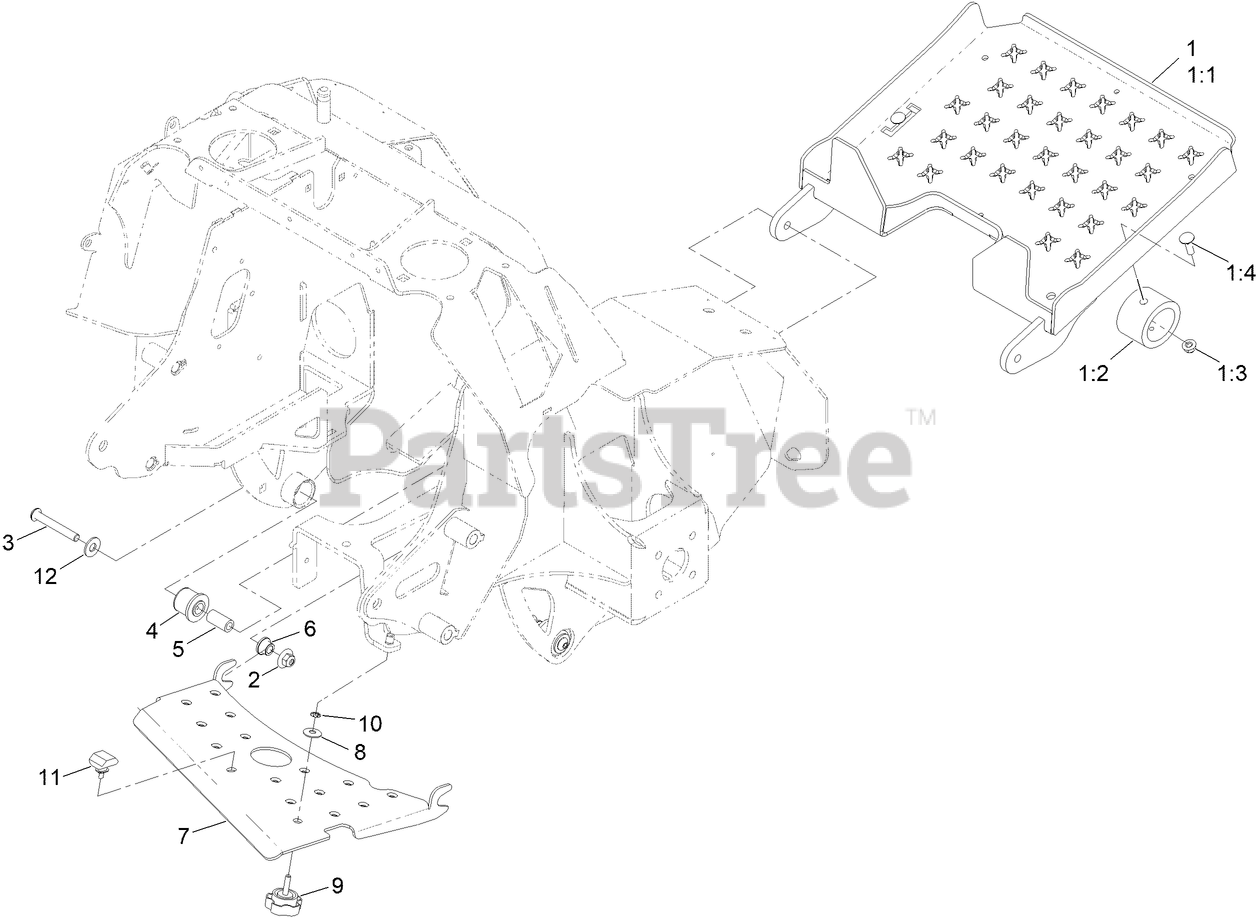

Platform Assembly Parts Diagram

  • Title

1

Toro 142-2710

ASM-PLATFORM

$359.99

$

Usually ships in 3-6 days

0

1:1

Toro 142-2470-05

WELD-PLATFORM [BLK-TXT]

$311.99

$

Usually ships in 3-6 days

0

1:2

Toro 135-2548

BUMPER-ISOLATOR

$21.99

$

Usually ships in 3-6 days

0

1:3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

1:4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 135-7158

SCREW-HSBH

$5.99

$

Usually ships in 3-6 days

0

4

Toro 126-8360

BUSHING-RUBBER, SUSPENSION

$2.99

$

In Stock, Qty 20+

0

5

Toro 108-6544

SPACER

$14.99

$

In Stock, Qty 20+

0

6

Toro 109-8788

BUSHING-FLANGED

$7.49

$

In Stock, Qty 20+

0

7

Toro 142-2590-03

DEFLECTOR, AIR, 36

$90.99

$

Usually ships in 3-6 days

0

8

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

9

Toro 135-7382

KNOB

$5.99

$

Usually ships in 3-6 days

0

10

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

11

Toro 126-9966

BUMPER-ROPS

$2.99

$

In Stock, only 1 left!

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
