74536 TE - Toro 102cm GrandStand Stand-On Mower (SN: 413000000 - 417999999) Main Frame Assembly Parts Diagram

102cm GrandStand Stand-On Mower

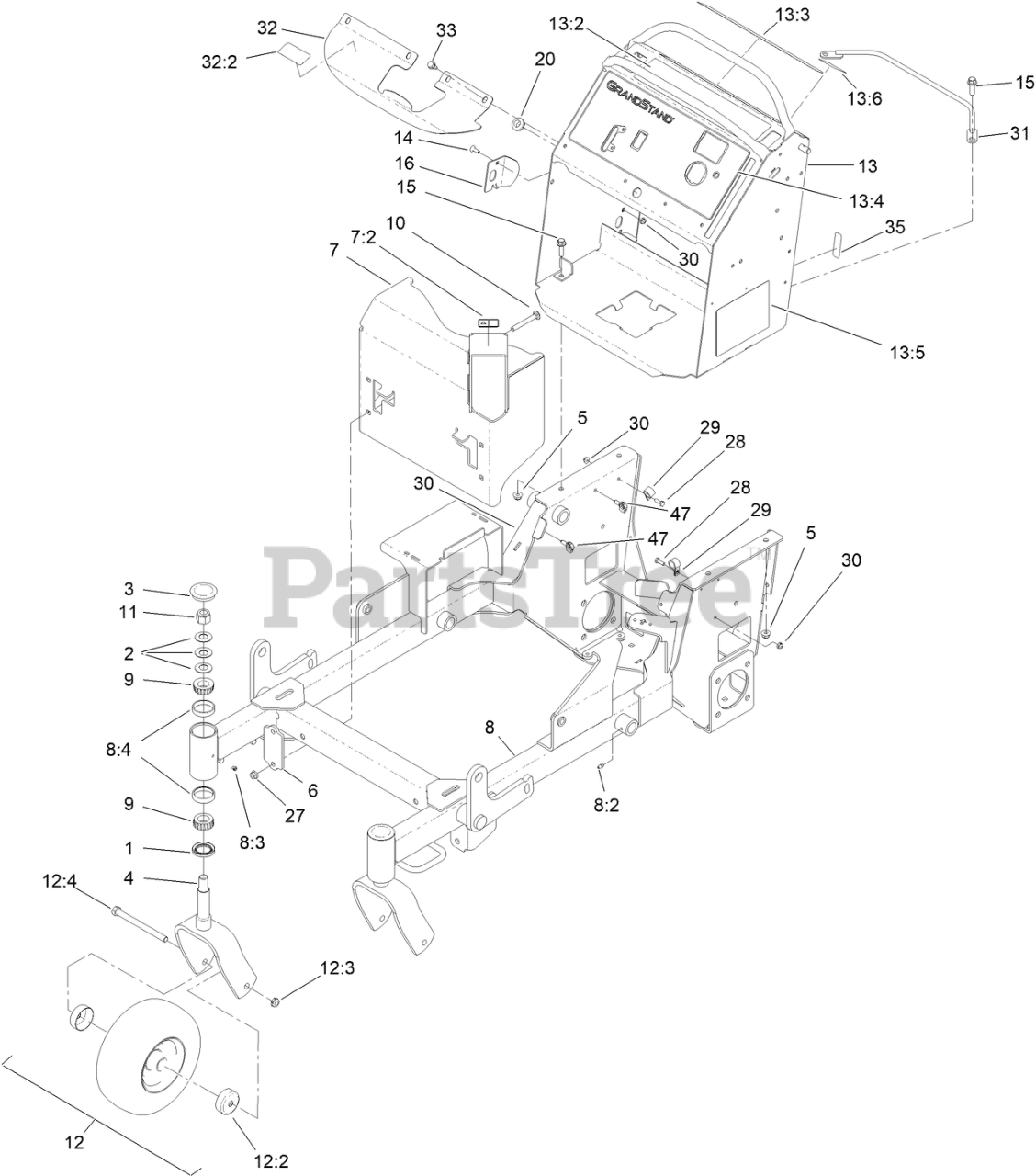

Main Frame Assembly Parts Diagram

  • Title

1

Toro 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

2

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

4

Toro 121-7988-01

FORK-CASTER
(Superseded to 147-6343-01)

$201.99

$

In Stock, only 2 left!

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 119-7303-01

BRACKET-MOUNTING, GUARD

$14.99

$

Usually ships in 3-6 days

0

7

Toro 116-8739

MUFFLER GUARD ASM

$294.99

$

Usually ships in 3-6 days

0

7:2

Toro 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

8

Toro 125-4655

FRAME ASM

$2023.99

$

Usually ships in 3-6 days

0

8:2

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

8:3

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

8:4

Toro 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

9

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

10

Toro 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

11

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

12

Toro 140-1890

WHEEL, TIRE AND BEARING ASM

$299.99

$

In Stock, only 3 left!

0

12:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

12:3

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

12:4

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 14

0

13

Toro 125-4676

CONTROL TOWER ASM

$883.99

$

Usually ships in 3-6 days

0

13:2

Toro 117-0454

DECAL-OPC

$45.99

$

Usually ships in 3-6 days

0

13:3

Toro 139-2878

DECAL-WARNING

$8.49

$

Usually ships in 3-6 days

0

13:4

Toro 125-4679

DECAL-PANEL, CONTROL

$59.99

$

Usually ships in 3-6 days

0

13:5

Toro 119-0241

DECAL-SERVICE AID

$25.99

$

Usually ships in 3-6 days

0

13:6

Toro 133-4665

DECAL-STABILITY, CE

$11.99

$

Usually ships in 3-6 days

0

14

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

16

Toro 119-7312

PLATE-STRIKER

$25.99

$

Usually ships in 3-6 days

0

20

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

30

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 119-1878-03

RETAINER-CABLE

$50.99

$

Usually ships in 3-6 days

0

32

Toro 119-0239

COVER-TANK

$86.99

$

Usually ships in 3-6 days

0

32:2

Toro 116-8775

DECAL-FILL, FUEL

$10.99

$

In Stock, only 1 left!

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

35

Toro 116-8772

DECAL-FUSE

$9.49

$

Usually ships in 3-6 days

0

47

Toro 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0
