74540 TE - Toro 91cm GrandStand Stand-On Mower (SN: 413000000 - 417999999) Fuel Tank Assembly Parts Diagram

91cm GrandStand Stand-On Mower

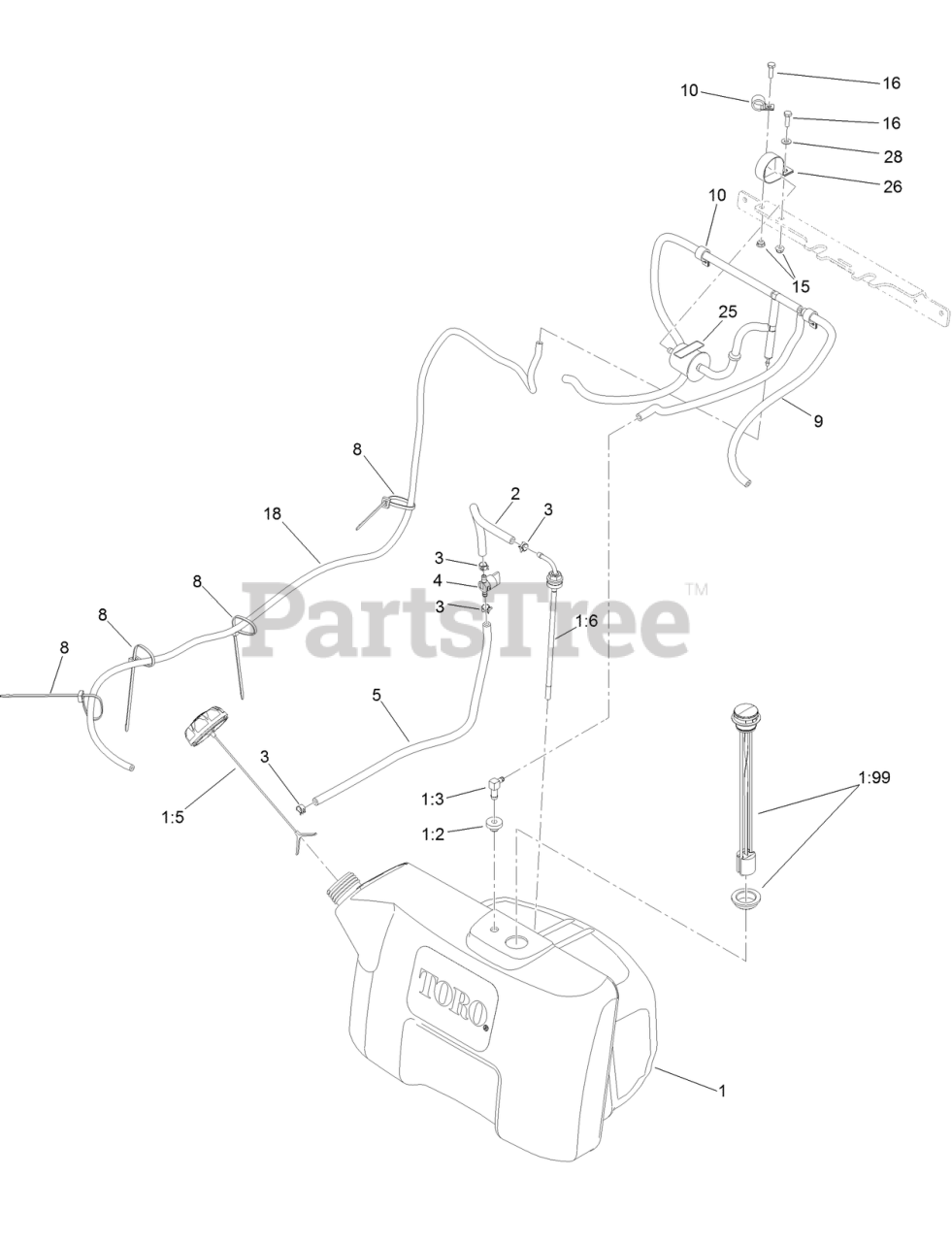

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 135-0650

TANK ASM

$580.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:3

Toro 1-643172

ELBOW-90 DEG

$12.99

$

In Stock, Qty 7

0

1:5

Toro 126-1789

CAP-FUEL, RATCHETING

$42.99

$

In Stock, Qty 5

0

1:6

Toro 116-3408

FITTING-FUEL, BULKHEAD

$50.99

$

Usually ships in 3-6 days

0

1:99

Toro 126-6924

FUEL GAGE REPLACEMENT KIT

$181.99

$

Usually ships in 3-6 days

0

2

Toro 109-0297

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

3

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

4

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

5

Toro 109-0301

HOSE-FUEL

$14.99

$

In Stock, only 1 left!

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

10

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 110-4102

HOSE-FUEL

$52.99

$

Usually ships in 3-6 days

0

25

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 2 left!

0

26

Toro 2412-96

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
