74542 TE - Toro 122cm GrandStand Stand-On Mower (SN: 400000000 - 999999999) Deck Assembly Parts Diagram

122cm GrandStand Stand-On Mower

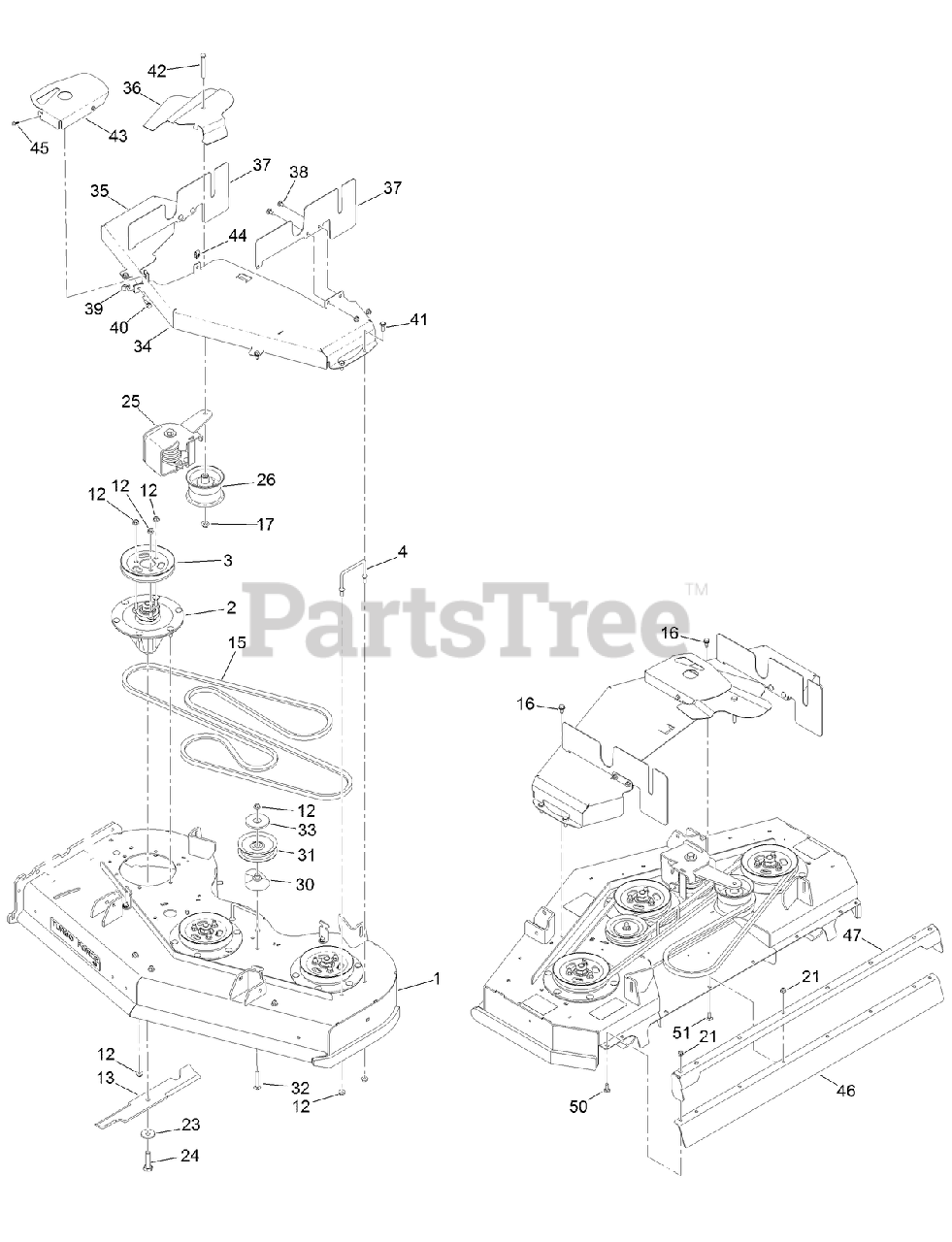

Deck Assembly Parts Diagram

  • Title

1

Toro 134-3658

DECK AND DECAL ASM

$

$

Currently unavailable

2

Toro 127-0560

SPINDLE ASM

$593.99

$

In Stock, Qty 5

0

3

Toro 120-6433

PULLEY

$49.99

$

In Stock, only 2 left!

0

4

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 107-3195-03

BLADE-ROTARY, 16.5 INCH (ATOMIC)

$43.99

$

Usually ships in 3-6 days

0

15

Toro 131-1121

BELT-V
(Superseded to 145-3481)

$

$

Not available

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

24

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

25

Toro 136-7395

IDLER TORSION ASM
(Superseded to 145-3450)

$262.99

$

In Stock, only 4 left!

0

26

Toro 127-1971

PULLEY-IDLER

$143.99

$

In Stock, only 1 left!

0

30

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

31

Toro 132-4718

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

0

32

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

33

Toro 132-5154

SHIELD-DUST

$15.99

$

In Stock, only 2 left!

0

34

Toro 136-7422-01

COVER-BELT, LH, CE

$155.99

$

Usually ships in 3-6 days

0

35

Toro 136-7423-01

COVER-BELT, RH CE

$111.99

$

Usually ships in 3-6 days

0

36

Toro 136-7421-01

COVER-IDLER, CE

$99.99

$

Usually ships in 3-6 days

0

37

Toro 133-4642-01

COVER-SIDE, LH (CE)

$

$

Currently unavailable

38

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

39

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

40

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

41

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

42

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

43

Toro 136-7424-01

COVER-IDLER, CE

$93.99

$

Usually ships in 3-6 days

0

44

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

45

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

46

Toro 134-2542

DEFLECTOR
(Superseded to 161-3558)

$46.99

$

Usually ships in 3-6 days

0

47

Toro 134-3728-01

BRACKET-DEFLECTOR

$

$

Currently unavailable

50

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

51

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0
