74549 - Toro 52" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) Fuel Tank Assembly Parts Diagram

52" GrandStand Stand-On Mower

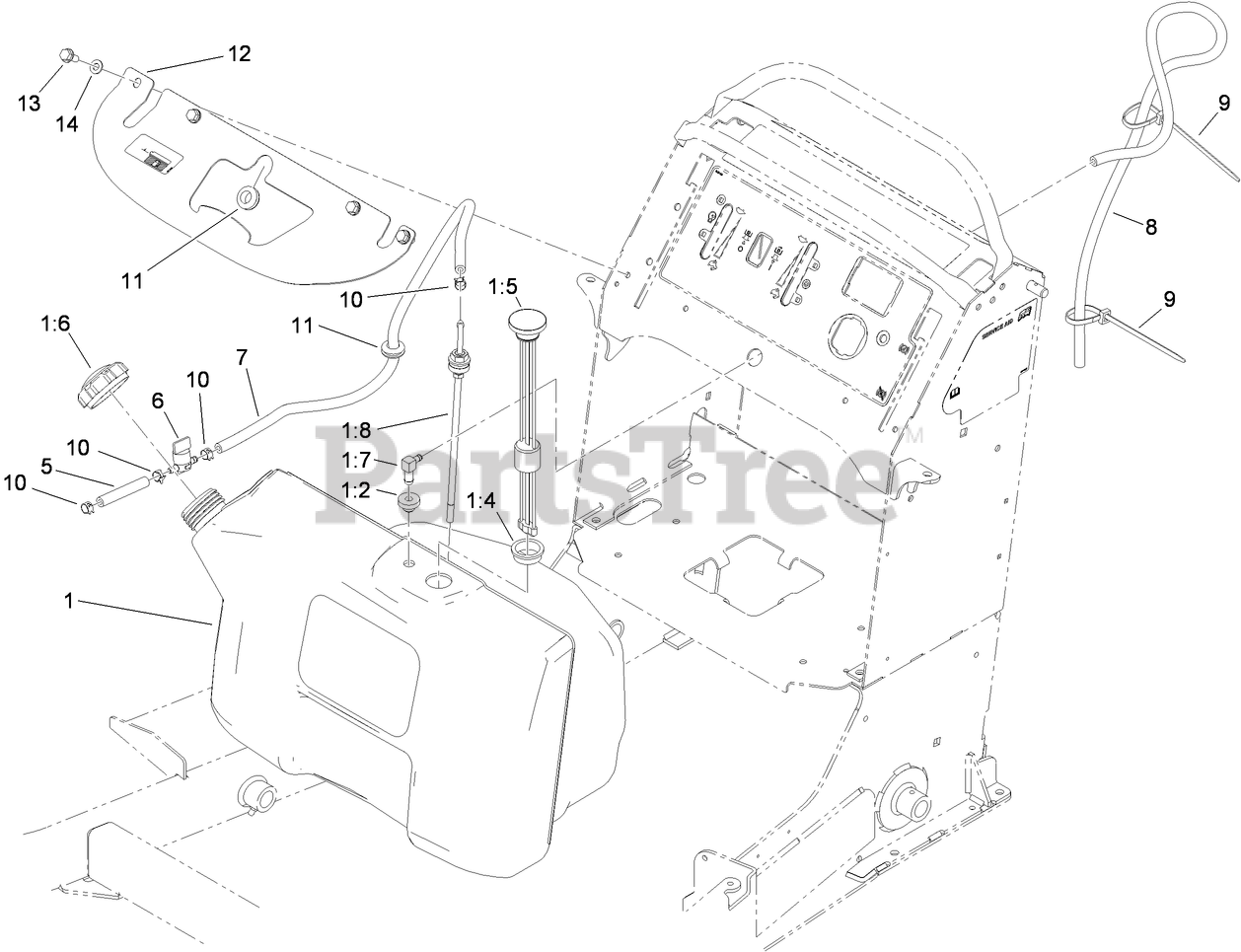

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 119-7295

See Supercession: 120-6420
(Superseded to 120-6420)

$

$

Not available

1:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:4

Toro 95-8972

GROMMET

$12.99

$

In Stock, only 4 left!

0

1:5

Toro 117-9719

GUAGE-FUEL

$192.99

$

Usually ships in 3-6 days

0

1:6

Toro 109-9619

CAP-FUEL

$77.99

$

Usually ships in 3-6 days

0

1:7

Toro 1-643172

ELBOW-90 DEG

$12.99

$

In Stock, Qty 7

0

1:8

Toro 116-3408

FITTING-FUEL, BULKHEAD

$50.99

$

Usually ships in 3-6 days

0

5

Toro 114-3765

HOSE-FUEL

$5.49

$

In Stock, Qty 6

0

6

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

7

Toro 109-3491

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

8

Toro 110-3372

HOSE-FUEL

$36.99

$

Usually ships in 3-6 days

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

11

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

12

Toro 116-3125

BRACKET-TANK
(Superseded to 120-6462)

$83.99

$

Usually ships in 3-6 days

0

13

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

14

Toro 3256-70

WASHER-FLAT

$1.99

$

In Stock, Qty 7

0
