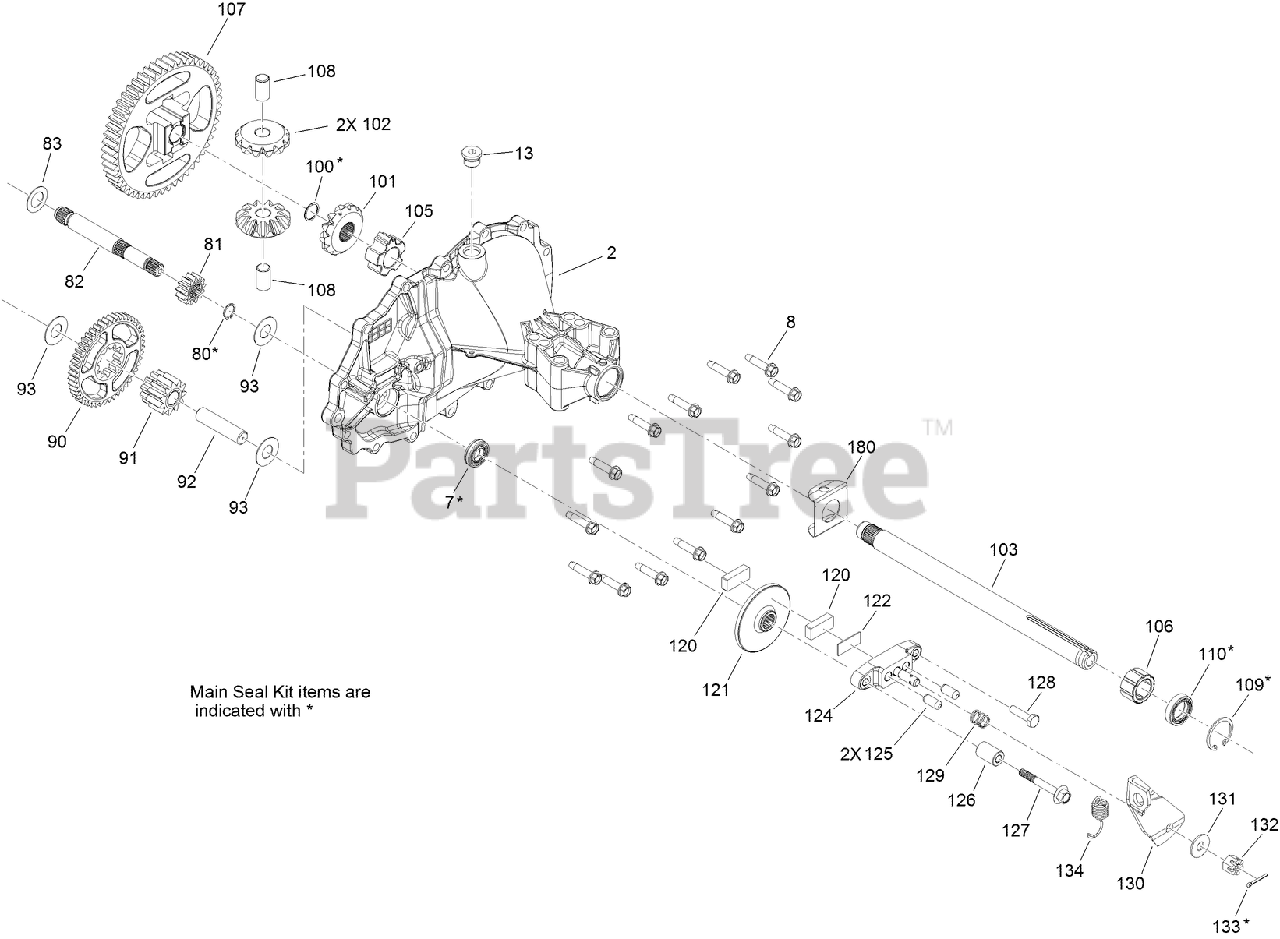

74560 (DH 140) - Toro Lawn Tractor (SN: 314000151 - 314999999) (2014) Side Housing Transmission Assembly No. 121-0999 Parts Diagram

Lawn Tractor

Side Housing Transmission Assembly No. 121-0999 Parts Diagram

  • Title

2

Toro 119-5538

HOUSING SIDE KIT

$

$

Currently unavailable

7

Toro 115-8335

SEAL-LIP

$13.99

$

Usually ships in 3-6 days

0

8

Toro 117-5359

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

13

Toro 104-2189

PLUG-THREAD, STRAIGHT

$29.99

$

In Stock, only 2 left!

0

80

Toro 115-8331

RING-RETAINING, EXTERNAL

$

$

Currently unavailable

81

Toro 119-5539

GEAR-PINION

$

$

Currently unavailable

82

Toro 115-8329

SHAFT-MOTOR

$

$

Currently unavailable

83

Toro 115-8328

WASHER

$

$

Currently unavailable

90

Toro 119-5540

GEAR

$

$

Currently unavailable

91

Toro 115-8333

GEAR-JACKSHAFT, 11T

$

$

Currently unavailable

92

Toro 115-8334

PIN-JACKSHAFT

$

$

Currently unavailable

93

Toro 119-5541

WASHER
(Superseded to 94-1933)

$7.49

$

Usually ships in 3-6 days

0

100

Toro 104-5328

RING-RETAINING, SPIRAL

$12.99

$

Usually ships in 3-6 days

0

101

Toro 115-8315

GEAR-BEVEL, 12T (SPLINE, ID)

$

$

Currently unavailable

102

Toro 115-8327

GEAR-BEVEL, 12T (.50 ID)

$

$

Currently unavailable

103

Toro 121-0968

SHAFT-AXLE, KEYED

$166.99

$

Usually ships in 3-6 days

0

105

Toro 115-8314

BUSHING-INBOARD

$9.49

$

Usually ships in 3-6 days

0

106

Toro 115-8304

BUSHING-OUTBOARD

$

$

Currently unavailable

107

Toro 115-8325

GEAR-53T, BULL

$

$

Currently unavailable

108

Toro 115-8326

PIN-DIFFERENTIAL

$

$

Currently unavailable

109

Toro 115-8303

RING-RETAINING, INTERNAL

$

$

Currently unavailable

110

Toro 119-5526

See Supercession: 121-0970
(Superseded to 121-0970)

$

$

Not available

120

Toro 104-2171

PUCK-BRAKE

$22.99

$

Usually ships in 3-6 days

0

121

Toro 115-8337

ROTOR-BRAKE

$

$

Currently unavailable

122

Toro 104-2181

PUCK-PLATE

$10.99

$

Usually ships in 3-6 days

0

124

Toro 104-5343

YOKE-BRAKE

$70.99

$

Usually ships in 3-6 days

0

125

Toro 104-2176

PIN-BRAKE

$11.99

$

Usually ships in 3-6 days

0

126

Toro 104-2180

SPACER

$9.49

$

Usually ships in 3-6 days

0

127

Toro 104-5345

SCREW-HF

$12.99

$

Usually ships in 3-6 days

0

128

Toro 115-8339

SCREW-HHCS

$

$

Currently unavailable

129

Toro 104-2188

SPRING-BRAKE, ANTI DRAG

$8.49

$

Usually ships in 3-6 days

0

130

Toro 119-5542

ARM-BRAKE

$54.99

$

Usually ships in 3-6 days

0

131

Toro 114-8491

WASHER

$5.99

$

Usually ships in 3-6 days

0

132

Toro 119-5543

NUT-CASTLE

$

$

Currently unavailable

133

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

134

Toro 115-8338

SPRING-BRAKE, ARM

$

$

Currently unavailable

180

Toro 119-5527

SPRING CLIP-HOUSING THRUST

$

$

Currently unavailable
