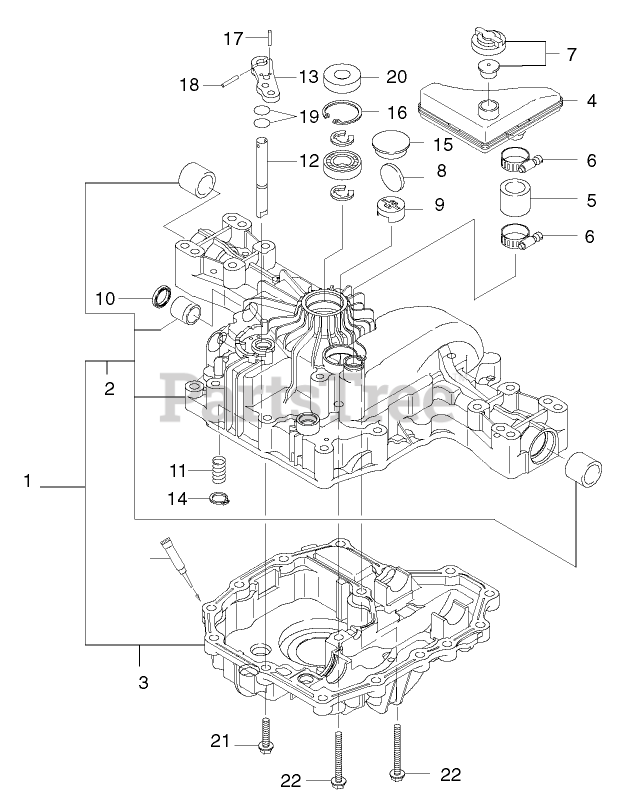

74570 (170-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) Transaxle Case Assembly Parts Diagram

Lawn Tractor

Transaxle Case Assembly Parts Diagram

  • Title

1

Toro 104-3251

TRANSAXLE CASE SET

$1470.99

$

Usually ships in 3-6 days

0

2

Toro 104-3252

HOUSING-UPPER

$1253.99

$

Usually ships in 3-6 days

0

3

Toro 104-3253

HOUSING-LOWER

$503.99

$

Usually ships in 3-6 days

0

4

Toro 104-2914

RESERVOIR TANK ASM WITH CAP

$

$

Currently unavailable

5

Toro 104-3254

TUBE

$18.99

$

Usually ships in 3-6 days

0

6

Toro 104-3255

CLAMP-MINIATURE

$14.99

$

Usually ships in 3-6 days

0

7

Toro 104-3256

VALVE-VENT, 15

$25.99

$

Usually ships in 3-6 days

0

8

Toro 104-3257

MAGNET

$19.99

$

Usually ships in 3-6 days

0

9

Toro 104-3258

HOLDER-MAGNET

$18.99

$

Usually ships in 3-6 days

0

10

Toro 104-3259

SEAL-OIL

$37.99

$

Usually ships in 3-6 days

0

11

Toro 93-0396

SPRING

$12.99

$

Usually ships in 3-6 days

0

12

Toro 104-3260

SHAFT-BYPASS

$167.99

$

Usually ships in 3-6 days

0

13

Toro 104-3261

LEVER-BYPASS

$44.99

$

Usually ships in 3-6 days

0

14

Toro 104-3262

RING

$3.99

$

Usually ships in 3-6 days

0

15

Toro 104-3263

PLUG-BORE

$29.99

$

Usually ships in 3-6 days

0

16

Toro 93-0360

RING

$11.99

$

Usually ships in 3-6 days

0

17

Toro 104-3264

PIN

$1.99

$

Usually ships in 3-6 days

0

18

Toro 104-3265

PIN

$3.49

$

Usually ships in 3-6 days

0

19

Toro 93-0419

PACKING

$

$

Not available

20

Toro 93-0361

SEAL

$50.99

$

Usually ships in 3-6 days

0

21

Toro 93-0363

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

22

Toro 104-3266

SCREW-TAP

$12.99

$

Usually ships in 3-6 days

0
