74632 (SS 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) Frame, Front Axle and Caster Wheel Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

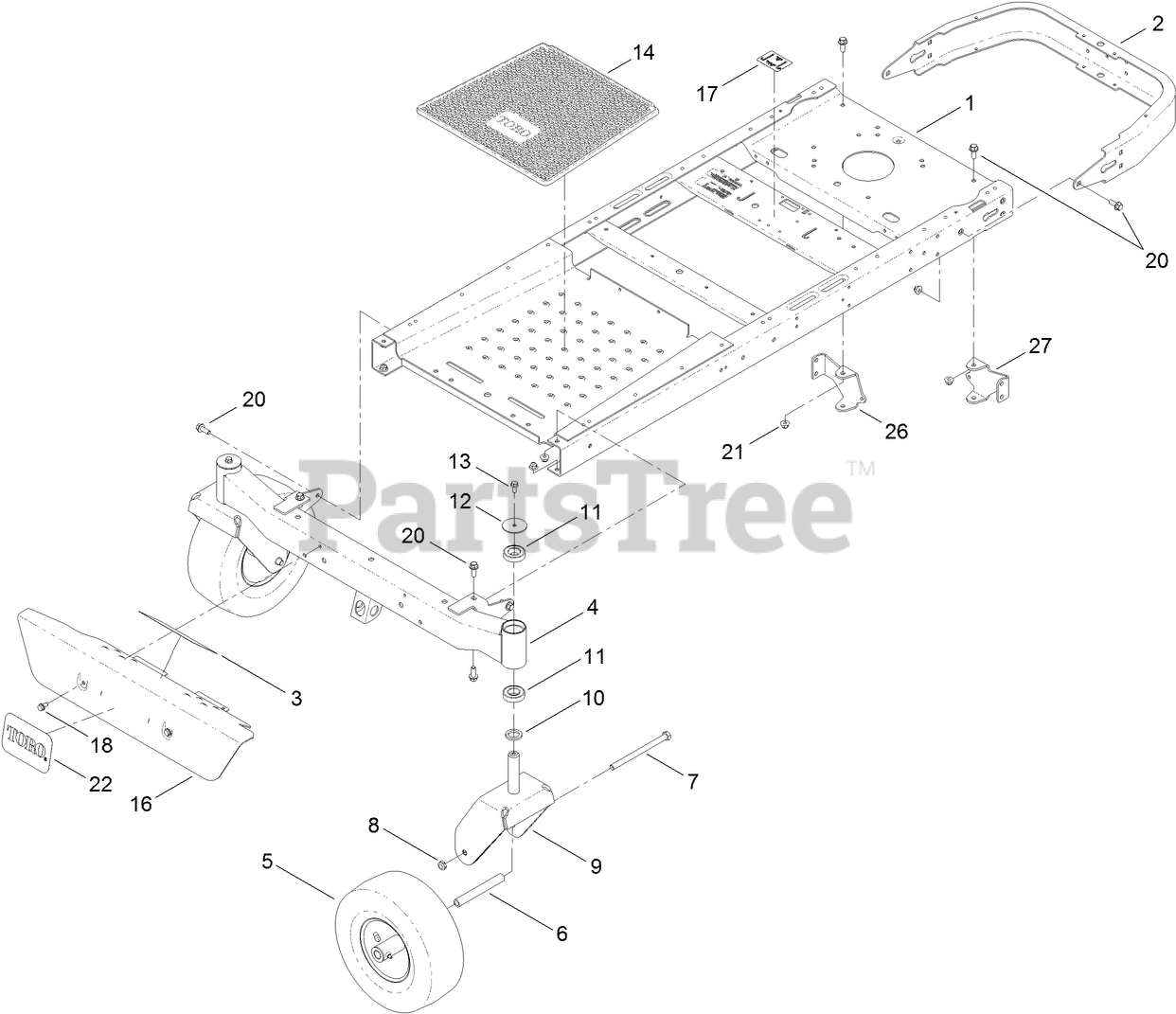

Frame, Front Axle and Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 117-7403-01

FRAME ASM

$

$

Not available

2

Toro 117-7415-01

BUMPER-REAR (WIDE)

$153.99

$

Usually ships in 3-6 days

0

3

Toro 120-2239

See Supercession: 132-0869
(Superseded to 132-0869)

$11.99

$

In Stock, only 1 left!

0

4

Toro 120-5513-01

AXLE-FRONT, WIDE
(Superseded to 121-5683-01)

$429.99

$

Usually ships in 3-6 days

0

5

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$129.99

$

In Stock, only 2 left!

0

6

Toro 119-3475

SPANNER

$12.99

$

In Stock, only 3 left!

0

7

Toro 325-37

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

8

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Toro 119-3349-01

FORK-CASTER

$188.99

$

In Stock, only 2 left!

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

12

Toro 119-8915

WASHER

$3.49

$

In Stock, only 1 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Toro 120-5454

See Supercession: 132-6921
(Superseded to 132-6921)

$71.99

$

Usually ships in 3-6 days

0

16

Toro 117-7424-03

See Supercession: 125-0074
(Superseded to 125-0074)

$243.99

$

Usually ships in 3-6 days

0

17

Toro 120-5465

DECAL-TRANSPORT

$

$

Not available

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 99-4693

DECAL

$27.99

$

In Stock, only 2 left!

0

26

Toro 117-7459-01

MOUNT-HYDRO, REAR (RH)

$19.99

$

Usually ships in 3-6 days

0

27

Toro 117-7460-01

MOUNT-HYDRO, REAR (LH)

$

$

Not available
