74633 (SS 4235) - Toro 42" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) Frame, Frame Axle and Caster Wheel Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

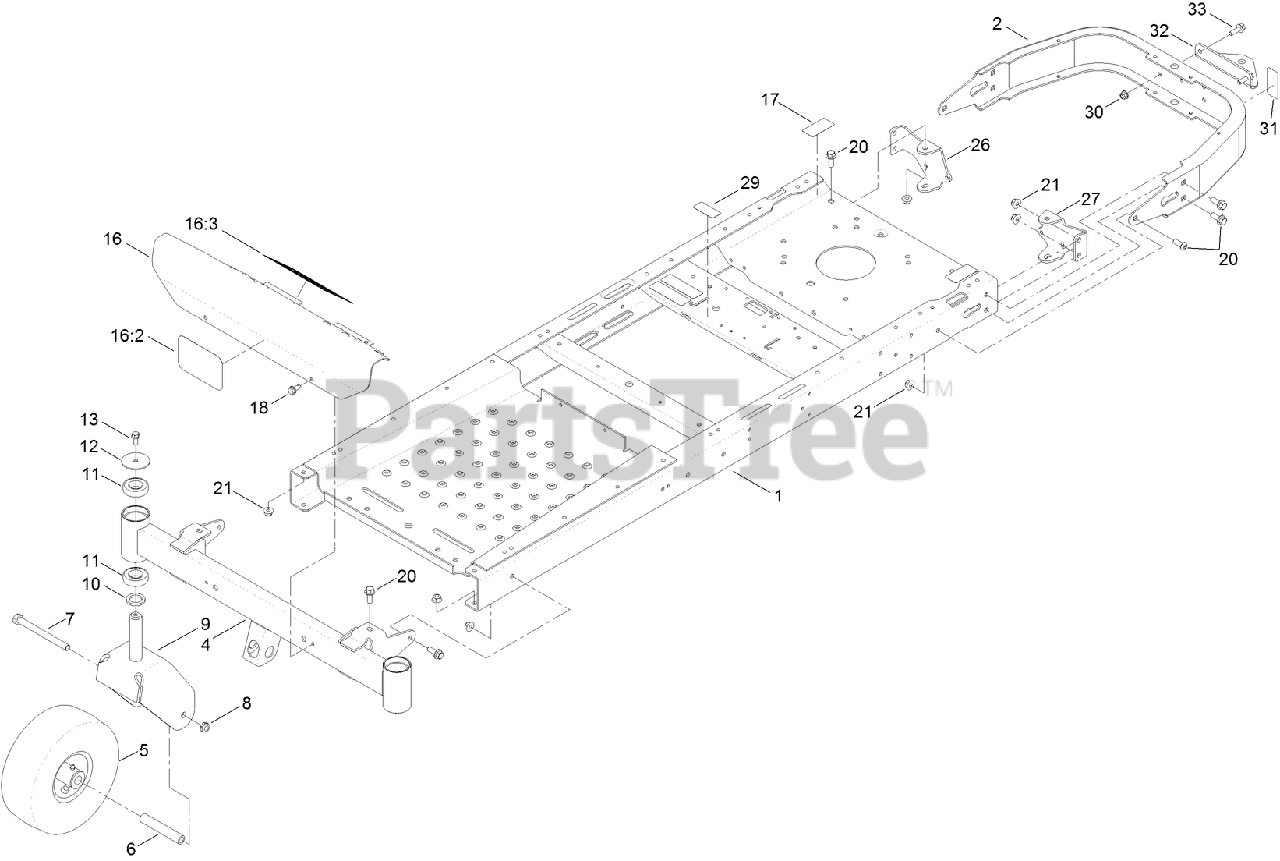

Frame, Frame Axle and Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 121-2970-01

FRAME

$

$

Not available

2

Toro 110-1920-01

BUMPER-REAR

$139.99

$

Usually ships in 3-6 days

0

4

Toro 120-5516-01

AXLE-FRONT

$364.99

$

Usually ships in 3-6 days

0

5

Toro 130-0736

CASTER WHEEL ASM

$95.99

$

In Stock, Qty 9

0

6

Toro 104-3667

BUSHING-SPANNER

$21.99

$

In Stock, Qty 20+

0

7

Toro 325-22

SCREW-HH

$8.99

$

In Stock, Qty 15

0

8

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Toro 120-2266-01

FORK-CASTER

$204.99

$

Usually ships in 3-6 days

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

12

Toro 119-8915

WASHER

$3.49

$

In Stock, only 1 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 125-0072

See Supercession: 132-0890
(Superseded to 132-0890)

$243.99

$

Usually ships in 3-6 days

0

16:2

Toro 105-8278

DECAL

$12.99

$

In Stock, only 2 left!

0

16:3

Toro 120-2239

See Supercession: 132-0869
(Superseded to 132-0869)

$11.99

$

In Stock, only 1 left!

0

17

Toro 121-2989

DECAL-BYPASS

$5.99

$

In Stock, only 1 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 121-0737-01

MOUNT-HYDRO, REAR (RH)

$18.99

$

Usually ships in 3-6 days

0

27

Toro 121-0738-01

MOUNT-HYDRO, REAR (LH)

$18.99

$

Usually ships in 3-6 days

0

29

Toro 121-5684

DECAL-LOCATION, SERVICE DEALER

$1.49

$

Usually ships in 3-6 days

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 109-7076

DECAL

$10.99

$

Usually ships in 3-6 days

0

32

Toro 117-1232-03

BRACKET-HITCH

$33.99

$

In Stock, only 1 left!

0

33

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0
