74635 (SS 5035) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) Deck Lift Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

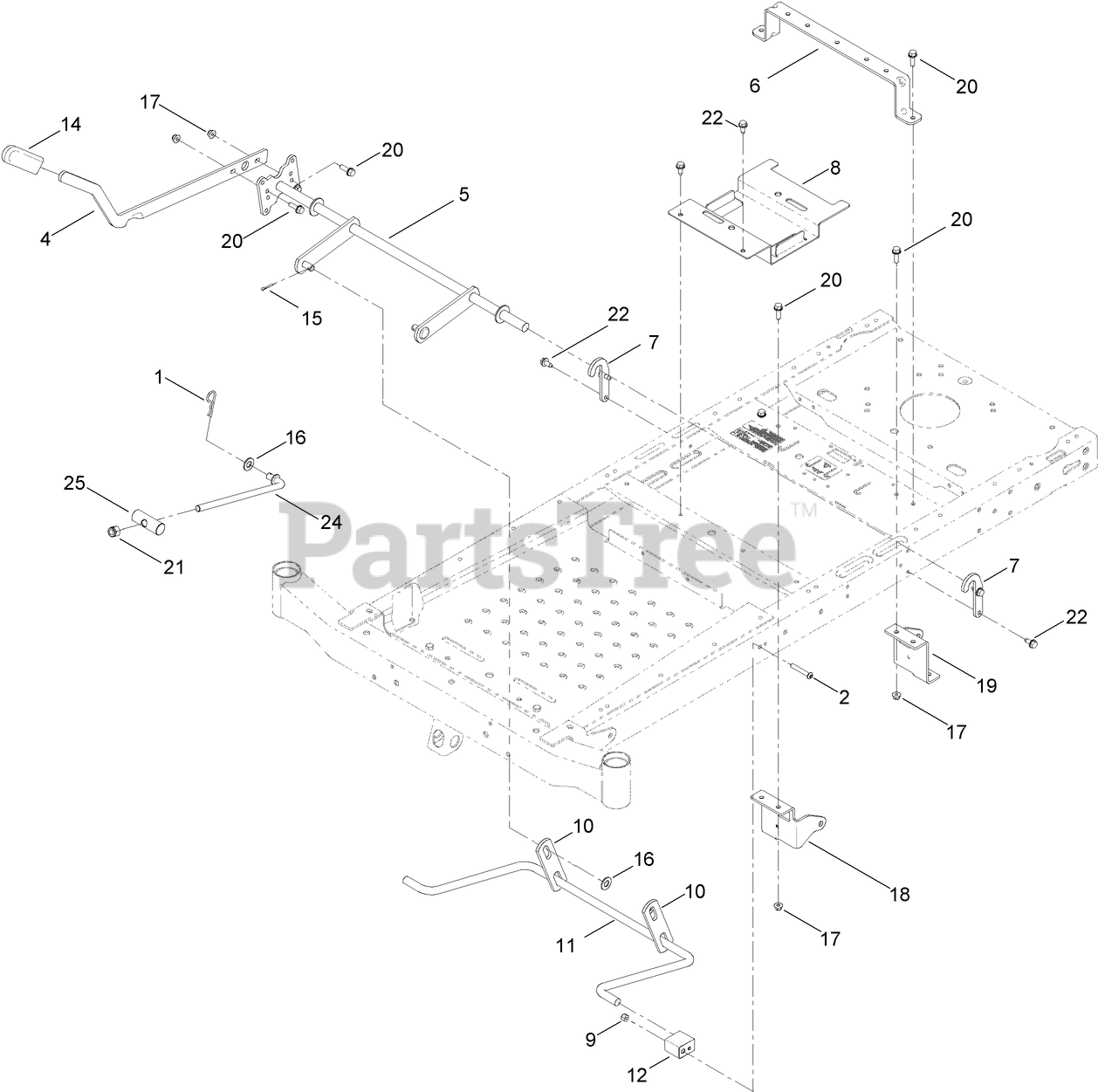

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

2

Toro 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3427-03

LEVER-LIFT

$28.99

$

Usually ships in 3-6 days

0

5

Toro 119-3424-03

See Supercession: 132-6878-03
(Superseded to 132-6878-03)

$70.99

$

In Stock, only 3 left!

0

6

Toro 117-7337-03

BRACE-SEAT, REAR

$23.99

$

Usually ships in 3-6 days

0

7

Toro 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.99

$

In Stock, only 2 left!

0

8

Toro 119-3406-03

BRACKET-BATTERY
(Superseded to 135-0507-03)

$310.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$8.99

$

In Stock, Qty 8

0

11

Toro 119-3347

ARM-LIFT, REAR (WIDE)
(Superseded to 138-7239)

$41.99

$

In Stock, Qty 17

0

12

Toro 108-7845

BLOCK-PIVOT

$18.99

$

In Stock, Qty 20+

0

14

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 119-8861-01

MOUNT-HYDRO, FRONT (RH)

$21.99

$

Usually ships in 3-6 days

0

19

Toro 119-8862-01

See Supercession: 131-0902-01
(Superseded to 139-3211-01)

$16.99

$

In Stock, only 3 left!

0

20

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

21

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 104-8047

See Supercession: 131-3945
(Superseded to 131-3945)

$47.99

$

In Stock, Qty 20+

0

25

Toro 119-8810

PIN-PIVOT

$18.99

$

In Stock, Qty 20+

0
