74637 (SS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) Engine and Muffler Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

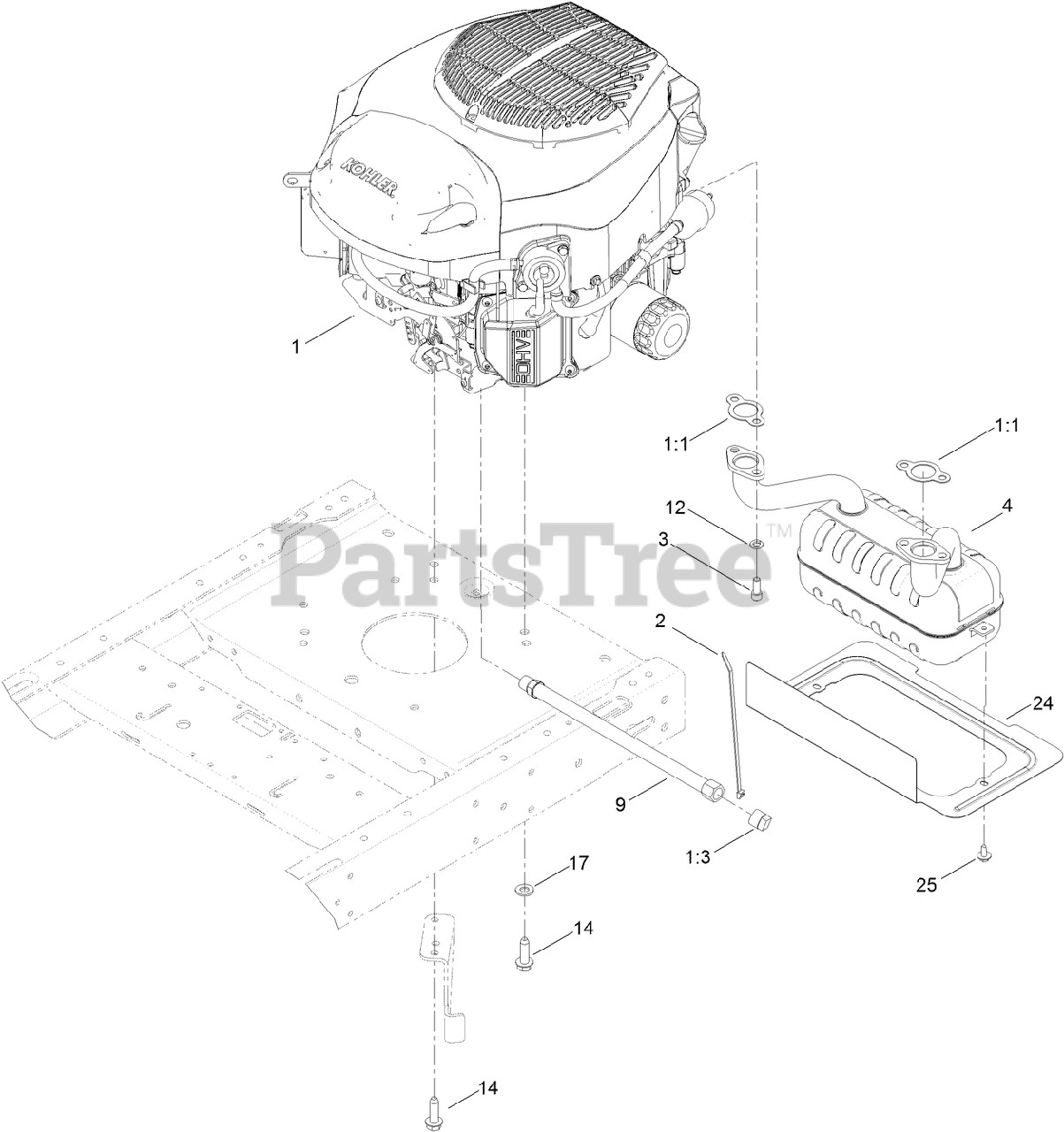

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE KOHLER-KT735-3026

Note: Not serviced separately

$

$

Not available

1

ENGINE KOHLER-KT735-3026

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:3

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

3

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

4

Toro 117-7462

MUFFLER-KOHLER

$274.99

$

Usually ships in 3-6 days

0

9

Toro 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 121-2973-03

SHIELD-HEAT

$38.99

$

In Stock, Qty 11

0

25

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0
