74640 (MX 4260) - Toro 42" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) Hydro Transaxle Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

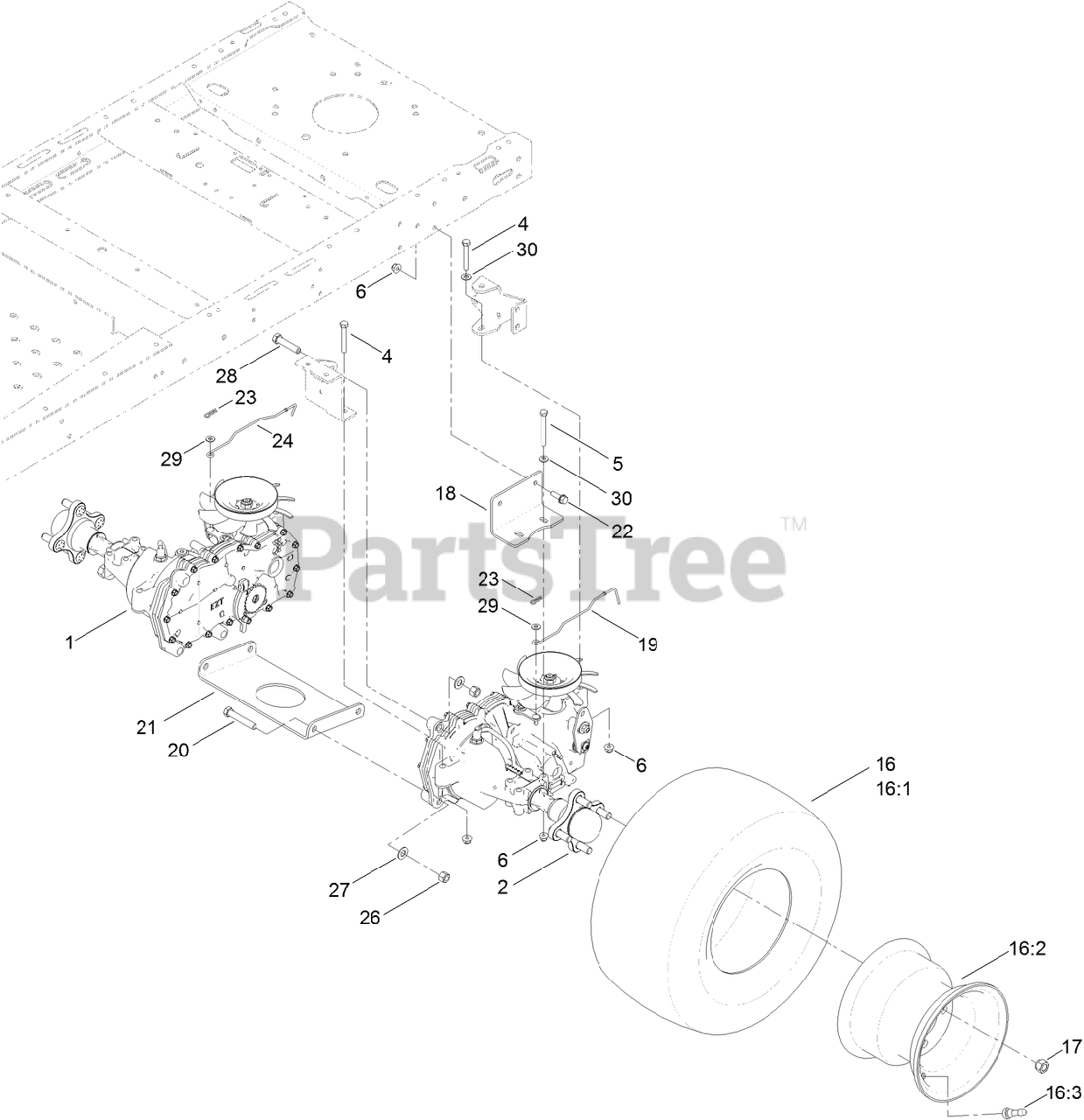

Hydro Transaxle Assembly Parts Diagram

  • Title

1

Toro 119-3341

RH HYDRO TRANSAXLE ASM

$1670.99

$

Usually ships in 3-6 days

0

2

Toro 119-3340

LH HYDRO TRANSAXLE ASM

$1499.99

$

Usually ships in 3-6 days

0

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

5

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 120-5523

4 PLY WHEEL AND TIRE ASM

$267.99

$

Usually ships in 3-6 days

0

16:1

Toro 119-8907

TIRE-4 PLY

$231.99

$

Usually ships in 3-6 days

0

16:2

Toro 107-2475

WHEEL

$84.99

$

In Stock, Qty 6

0

16:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

16:99

Toro 107-2491

TUBE-TIRE

Note: Not illustrated

$90.99

$

In Stock, only 2 left!

0

17

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

18

Toro 117-7264-03

MOUNT-HYDRO

$10.99

$

Usually ships in 3-6 days

0

19

Toro 121-2971

ROD-BYPASS, LH

$10.99

$

Usually ships in 3-6 days

0

20

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 7

0

21

Toro 119-3339-03

PLATE-CROSS, HYDRO

$28.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

23

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

24

Toro 121-0752

ROD-BYPASS, RH

$45.99

$

Usually ships in 3-6 days

0

26

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

28

Toro 324-8

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

29

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
