74650 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 401000000 - 403022889) 32 Inch Deck Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

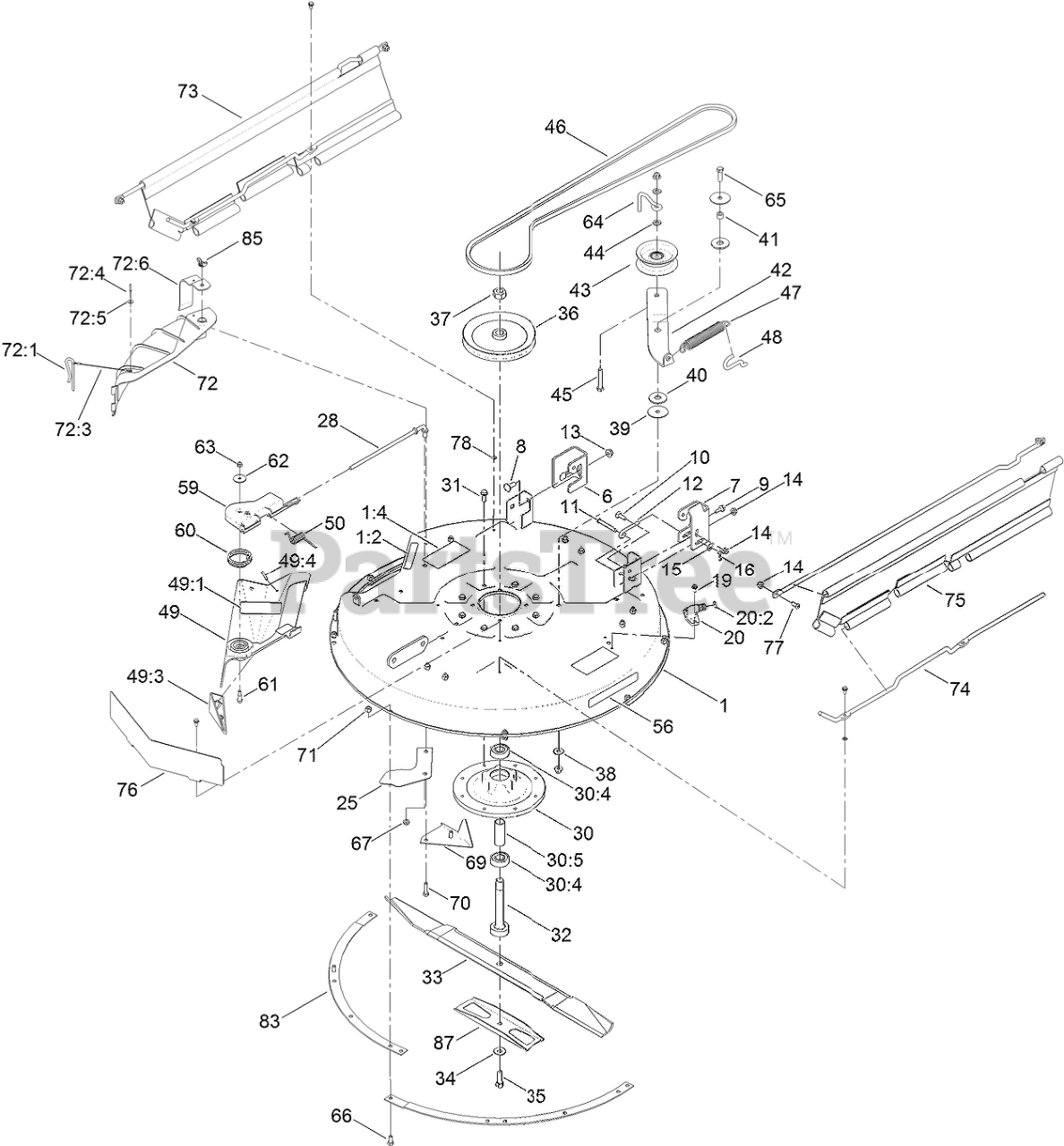

32 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 131-3602

32 INCH DECK AND DECAL ASM

$991.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 7

0

1:4

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 5

0

6

Toro 131-4138

BRACKET-HANGER, RH

$14.99

$

In Stock, Qty 20+

0

7

Toro 131-1091

BRACKET-HANGER, LH

$15.99

$

In Stock, Qty 20+

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

11

Toro 110-0618

PIN-CLEVIS

$14.99

$

In Stock, Qty 20+

0

12

Toro 131-0955

ROD-LEVEL, DECK

$8.99

$

In Stock, Qty 16

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 133-9289

FITTING-WASHOUT

$7.49

$

In Stock, Qty 20+

0

20:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

25

Toro 119-8877-03

RAMP-DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

28

Toro 119-8858

ROD-PIVOT

$29.99

$

In Stock, only 2 left!

0

30

Toro 119-0368

SPINDLE HOUSING ASM

$168.99

$

In Stock, only 3 left!

0

30:4

Toro 251-297

BEARING-BALL

$24.99

$

In Stock, Qty 10

0

30:5

Toro 83-7020

SPACER-BEARING

$30.99

$

In Stock, only 2 left!

0

31

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

32

Toro 119-8825

SHAFT-SPINDLE

$54.99

$

In Stock, only 3 left!

0

33

Toro 80-4430-03

BLADE-RECYCLER, 31.35 INCH

$56.99

$

In Stock, Qty 15

0

34

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Toro 119-8804

PULLEY-DECK

$70.99

$

In Stock, only 2 left!

0

37

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

38

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

39

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

41

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

42

Toro 119-8966

ARM-IDLER

$50.99

$

In Stock, only 2 left!

0

43

Toro 132-9420

PULLEY-IDLER, FLAT

$37.99

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Toro 119-8821

V-BELT, 81.8 INCH

$66.99

$

In Stock, Qty 5

0

47

Toro 106-2177

SPRING-EXTENSION

$15.99

$

In Stock, Qty 11

0

48

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

49

Toro 120-2298

32 INCH DEFLECTOR ASM

$58.99

$

In Stock, Qty 7

0

49:1

Toro 110-6691

DECAL-DANGER

$5.99

$

In Stock, Qty 18

0

49:3

Toro 93-7696

KICKER

$15.99

$

In Stock, only 4 left!

0

49:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

50

Toro 92-2493

SPRING-TORSION

$13.99

$

In Stock, only 2 left!

0

56

Toro 119-2368

DECAL-RECYCLER

$6.99

$

In Stock, only 2 left!

0

59

Toro 88-4540

PIVOT-HINGE, DEFLECTOR

$26.99

$

In Stock, only 2 left!

0

60

Toro 88-6160

SPRING-TORSION

$39.99

$

In Stock, only 2 left!

0

61

Toro 92-8916

BOLT-SHOULDER

$17.99

$

In Stock, only 2 left!

0

62

Toro 3256-55

WASHER-FLAT

$5.99

$

In Stock, Qty 9

0

63

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

64

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0

65

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

66

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

67

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

69

Toro 80-2630-03

KICKER

$37.99

$

In Stock, only 3 left!

0

70

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

71

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

72

Toro 82-6151

DISCHARGE COVER ASM

$135.99

$

In Stock, only 1 left!

0

72:1

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

72:3

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

72:4

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

72:5

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

72:6

Toro 83-7010-03

BRACE

$29.99

$

Usually ships in 3-6 days

0

73

Toro 131-3669

ROD-SUPPORT, UPPER

$25.99

$

Usually ships in 3-6 days

0

74

Toro 131-3681

ROD-SUPPORT, LOWER

$26.99

$

Usually ships in 3-6 days

0

75

Toro 131-3685

GUARD-SIDE

$28.99

$

Usually ships in 3-6 days

0

76

Toro 131-3666-03

SHIELD-FRONT

$23.99

$

Usually ships in 3-6 days

0

77

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

78

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

83

Toro 80-4490-03

RING-DECK

$21.99

$

In Stock, only 1 left!

0

85

Toro 32103-2

NUT-WING

$0.99

$

Usually ships in 3-6 days

0

87

Toro 80-4570-03

STIFFENER

$31.99

$

In Stock, Qty 7
