74670 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) Gear Assembly Parts Diagram

32" TimeCutter Zero-Turn Mower

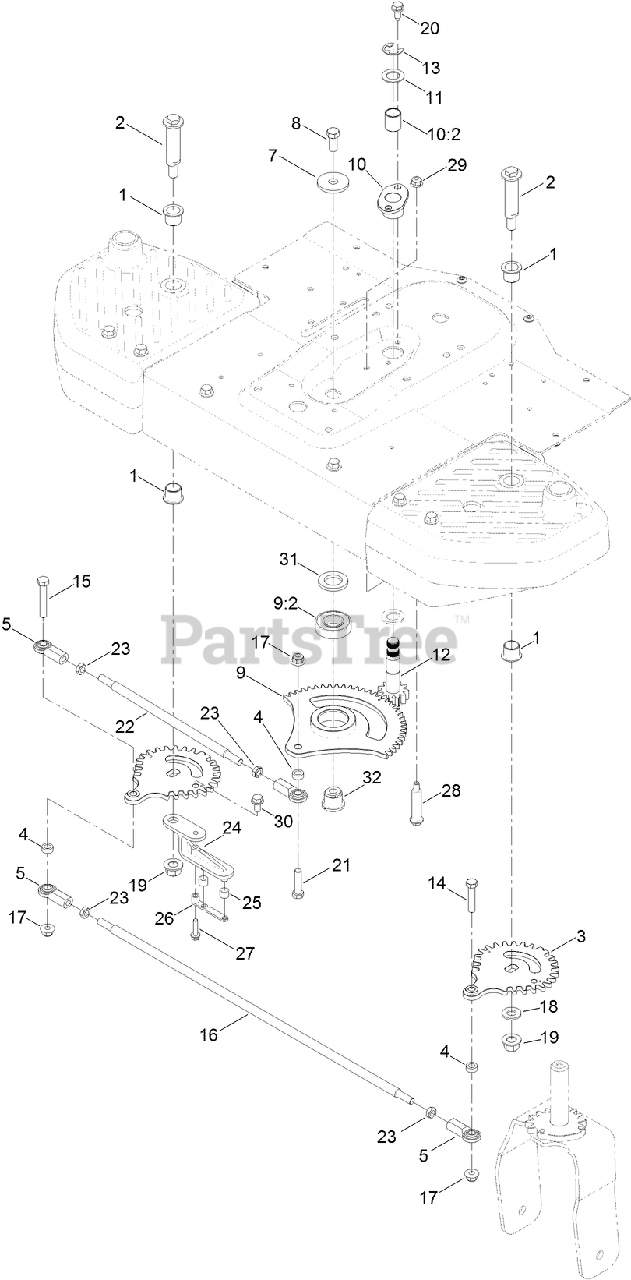

Gear Assembly Parts Diagram

  • Title

1

Toro 103-4398

BEARING-FLANGE, IGLIDE

$12.99

$

Usually ships in 3-6 days

0

2

Toro 131-1031

BOLT-SHOULDER

$24.99

$

In Stock, only 2 left!

0

3

Toro 130-0830

GEAR-WHEEL, 30 TOOTH

$47.99

$

In Stock, only 2 left!

0

4

Toro 83-1050

SPACER

$8.49

$

Usually ships in 3-6 days

0

5

Toro 103-0608

JOINT-BALL, END

$37.99

$

Usually ships in 3-6 days

0

7

Toro 84-1560

WASHER-THRUST

$11.99

$

Usually ships in 3-6 days

0

8

Toro 324-4

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

9

SECTOR GEAR ASM

Note: Not serviced separately

$

$

Not available

9:2

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

10

FLANGE BEARING ASM

Note: Not serviced separately

$

$

Not available

10:2

Toro 115-7019

BUSHING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

11

Toro 119-7640

WASHER-THRUST

$3.99

$

In Stock, Qty 6

0

12

Toro 125-5508

LOWER STEERING SHAFT ASM

$265.99

$

Usually ships in 3-6 days

0

13

Toro 32151-48

E-RING

$1.99

$

In Stock, only 4 left!

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 131-1035

ROD-CROSS, NARROW

$31.99

$

Usually ships in 3-6 days

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 131-1036

ROD-STEERING, NARROW

$109.99

$

Usually ships in 3-6 days

0

23

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

24

Toro 130-6878

LEVER-CABLE

$60.99

$

Usually ships in 3-6 days

0

25

Toro 131-3951

BUSHING

$2.99

$

Usually ships in 3-6 days

0

26

Toro 131-3950

STRAP-ROLLER

$15.99

$

Usually ships in 3-6 days

0

27

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

28

Toro 100-9880

BOLT-SHOULDER
(Superseded to 136-7199)

$5.99

$

In Stock, only 2 left!

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

31

Toro 131-8736

SPACER-BEARING

$34.99

$

Usually ships in 3-6 days

0

32

Toro 131-8737

PIVOT-BEARING

$47.99

$

In Stock, only 1 left!

0
