74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) 50 Inch Deck and Baffle Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

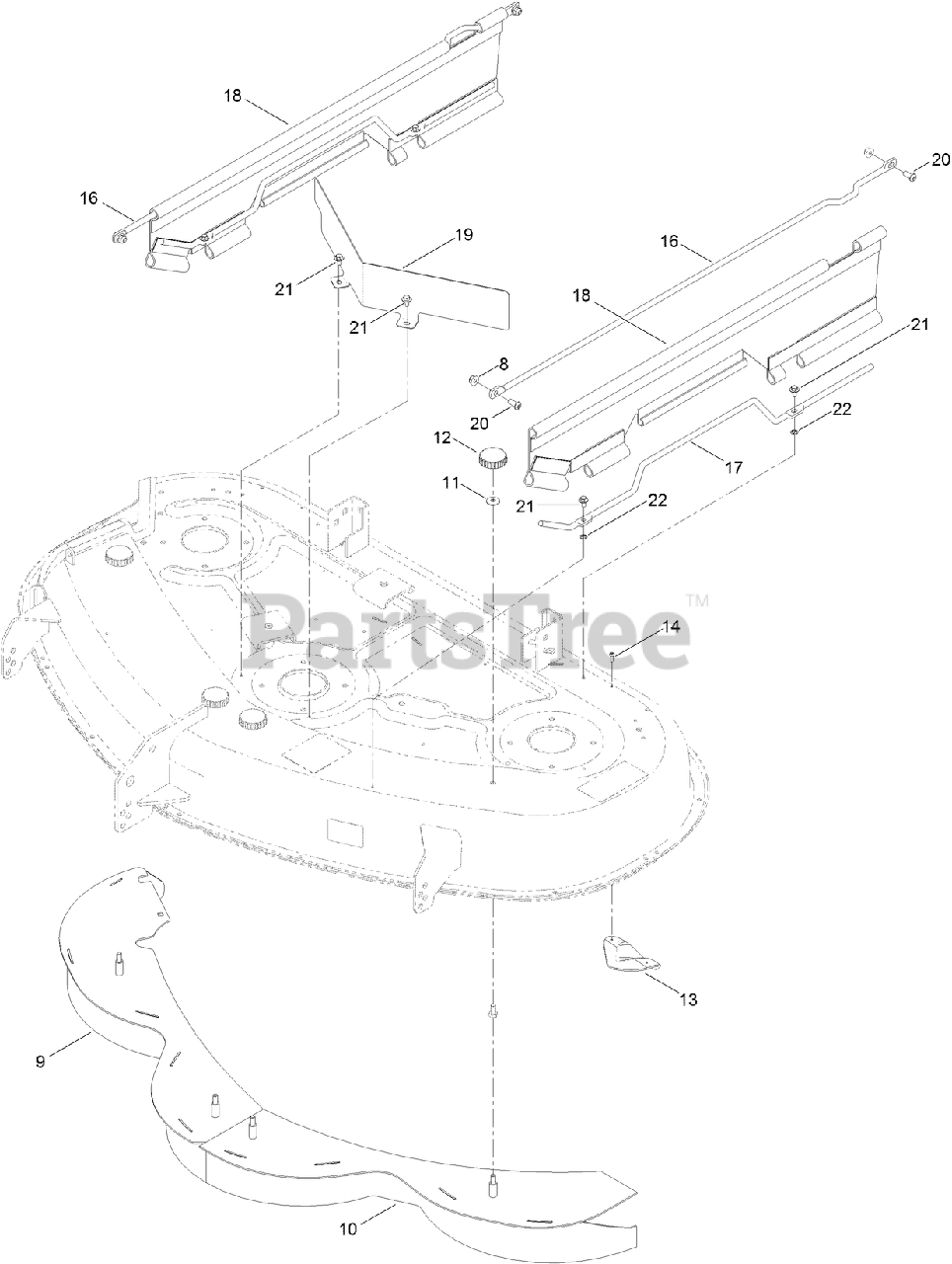

50 Inch Deck and Baffle Assembly Parts Diagram

  • Title

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 112-4010-03

RH BAFFLE ASM

$339.99

$

Usually ships in 3-6 days

0

10

Toro 112-4011-03

LH BAFFLE ASM

$339.99

$

Usually ships in 3-6 days

0

11

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

12

Toro 94-5583

KNOB

$14.99

$

Usually ships in 3-6 days

0

13

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

0

14

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 10

0

16

Toro 131-3669

ROD-SUPPORT, UPPER

$25.99

$

Usually ships in 3-6 days

0

17

Toro 131-3684

ROD SUPPORT, LOWER

$26.99

$

Usually ships in 3-6 days

0

18

Toro 131-3926

GUARD-SIDE

$28.99

$

Usually ships in 3-6 days

0

19

Toro 131-3648-03

SHIELD-FRONT

$26.99

$

Usually ships in 3-6 days

0

20

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

21

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

22

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0
