74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400220000 - 999999999) Caster Wheel Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

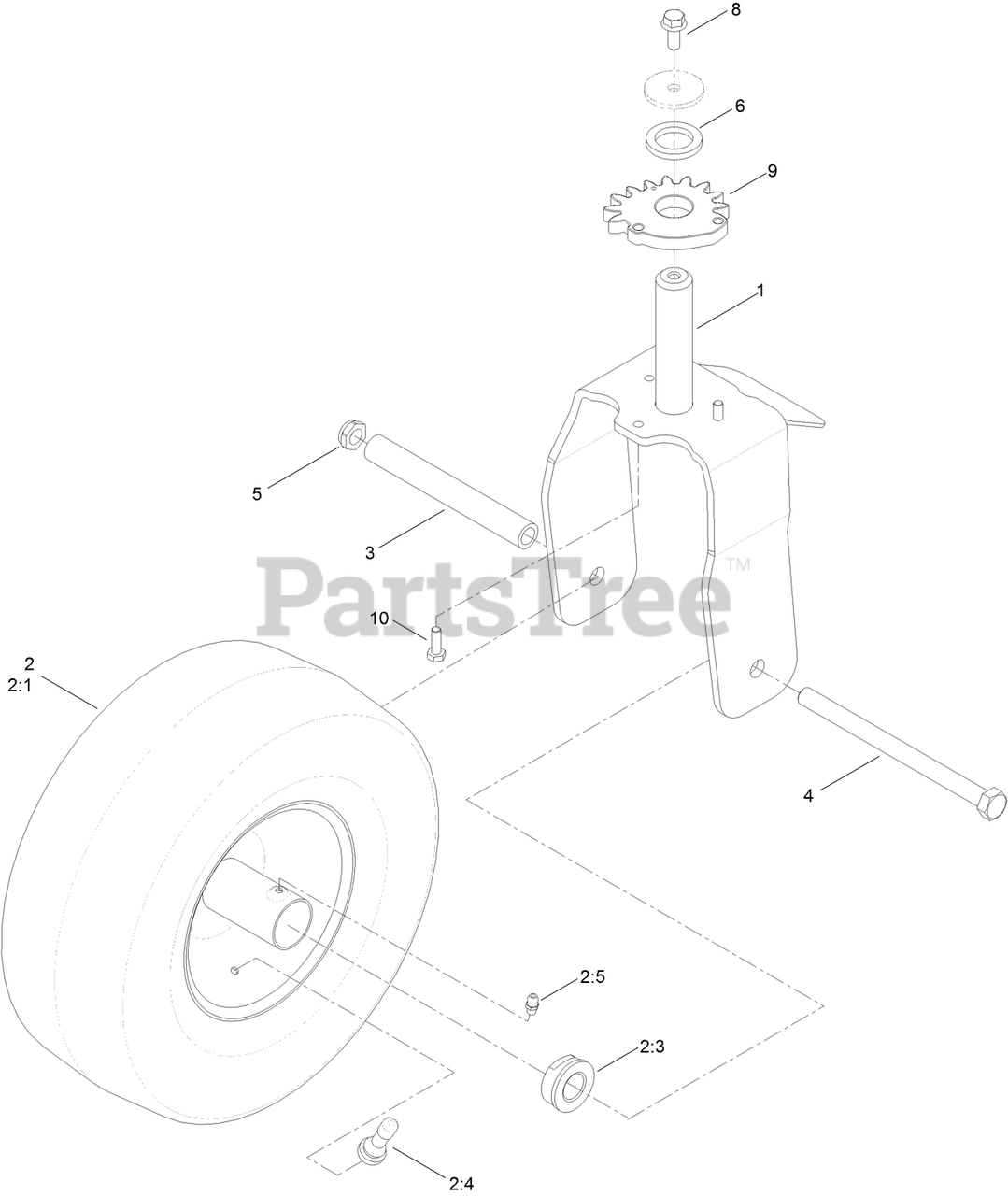

Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 130-0670-03

CASTER FORK ASM

$109.99

$

Usually ships in 3-6 days

0

2

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$129.99

$

In Stock, only 2 left!

0

2:1

Toro 119-3471

TIRE-13 INCH

$111.99

$

In Stock, only 2 left!

0

2:3

Toro 114-1640

BUSHING-FLANGE

$13.99

$

In Stock, Qty 20+

0

2:4

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

2:5

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

2:99

Toro 232-46

TUBE-INNER

Note: Not illustrated

$49.99

$

Usually ships in 3-6 days

0

3

Toro 119-3475

SPANNER

$12.99

$

In Stock, only 3 left!

0

4

Toro 325-37

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

5

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

9

Toro 130-0689

GEAR-WHEEL, 15 TOOTH

$28.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
