74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) Deck Assembly Parts Diagram

52" TimeCutter Zero-Turn Mower

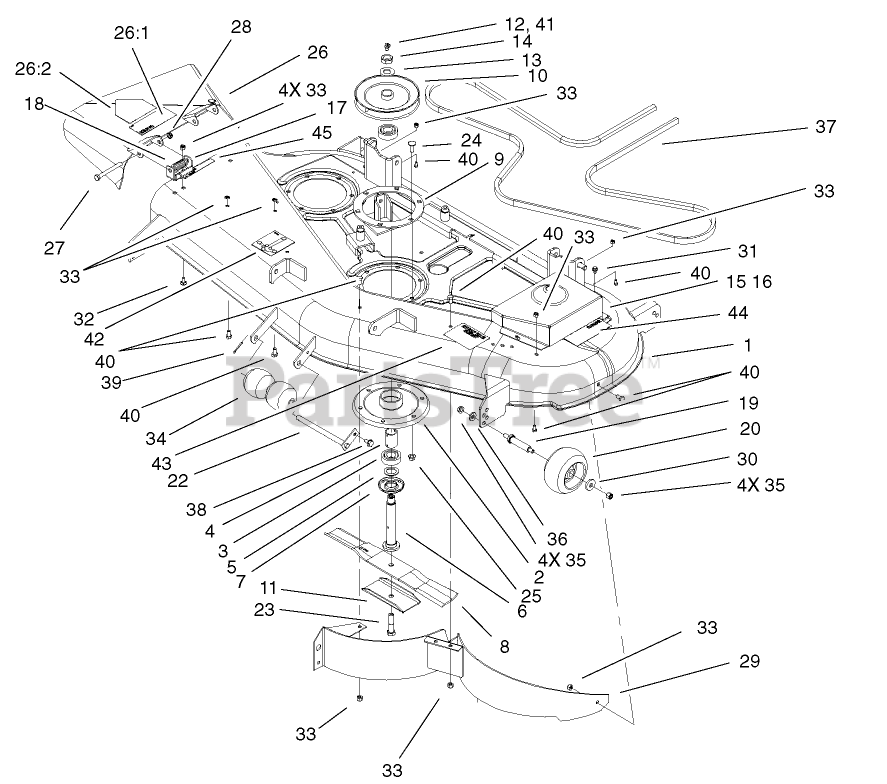

Deck Assembly Parts Diagram

  • Title

1

Toro 105-1949

DISCONTINUED
(Superseded to 108-8534)

$

$

Not available

2

Toro 79-2480-03

See Supercession: 79-2480
(Superseded to 79-2480)

$241.99

$

Usually ships in 3-6 days

0

3

Toro 113514

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

4

Toro 79-1890

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

5

Toro 120860

WASHER-WHEEL

$7.99

$

In Stock, only 4 left!

0

6

Toro 79-1910

SHAFT-SPINDLE

$

$

Not available

7

Toro 79-1920

SHIELD-BEARING

$15.99

$

In Stock, only 3 left!

0

8

Toro 27-0990-03

BLADE-18 INCH

$22.99

$

In Stock, Qty 17

0

9

Toro 27-7680-01

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$94.99

$

Usually ships in 3-6 days

0

10

Toro 100-7320

PULLEY/HUB ASM

$

$

Not available

11

Toro 92-9820

STIFFENER-BLADE

$71.99

$

Usually ships in 3-6 days

0

12

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

15

Toro 104-3685-01

DISCONTINUED

$

$

Not available

16

Toro 104-3684-01

COVER-BELT, RH

$151.99

$

Usually ships in 3-6 days

0

17

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

18

Toro 40-6230

SPRING

$

$

Not available

19

Toro 99-2842

See Supercession: 126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

20

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

22

Toro 98-5030

SHAFT ASM

$113.99

$

Usually ships in 3-6 days

0

23

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

24

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 94-1580

DISCONTINUED
(Superseded to 94-1580-01)

$

$

Not available

26:1

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

26:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

27

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

28

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

29

Toro 94-2509-03

BAFFLE ASM-MULCH, LH

$

$

Not available

30

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

31

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

32

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

33

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

37

Toro 99-3904

BELT-DECK

$184.99

$

In Stock, only 3 left!

0

38

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

39

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

40

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Toro 302-33

FITTING-GREASE
(Superseded to 9335124)

$2.99

$

In Stock, only 1 left!

0

42

Toro 99-3943

DECAL-ROUTING, BELT

$8.49

$

In Stock, Qty 6

0

43

Toro 98-3798

DECAL-WHEEL, GAGE

$19.99

$

Usually ships in 3-6 days

0

44

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

45

Toro 92-7109

DECAL-CAUTION

$

$

Not available
