74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) Deck Assembly Parts Diagram

48" TimeCutter Zero-Turn Mower

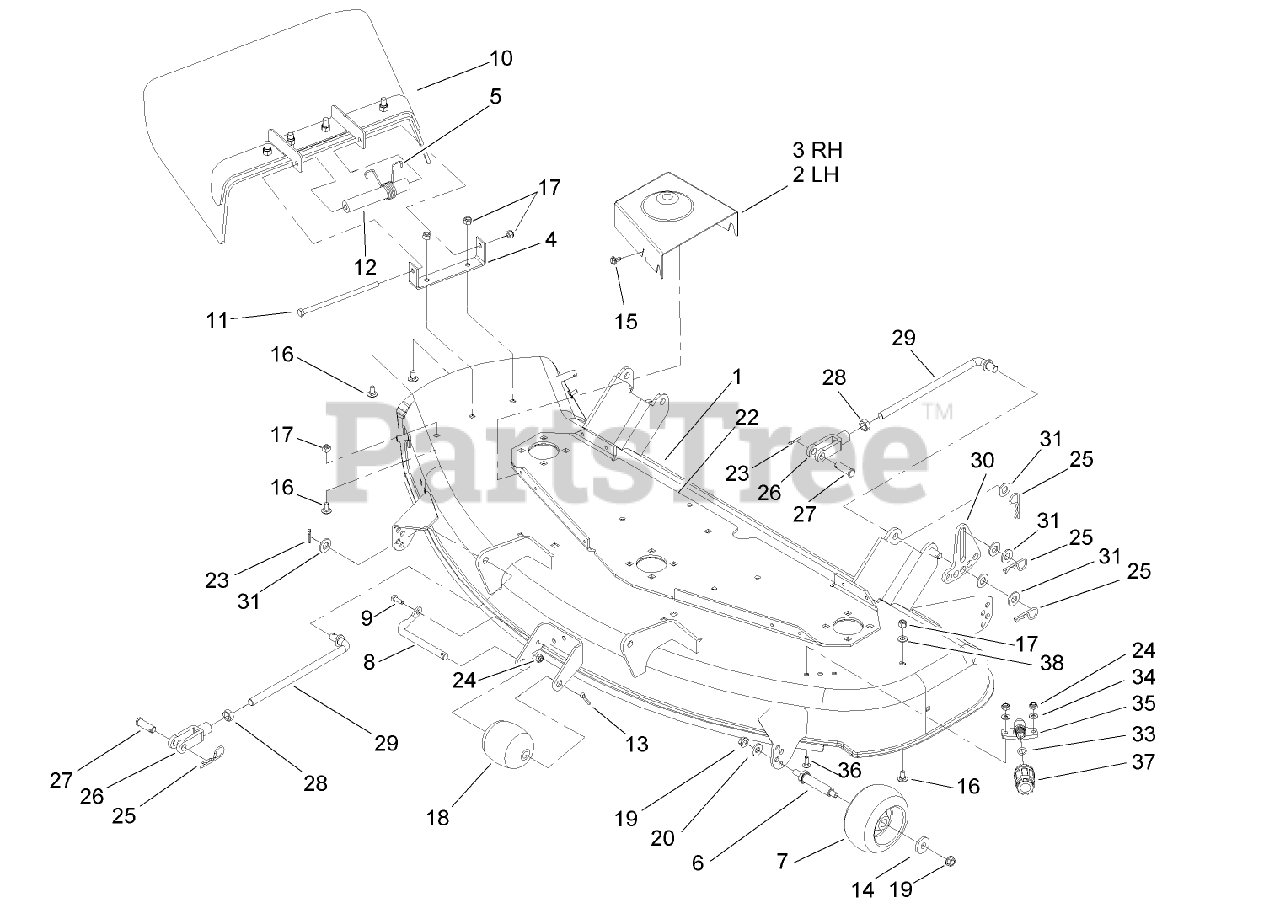

Deck Assembly Parts Diagram

  • Title

1

Toro 108-7174

DISCONTINUED

$

$

Not available

2

Toro 108-7167-03

COVER-BELT, LH

$84.99

$

Usually ships in 3-6 days

0

3

Toro 108-7166-03

COVER-BELT, RH

$84.99

$

Usually ships in 3-6 days

0

4

Toro 108-8581-03

BRACKET-PIVOT

$

$

Not available

5

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

6

Toro 99-2842

See Supercession: 126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

7

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

8

Toro 110847

ROLLER-SHAFT

$31.99

$

In Stock, Qty 5

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 108-8591

DEFLECTOR ASM

$

$

Not available

11

Toro 108-8539

BOLT-HH

$

$

Not available

12

Toro 108-7159

SPACER-DEFLECTOR

$

$

Not available

13

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

14

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

17

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 94-1599

ROLLER

$14.99

$

In Stock, Qty 10

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

22

Toro 108-7168-01

PLATE-REINFORCEMENT, DECK

$

$

Not available

23

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

24

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

25

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

26

Toro 100-7338

CLEVIS

$68.99

$

In Stock, only 1 left!

0

27

Toro 104-3634

PIN-CLEVIS

$22.99

$

In Stock, only 2 left!

0

28

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

29

Toro 104-8047

See Supercession: 131-3945
(Superseded to 131-3945)

$47.99

$

In Stock, Qty 20+

0

30

Toro 104-3699-01

LINK-HOC, ADJUSTING

$81.99

$

Usually ships in 3-6 days

0

31

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

34

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

36

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Toro 95-3270

CONNECTOR-HOSE

$27.99

$

In Stock, Qty 20+

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
