74704 (ZX 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 48in Deck Belt Drive Assembly Parts Diagram

48" TimeCutter Zero-Turn Mower

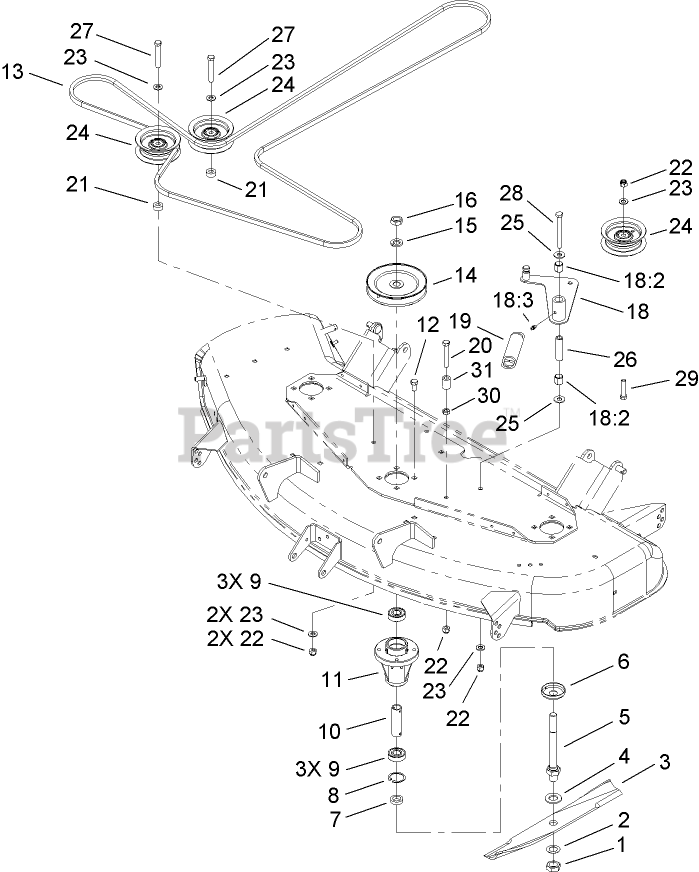

48in Deck Belt Drive Assembly Parts Diagram

  • Title

1

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

2

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

3

Toro 106078

See Supercession: 106637
(Superseded to 106637)

$111.99

$

In Stock, Qty 10

0

4

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

5

Toro 108-8527

SHAFT-SPINDLE

$84.99

$

In Stock, Qty 7

0

6

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

7

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

8

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

9

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

10

Toro 116085

TUBE

$37.99

$

In Stock, only 2 left!

0

11

Toro 114568

HOUSING-SPINDLE

$110.99

$

In Stock, only 4 left!

0

12

Toro 9080326

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

13

Toro 108-7190

BELT-V

$301.99

$

Usually ships in 3-6 days

0

14

Toro 108-7165

PULLEY ASM

$

$

Not available

15

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0

18

Toro 108-8551

DISCONTINUED

$

$

Not available

18:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

18:3

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

19

Toro 1-603414

SPRING-EXTENSION

$25.99

$

In Stock, Qty 9

0

20

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 106-2175

See Supercession: 132-9420
(Superseded to 132-9420)

$37.99

$

In Stock, Qty 20+

0

25

Toro 1-809107

WASHER-HARDENED

$5.99

$

In Stock, only 2 left!

0

26

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

27

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

29

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

31

Toro 106-5620

TUBE-INTERLOCK

$18.99

$

Usually ships in 3-6 days

0
