74760 (MX 4250) - Toro 42" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) Seat Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

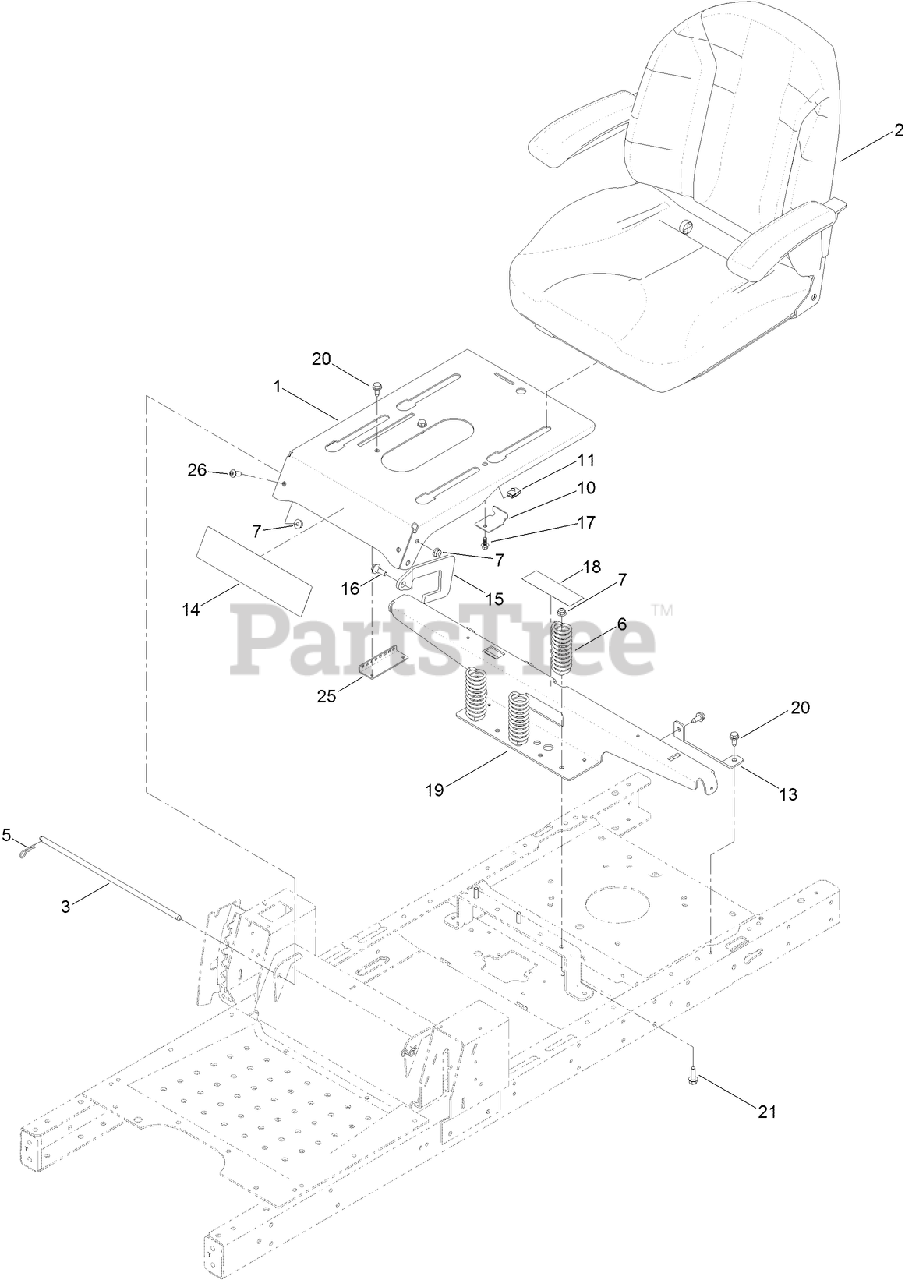

Seat Assembly Parts Diagram

  • Title

1

Toro 130-7035-03

See Supercession: 136-5571-03
(Superseded to 136-5571-03)

$69.99

$

Usually ships in 3-6 days

0

2

Toro 131-4147

SEAT ASM

$687.99

$

Usually ships in 3-6 days

0

3

Toro 119-3433

ROD-PIVOT, NARROW

$13.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$25.99

$

In Stock, Qty 8

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

11

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

14

Toro 131-3654

DECAL-TIMECUTTER

$7.99

$

Usually ships in 3-6 days

0

15

Toro 131-3994

PLATE-STOP

$15.99

$

Usually ships in 3-6 days

0

16

Toro 116-2670

SCREW-SHOULDER

$8.49

$

In Stock, Qty 7

0

17

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

18

Toro 106-8717

DECAL-SERVICE, CE

$8.99

$

Usually ships in 3-6 days

0

19

Toro 131-1040-03

SUPPORT-POD

$111.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

25

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.99

$

Usually ships in 3-6 days

0

26

Toro 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0
