74768 (MX 5075) - Toro 50" TimeCutter Zero-Turn Mower (SN: 402327412 - 404314199) Seat Pan Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

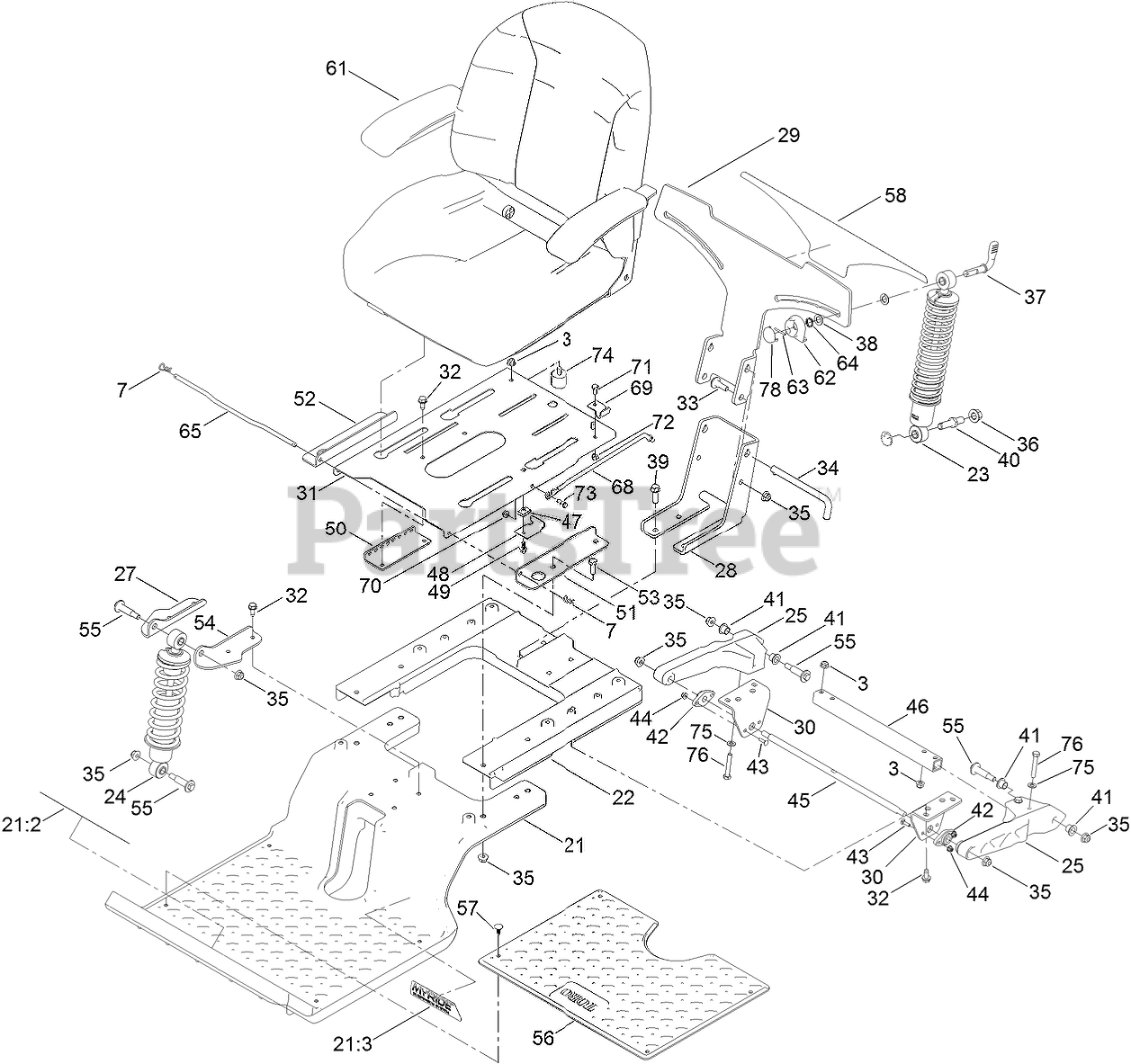

Seat Pan Assembly Parts Diagram

  • Title

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

21

Toro 136-9191

SUBFRAME-FRONT

$363.99

$

Usually ships in 3-6 days

0

21:2

Toro 132-0869

DECAL-DANGER

$11.99

$

In Stock, only 1 left!

0

21:3

Toro 136-7470

DECAL

$7.49

$

Usually ships in 3-6 days

0

22

Toro 137-7031

SUBFRAME-REAR

$104.99

$

Usually ships in 3-6 days

0

23

Toro 133-5154

SHOCK/SPRING ASM
(Superseded to 133-5193)

$145.99

$

Usually ships in 3-6 days

0

24

Toro 131-4651

SHOCK ASM
(Superseded to 133-5192)

$149.99

$

Usually ships in 3-6 days

0

25

Toro 136-8979

TRAILING ARM

$37.99

$

Usually ships in 3-6 days

0

27

Toro 133-9319-03

BRACKET-SHOCK MOUNT, UPPER (RH)

$17.99

$

Usually ships in 3-6 days

0

28

Toro 136-7464-03

BRACKET-MOUNT, LOWER

$76.99

$

Usually ships in 3-6 days

0

29

Toro 137-1980-03

PLATE-MOUNTING, SHOCK

$118.99

$

Usually ships in 3-6 days

0

30

Toro 137-1967-03

BRACKET-MOUNT, SWING ARM

$9.49

$

Usually ships in 3-6 days

0

31

Toro 133-9326-03

PAN-SEAT

$82.99

$

Usually ships in 3-6 days

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 109-9840

SCREW-SHOULDER, HHF

$5.99

$

In Stock, Qty 20+

0

34

Toro 136-5595

PIN-HOC

$9.49

$

Usually ships in 3-6 days

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

37

Toro 137-1982

HANDLE-ADJUSTMENT

$19.99

$

Usually ships in 3-6 days

0

38

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

39

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

40

Toro 137-2003

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

41

Toro 125-5239

BUSHING-FLANGE

$8.99

$

In Stock, only 2 left!

0

42

Toro 127-0146

BEARING-FLANGE

$8.99

$

In Stock, only 4 left!

0

43

Toro 3229-20

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

44

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

45

Toro 137-1968

ROD-PIVOT

$31.99

$

Usually ships in 3-6 days

0

46

Toro 137-1969-03

TUBE-ARM, TRAILING

$27.99

$

Usually ships in 3-6 days

0

47

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

48

Toro 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

49

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

50

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.99

$

Usually ships in 3-6 days

0

51

Toro 133-9327-03

BRACKET-SEAT, RH

$9.49

$

Usually ships in 3-6 days

0

52

Toro 133-9324-03

BRACKET-SEAT, LH

$9.49

$

Usually ships in 3-6 days

0

53

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

54

Toro 133-9318-03

BRACKET-SHOCK MOUNT, UPPER (LH)

$17.99

$

Usually ships in 3-6 days

0

55

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 10

0

56

Toro 133-5190

FLOORMAT

$89.99

$

Usually ships in 3-6 days

0

57

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

58

Toro 137-7044

DECAL-ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

61

Toro 139-2366

SEAT ASM

$650.99

$

Usually ships in 3-6 days

0

62

Toro 137-2030

LOCK-CAM

$5.99

$

Usually ships in 3-6 days

0

63

Toro 137-5015

PIN-LOCK, CAM

$2.99

$

Usually ships in 3-6 days

0

64

Toro 137-5011

SPRING-WAVE

$5.99

$

Usually ships in 3-6 days

0

65

Toro 137-2044

ROD-STOP

$15.99

$

Usually ships in 3-6 days

0

68

Toro 137-5037

BRACE-SEAT

$12.99

$

Usually ships in 3-6 days

0

69

Toro 137-7030-03

BRACKET-BRACE, SEAT

$2.99

$

Usually ships in 3-6 days

0

70

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

71

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

72

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

73

Toro 119-4161

BOLT-SHOULDER

$

$

Currently unavailable

74

Toro 137-4803

BUMPER-RUBBER

$4.99

$

In Stock, only 1 left!

0

75

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

76

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

78

Toro 137-5078

CAP-LOCK, CAM

$2.99

$

Usually ships in 3-6 days

0
