74770 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) BODY STYLING AND FUEL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

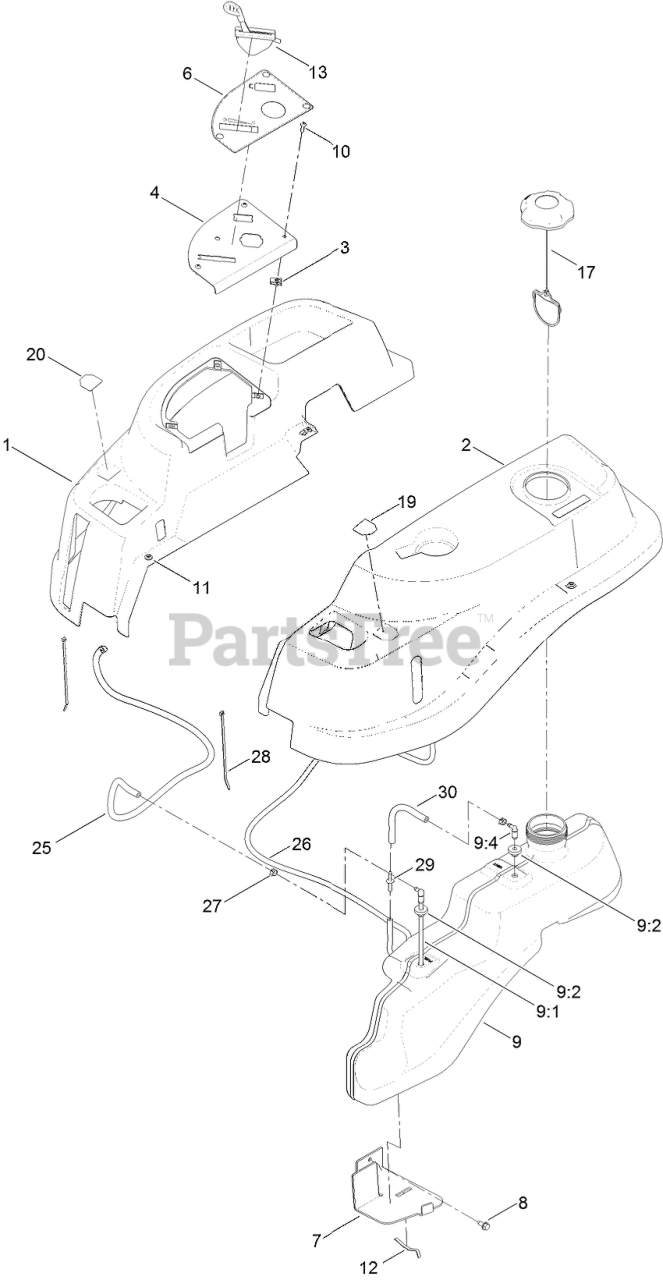

BODY STYLING AND FUEL ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3338

POD-RH

$86.99

$

In Stock, only 1 left!

0

2

Toro 119-3337

POD-LH

$

$

Not available

3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3377-03

PLATE-CONTROL

$13.99

$

Usually ships in 3-6 days

0

6

Toro 131-4162

DECAL-PANEL, CONTROL

$22.99

$

Usually ships in 3-6 days

0

7

Toro 119-3395-03

SUPPORT-TANK, FRONT

$18.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 119-3324

FUEL TANK ASM

$352.99

$

In Stock, only 1 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$12.99

$

In Stock, Qty 9

0

9:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

9:4

Toro 117-7400

FITTING-PLASTIC

$7.49

$

In Stock, Qty 10

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Toro 609830

SPRING

$5.99

$

In Stock, Qty 11

0

13

Toro 131-1006

CABLE-THROTTLE

$55.99

$

In Stock, Qty 5

0

17

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$30.99

$

In Stock, Qty 20+

0

19

Toro 119-8814

DECAL-CONTROL LEVER, LH

$2.99

$

In Stock, only 3 left!

0

20

Toro 119-8815

DECAL-CONTROL LEVER, RH

$2.99

$

In Stock, only 3 left!

0

25

Toro 109-0273

HOSE-FUEL

$26.99

$

Usually ships in 3-6 days

0

26

Toro 108-9698

HOSE-FUEL

$46.99

$

Usually ships in 3-6 days

0

27

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

28

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

29

Toro 117-5399

ADAPTOR-ORIFICE

$3.99

$

In Stock, only 2 left!

0

30

Toro 110-1876

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0
