74772 (MX 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 404314000 - 999999999) Caster, Wheel and Tire Assembly Parts Diagram
50" TimeCutter Zero-Turn Mower

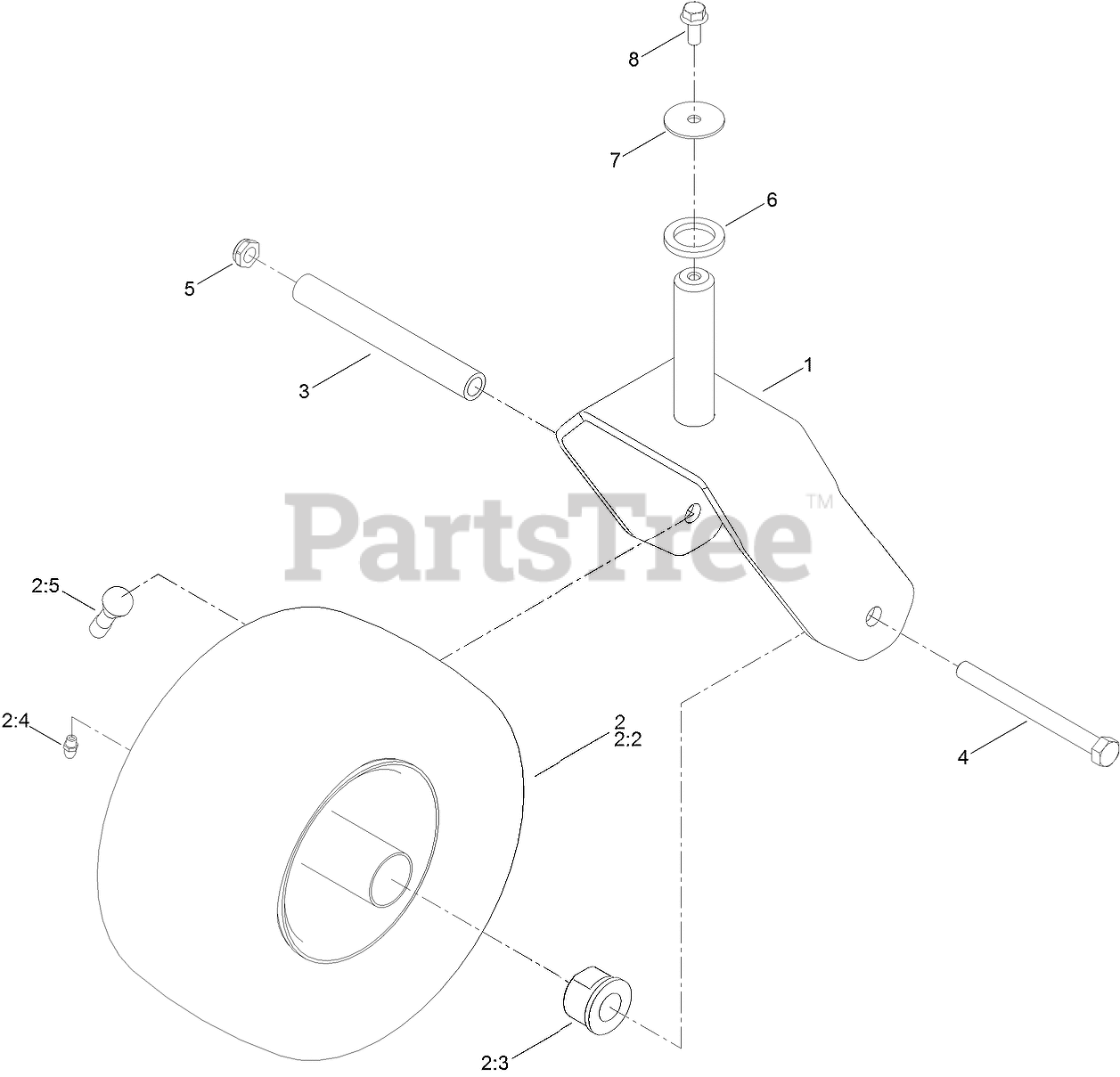

Caster, Wheel and Tire Assembly Parts Diagram
Toro 138-9833-01
FORK ASM
$99.99
$
Usually ships in 3-6 days
$85.99
$
In Stock, Qty 5
Toro 138-7553
TIRE
$113.99
$
In Stock, only 1 left!
Toro 114-1640
BUSHING-FLANGE
$13.99
$
In Stock, Qty 20+
Toro 302-5
FITTING-GREASE
$3.99
$
In Stock, Qty 20+
$8.49
$
Usually ships in 3-6 days
Toro 138-9803
SPACER-SPANNER
$9.49
$
Usually ships in 3-6 days
Toro 325-37
SCREW-HH
$7.49
$
In Stock, Qty 20+
Toro 3296-45
NUT-HEX
$4.49
$
In Stock, Qty 20+
Toro 117-7394
WASHER-THRUST
$2.99
$
In Stock, Qty 20+
Toro 3256-68
WASHER-FLAT
$3.49
$
In Stock, Qty 20+
Toro 3234-47
SCREW-HHF
$2.99
$
In Stock, Qty 20+
