74774 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 404310000 - 999999999) Motion Control Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

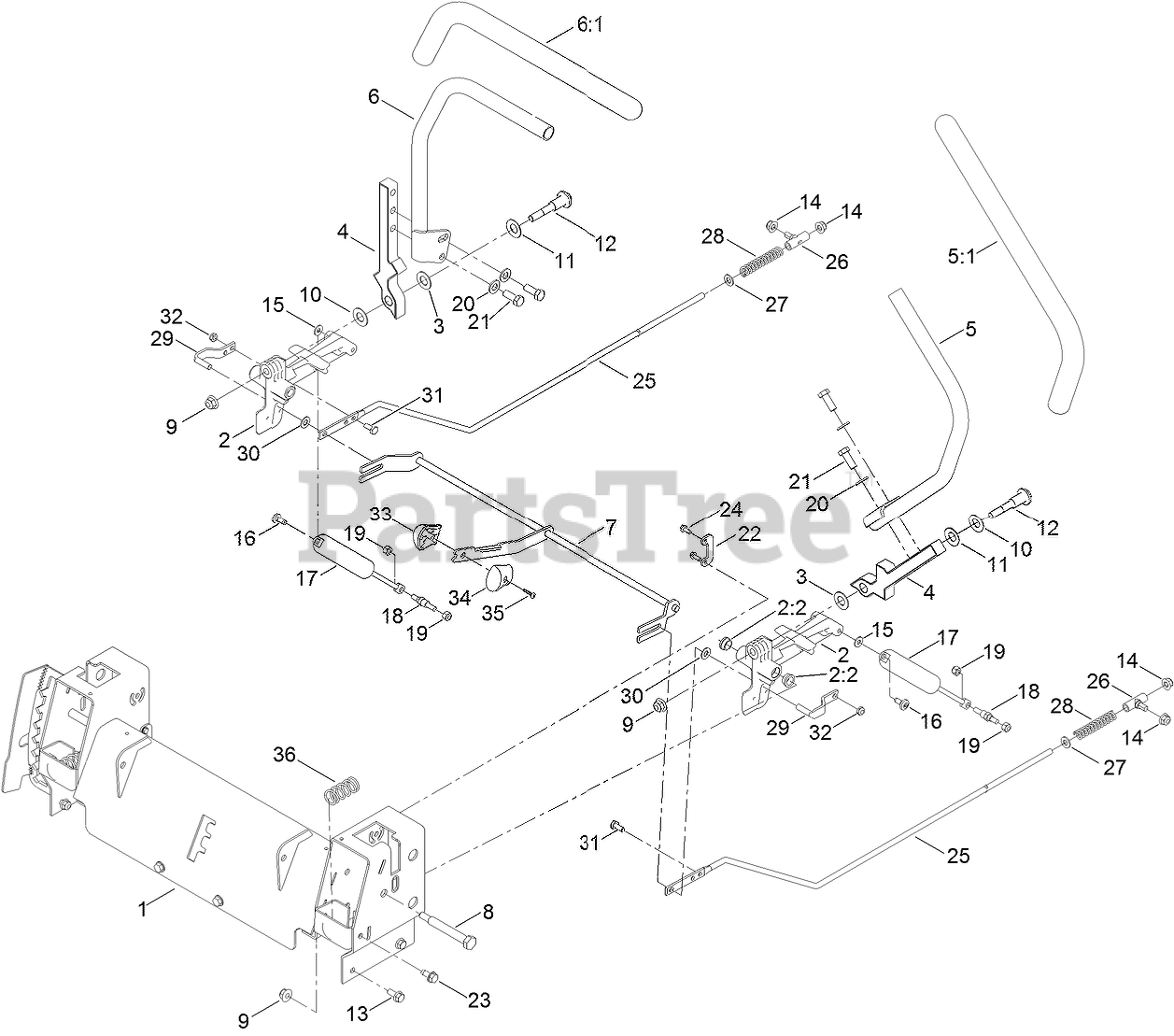

Motion Control Assembly Parts Diagram

  • Title

1

Toro 137-7038-03

CONTROL BOX ASM

$204.99

$

Usually ships in 3-6 days

0

2

Toro 119-3470

ACTUATOR ARM ASM

$29.99

$

In Stock, Qty 10

0

2:2

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

3

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, Qty 12

0

4

Toro 133-9299-05

ARM-CONTROL

$54.99

$

In Stock, Qty 20+

0

5

Toro 133-7055

HANDLE-CONTROL, LH

$71.99

$

In Stock, Qty 7

0

5:1

Toro 121-0726

GRIP

$15.99

$

In Stock, Qty 7

0

6

Toro 133-7057

HANDLE-CONTROL, RH

$71.99

$

In Stock, Qty 7

0

6:1

Toro 121-0726

GRIP

$15.99

$

In Stock, Qty 7

0

7

Toro 133-9301

SPEED CONTROL ASM

$88.99

$

Usually ships in 3-6 days

0

8

Toro 115-5099

BOLT-PIVOT

$5.99

$

In Stock, only 2 left!

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 5

0

11

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-1198

BOLT-PIVOT

$3.49

$

In Stock, Qty 20+

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

16

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

17

Toro 131-0964

DAMPER

$91.99

$

Usually ships in 3-6 days

0

18

Toro 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 117-5385

RETAINER

$1.49

$

Usually ships in 3-6 days

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

25

Toro 138-7217

ROD-HYDRO

$13.99

$

In Stock, only 2 left!

0

26

Toro 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$13.99

$

In Stock, Qty 5

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.99

$

In Stock, only 2 left!

0

29

Toro 121-1753

PIN-ROD, HYDRO

$6.99

$

Usually ships in 3-6 days

0

30

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 132-9368

KNOB-RH

$2.99

$

In Stock, only 3 left!

0

34

Toro 132-9369

KNOB-LH

$2.99

$

In Stock, only 3 left!

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

36

Toro 119-8876

SPRING-RETURN

$2.99

$

In Stock, Qty 20+

0
