74795 (SWX 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 401000000 - 402793286) Battery and Electrical Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

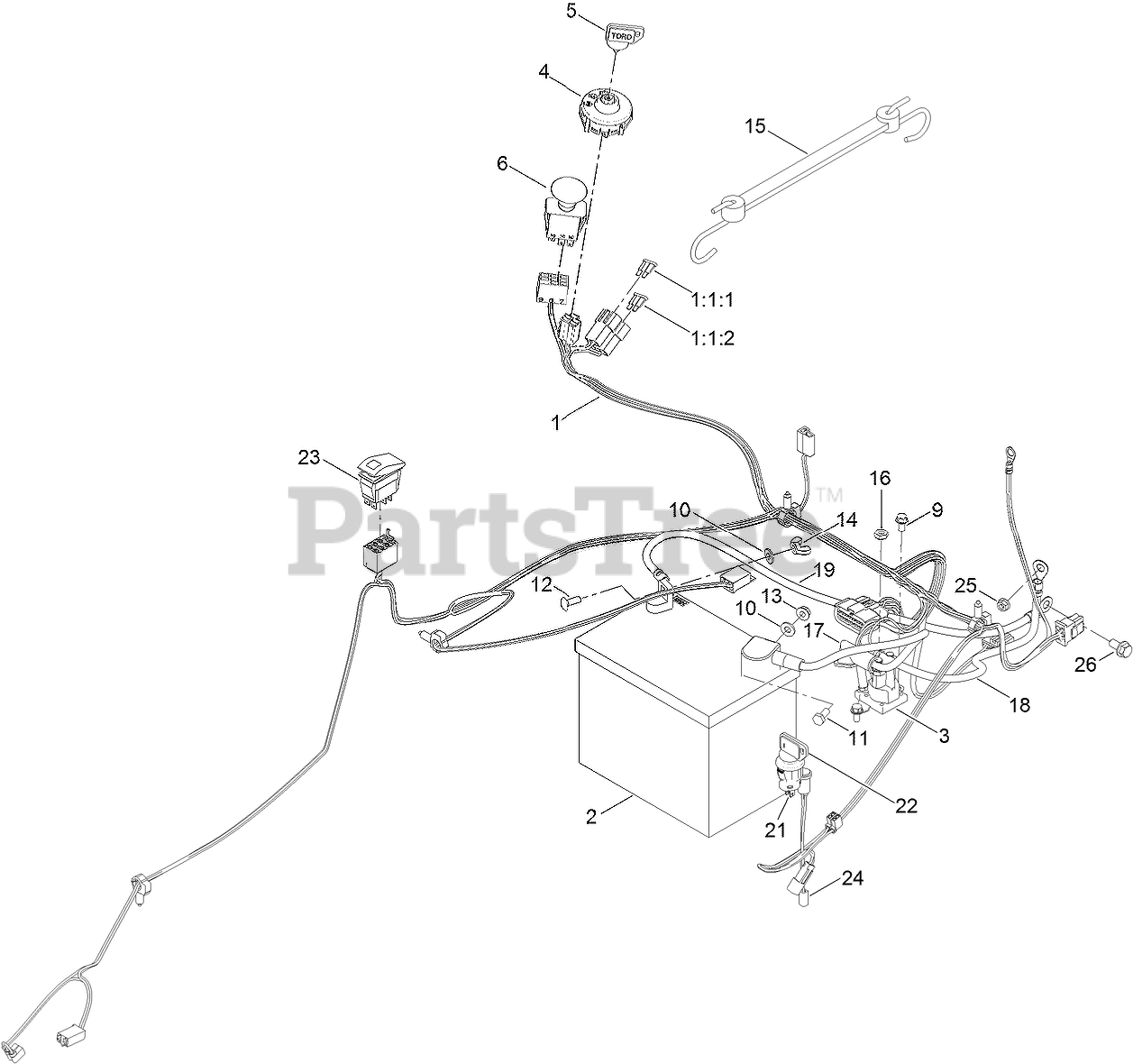

Battery and Electrical Assembly Parts Diagram

  • Title

1

Toro 136-7483

HARNESS-WIRE

$243.99

$

Usually ships in 3-6 days

0

1:1

HARNESS-WIRE

Note: Not illustrated

$

$

Not available

1:1

HARNESS-WIRE

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

1:1:2

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

2

Toro 105-1692

BATTERY

$

$

Not available

3

Toro 117-1197

SOLENOID

$50.99

$

Usually ships in 3-6 days

0

4

Toro 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

6

Toro 114-0279

SWITCH-PTO, ON-ON

$64.99

$

In Stock, Qty 20+

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 3 left!

0

15

Toro 104-2466

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 2 left!

0

16

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

17

Toro 119-8897

CABLE-BATTERY, RED

$25.99

$

In Stock, only 2 left!

0

18

Toro 121-0711

CABLE-BATTERY, POSITIVE

$15.99

$

Usually ships in 3-6 days

0

19

Toro 119-8899

CABLE-BATTERY, BLACK

$18.99

$

In Stock, only 2 left!

0

21

Toro 119-3068

SWITCH-MOMENTARY, N.O.

$22.99

$

In Stock, only 2 left!

0

22

Toro 131-3639

KEY-TORO

$4.99

$

In Stock, Qty 12

0

23

Toro 132-9302

SWITCH-ROCKER, (ON)-OFF-(ON)

$52.99

$

In Stock, only 2 left!

0

24

Toro 131-4136

LIGHT-INDICATOR

$30.99

$

Usually ships in 3-6 days

0

25

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3234-14

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0
