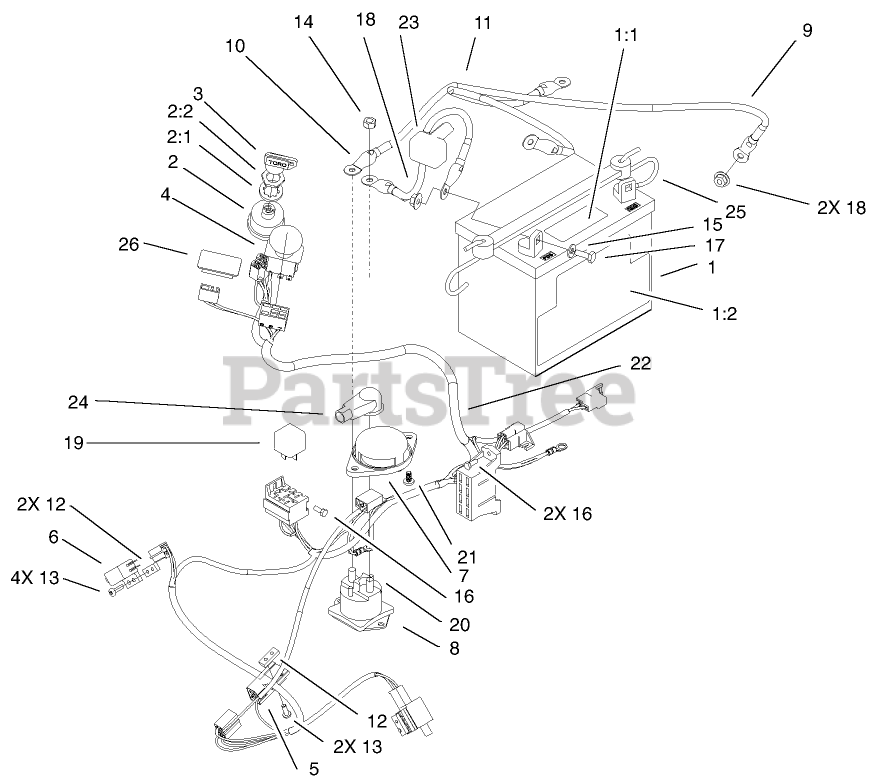

74801 (Z 18-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) Electrical Assembly Parts Diagram

52" TimeCutter Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 104-2491

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

1:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

1:2

Toro 104-5091

Decal-Battery

$

$

Currently unavailable

2

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$43.99

$

In Stock, Qty 20+

0

2:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

2:2

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 95-7489

SWITCH-PTO,ON-ON-NONE

$43.99

$

In Stock, only 3 left!

0

5

Toro 86-4690

See Supercession: 1-633111
(Superseded to 1-633111)

$23.99

$

In Stock, Qty 5

0

6

Toro 65-7410

See Supercession: 1-513051
(Superseded to 1-513051)

$21.99

$

In Stock, Qty 13

0

7

Toro 105-6959

SWITCH-SEAT

$

$

Not available

8

Toro 28-4210

SOLENOID

$85.99

$

In Stock, only 4 left!

0

9

Toro 28-3891

WIRE-SOLENOID/STARTER

$30.99

$

Usually ships in 3-6 days

0

10

Toro 93-1189

WIRE ASM

$

$

Not available

11

Toro 93-0324

CABLE

$

$

Not available

12

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

13

Toro 32144-8

SCREW-PPHTF

$7.49

$

Usually ships in 3-6 days

0

14

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 105-6968

SCREW-SEAT, SWITCH

$4.49

$

Usually ships in 3-6 days

0

22

Toro 105-1934

HARNESS-WIRE

$

$

Not available

23

Toro 28-8080

BOOT-TERMINAL

$27.99

$

Usually ships in 3-6 days

0

24

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$

$

Not available

25

Toro 104-2466

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 2 left!

0

26

Toro 99-7420

PLUG-HOLE

$9.49

$

Usually ships in 3-6 days

0
