74816 (Z 4800) - Toro 48" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) 48 Inch Deck Assembly Parts Diagram

48" Titan Zero-Turn Mower

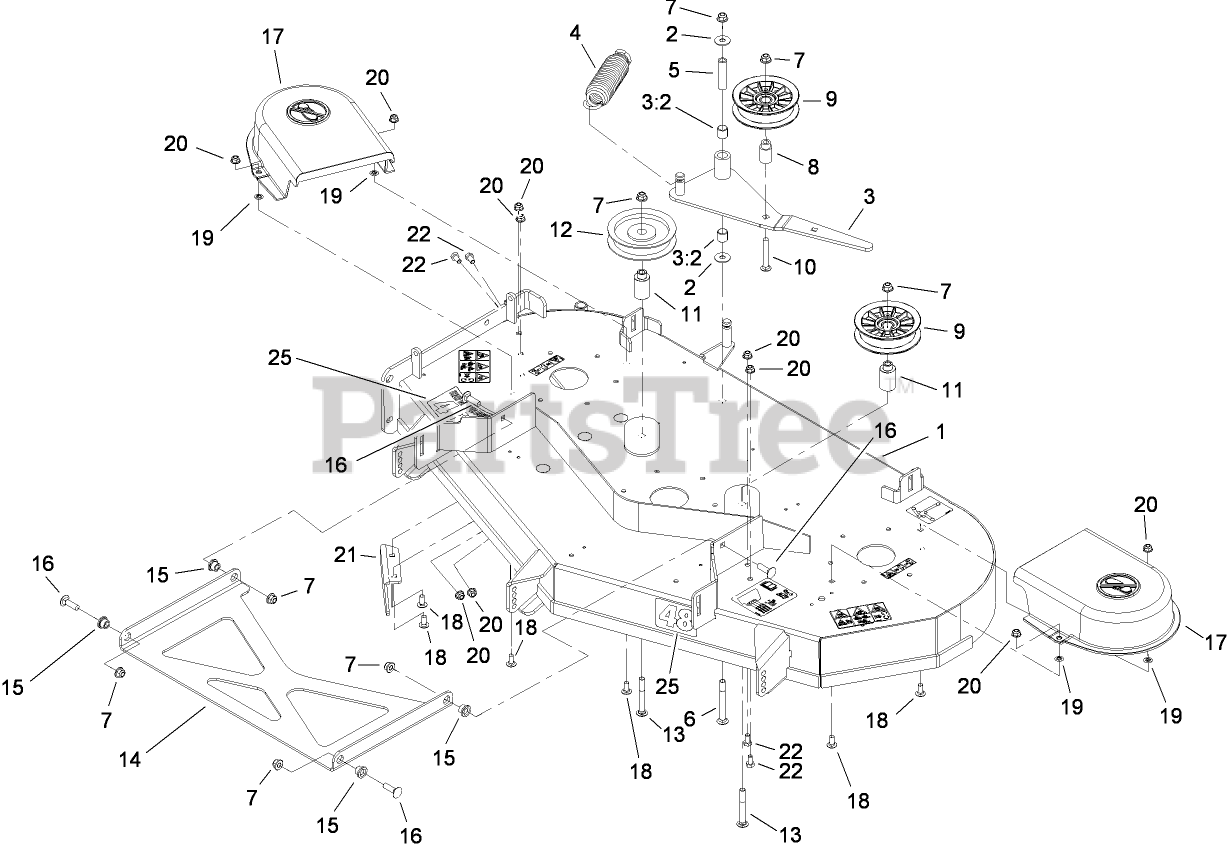

48 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 109-6253

48 INCH DECK ASM

$

$

Not available

2

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-9158

IDLER ARM ASM

$211.99

$

Usually ships in 3-6 days

0

3:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

4

Toro 103-3330

See Supercession: 116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

5

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

6

Toro 3231-11

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

9

Toro 109-8891

SHEAVE AND BEARING ASM

$37.99

$

In Stock, Qty 11

0

10

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

11

Toro 109-6572

BUSHING-IDLER

$16.99

$

In Stock, Qty 6

0

12

Toro 1-603843

See Supercession: 132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

13

Toro 109-6868

BOLT-CARRIAGE

$5.99

$

In Stock, Qty 12

0

14

Toro 109-3723-01

STRUT-DECK

$230.99

$

Usually ships in 3-6 days

0

15

Toro 109-8788

BUSHING-FLANGED

$7.49

$

In Stock, Qty 20+

0

16

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

17

Toro 109-3449

SHIELD-BELT

$41.99

$

In Stock, Qty 5

0

18

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 109-5667

RING-RETAINING, BOLT

$7.99

$

In Stock, only 2 left!

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 109-5498-03

BAFFLE-DISCHARGE

$

$

Not available

22

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 109-9145

DECAL-TITAN, 48 INCH DECK

$

$

Not available
