74818 (Z 5200) - Toro 52" Titan Zero-Turn Mower (SN: 280000001 - 280999999) (2008) 52 Inch Deck and Discharge Chute Assembly Parts Diagram

52" Titan Zero-Turn Mower

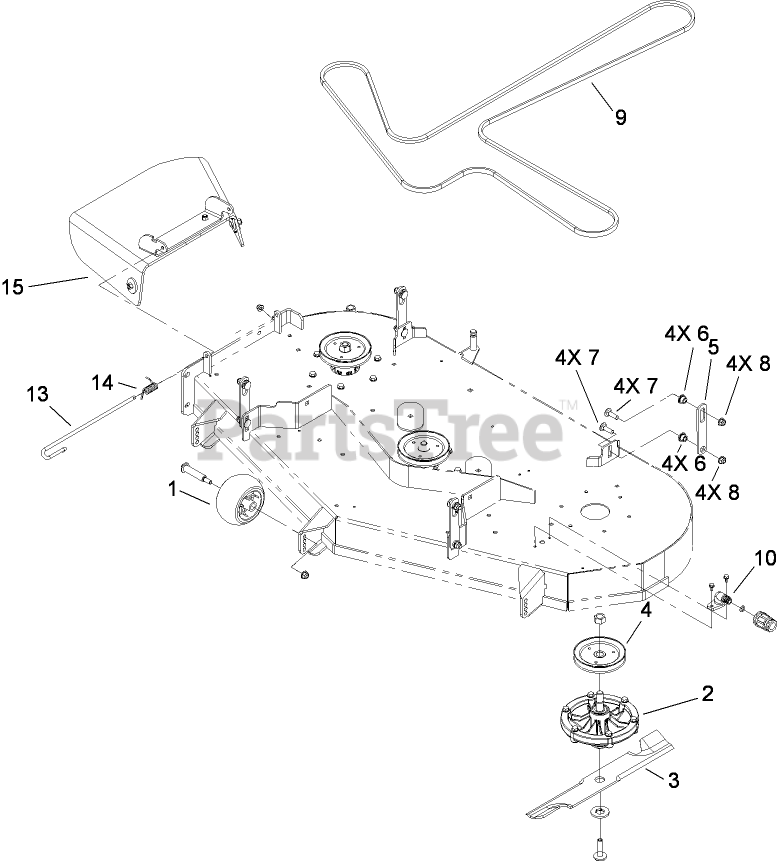

52 Inch Deck and Discharge Chute Assembly Parts Diagram

  • Title

1

Toro 109-6388

ANTI-SCALP ROLLER KIT

$47.99

$

In Stock, Qty 8

0

2

Toro 109-8744

See Supercession: 121-5681
(Superseded to 116-5712)

$222.99

$

In Stock, only 2 left!

0

3

Toro 109-6873

BLADE-NOTCHED
(Superseded to 103-6402-S)

$34.99

$

In Stock, Qty 20+

0

4

Toro 109-3671

See Supercession: 116-4874
(Superseded to 116-4874)

$104.99

$

In Stock, only 1 left!

0

5

Toro 109-3410

HANGER-DECK

$12.99

$

In Stock, only 3 left!

0

6

Toro 109-8788

BUSHING-FLANGED

$7.49

$

In Stock, Qty 20+

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-3661

BELT
(Superseded to 109-3661-SL)

$99.99

$

In Stock, Qty 15

0

10

Toro 109-6393

WASHOUT PORT KIT

$

$

Not available

13

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 3 left!

0

14

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

15

Toro 114-1651

RUBBER DEFLECTOR ASM

$283.99

$

Usually ships in 3-6 days

0
