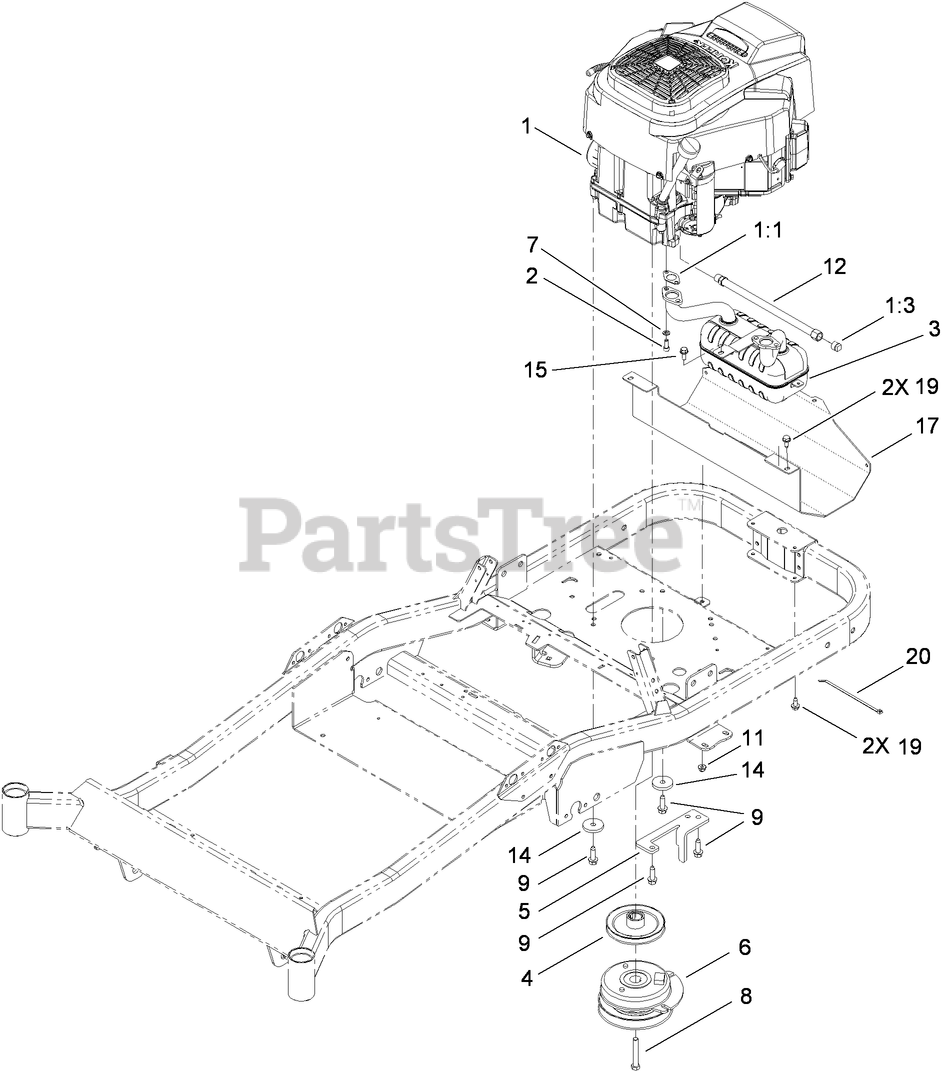

74832 (ZX 5450) - Toro 54" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) Engine Assembly Parts Diagram

54" Titan Zero-Turn Mower

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, PS-SV830-0016

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, PS-SV830-0016

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:3

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

3

Toro 117-7463

MUFFLER-TWIN, KOHLER

$314.99

$

Usually ships in 3-6 days

0

4

Toro 115-2568

See Supercession: 125-5576
(Superseded to 125-5576)

$175.99

$

Usually ships in 3-6 days

0

5

Toro 117-1269-03

BRACKET-STOP, PTO

$37.99

$

Usually ships in 3-6 days

0

6

Toro 117-1252

CLUTCH-PTO

$914.99

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3212-11

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

9

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

14

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Toro 117-5330-03

SHIELD-HEAT

$

$

Not available

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
