74864 (X 4850) - Toro 48" TimeCutter HD Zero-Turn Mower (SN: 400000000 - 401999999) Frame Assembly Parts Diagram

48" TimeCutter HD Zero-Turn Mower

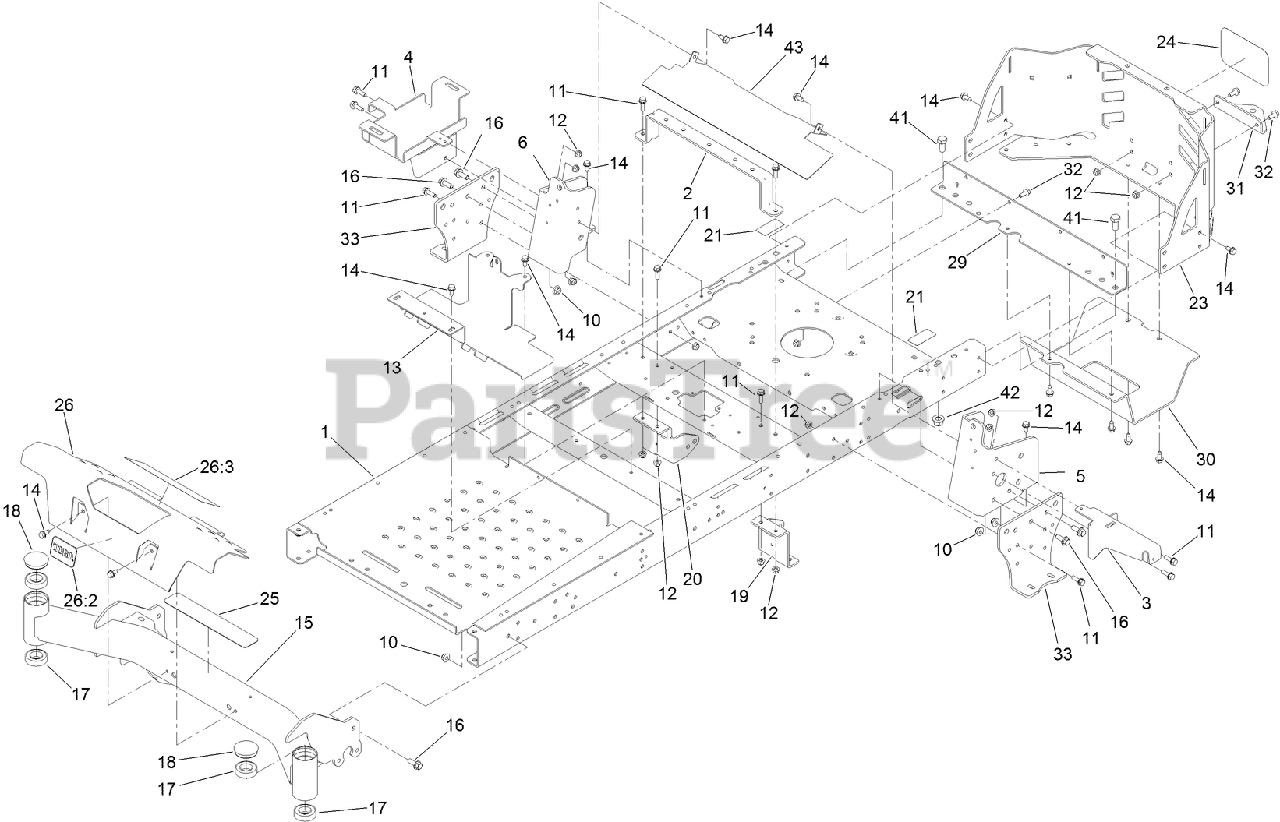

Frame Assembly Parts Diagram

  • Title

1

Toro 133-1191-01

FRAME ASM

$558.99

$

Usually ships in 3-6 days

0

2

Toro 135-0687-03

BRACE-SEAT, REAR (WIDE)

$22.99

$

Usually ships in 3-6 days

0

3

Toro 133-7051-03

BRACKET-SUPPORT, POD (LH)

$33.99

$

Usually ships in 3-6 days

0

4

Toro 136-4185-03

TRAY-BATTERY

$99.99

$

Usually ships in 3-6 days

0

5

Toro 133-4383-01

BRACKET-MOUNTING, LH

$80.99

$

Usually ships in 3-6 days

0

6

Toro 133-4384-01

BRACKET-MOUNTING, RH

$80.99

$

Usually ships in 3-6 days

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 133-4485-03

BRACKET-MOUNT

$77.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 133-4310-01

AXLE-FRONT

$503.99

$

Usually ships in 3-6 days

0

16

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

17

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

18

Toro 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 20+

0

19

Toro 131-0902-01

MOUNT-HYDRO, FRONT (LH)
(Superseded to 139-3211-01)

$16.99

$

In Stock, only 3 left!

0

20

Toro 131-0901-01

MOUNT-HYDRO, FRONT (RH)
(Superseded to 137-7020-01)

$17.99

$

In Stock, only 2 left!

0

21

Toro 121-2989

DECAL-BYPASS

$5.99

$

In Stock, only 1 left!

0

23

Toro 133-4431-03

GUARD-ENGINE

$265.99

$

Usually ships in 3-6 days

0

24

Toro 99-4693

DECAL

$27.99

$

In Stock, only 2 left!

0

25

Toro 133-9253

TREAD-STEP

$3.99

$

Usually ships in 3-6 days

0

26

Toro 136-9190

FOOTREST

$175.99

$

Usually ships in 3-6 days

0

26:2

Toro 63-3280

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 4 left!

0

26:3

Toro 133-9255

DECAL-DANGER

$9.49

$

Usually ships in 3-6 days

0

29

Toro 133-4303-01

See Supercession: 137-7016-01
(Superseded to 137-7016-01)

$33.99

$

Usually ships in 3-6 days

0

30

Toro 133-4429-03

GUARD-MUFFLER

$67.99

$

Usually ships in 3-6 days

0

31

Toro 117-1232-03

BRACKET-HITCH

$33.99

$

In Stock, only 1 left!

0

32

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

33

Toro 133-1201-03

MOUNT-HYDRO

$34.99

$

Usually ships in 3-6 days

0

41

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

42

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

43

Toro 136-9183-03

SHIELD

$44.99

$

Usually ships in 3-6 days
