74864 (X 4850) - Toro 48" TimeCutter HD Zero-Turn Mower (SN: 402000000 - 999999999) Body Styling and Fuel Tank Assembly Parts Diagram

48" TimeCutter HD Zero-Turn Mower

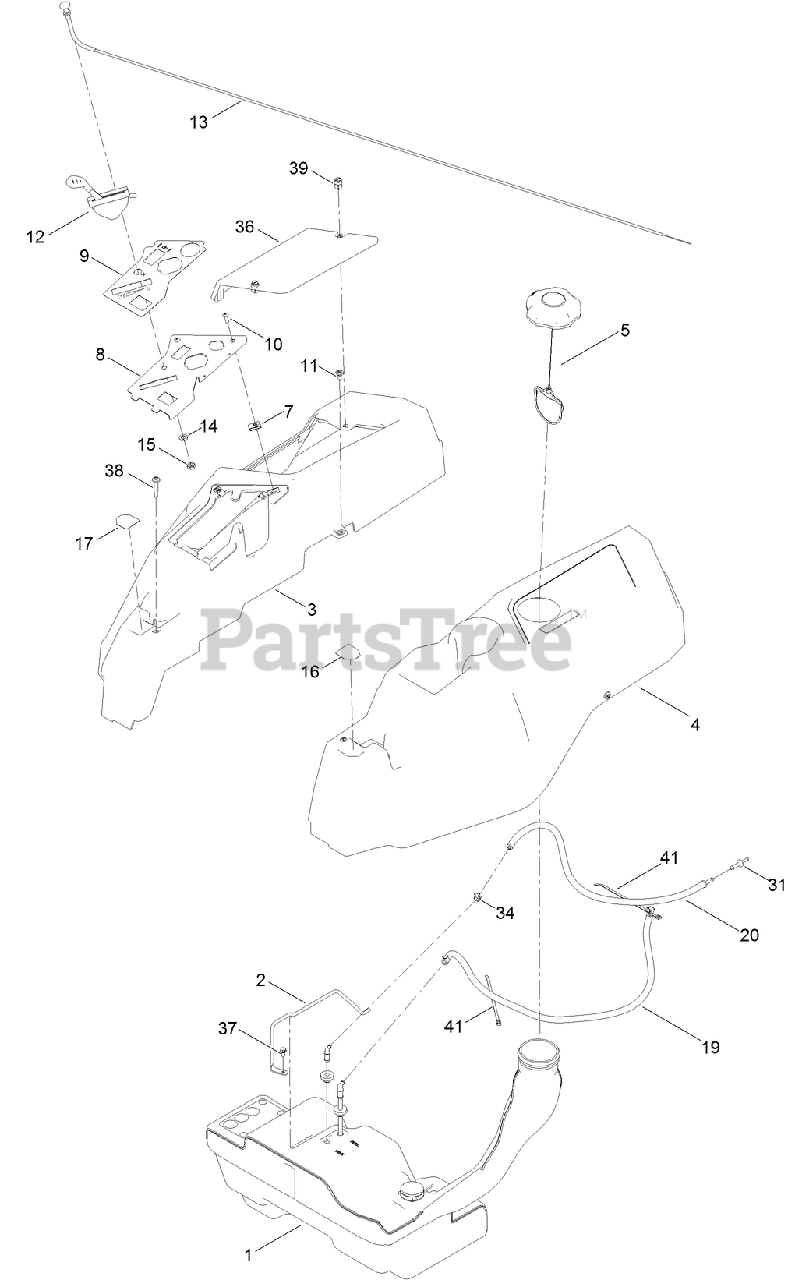

Body Styling and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 133-4484

FUEL TANK ASM
(Superseded to 144-5303)

$332.99

$

Usually ships in 3-6 days

0

2

Toro 136-4180

ROD-HOLD DOWN

$13.99

$

Usually ships in 3-6 days

0

3

Toro 133-9307

POD-RH

$120.99

$

In Stock, only 1 left!

0

4

Toro 133-9315

POD-LH

$120.99

$

Usually ships in 3-6 days

0

5

Toro 137-4119

CAP-FUEL, RATCHETING

$30.99

$

In Stock, Qty 20+

0

7

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Toro 133-9346-03

PANEL-CONTROL

$80.99

$

Usually ships in 3-6 days

0

9

Toro 133-9263

DECAL-CONTROL W/CHOKE

$17.99

$

Usually ships in 3-6 days

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Toro 136-5622

CABLE-THROTTLE

$47.99

$

In Stock, only 2 left!

0

13

Toro 112-9753

CABLE-CHOKE

$50.99

$

In Stock, Qty 10

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

15

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

16

Toro 136-4243

DECAL-LEVER, CONTROL (LH)

$3.99

$

Usually ships in 3-6 days

0

17

Toro 136-4244

DECAL-LEVER, CONTROL (RH)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 109-3491

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

20

Toro 110-4103

HOSE-FUEL

$23.99

$

In Stock, only 1 left!

0

31

Toro 117-5399

ADAPTOR-ORIFICE

$3.99

$

In Stock, only 2 left!

0

34

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

36

Toro 133-9308

COVER-BATTERY

$27.99

$

In Stock, Qty 11

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-4195

SCREW-SHOULDER

$6.49

$

In Stock, only 2 left!

0

39

Toro 121-5840

FASTENER

$6.99

$

In Stock, Qty 20+

0

41

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
