74871 (MX 4880) - Toro 48" Titan Zero-Turn Mower (SN: 311000001 - 311999999) (2011) Main Frame Assembly Parts Diagram

48" Titan Zero-Turn Mower

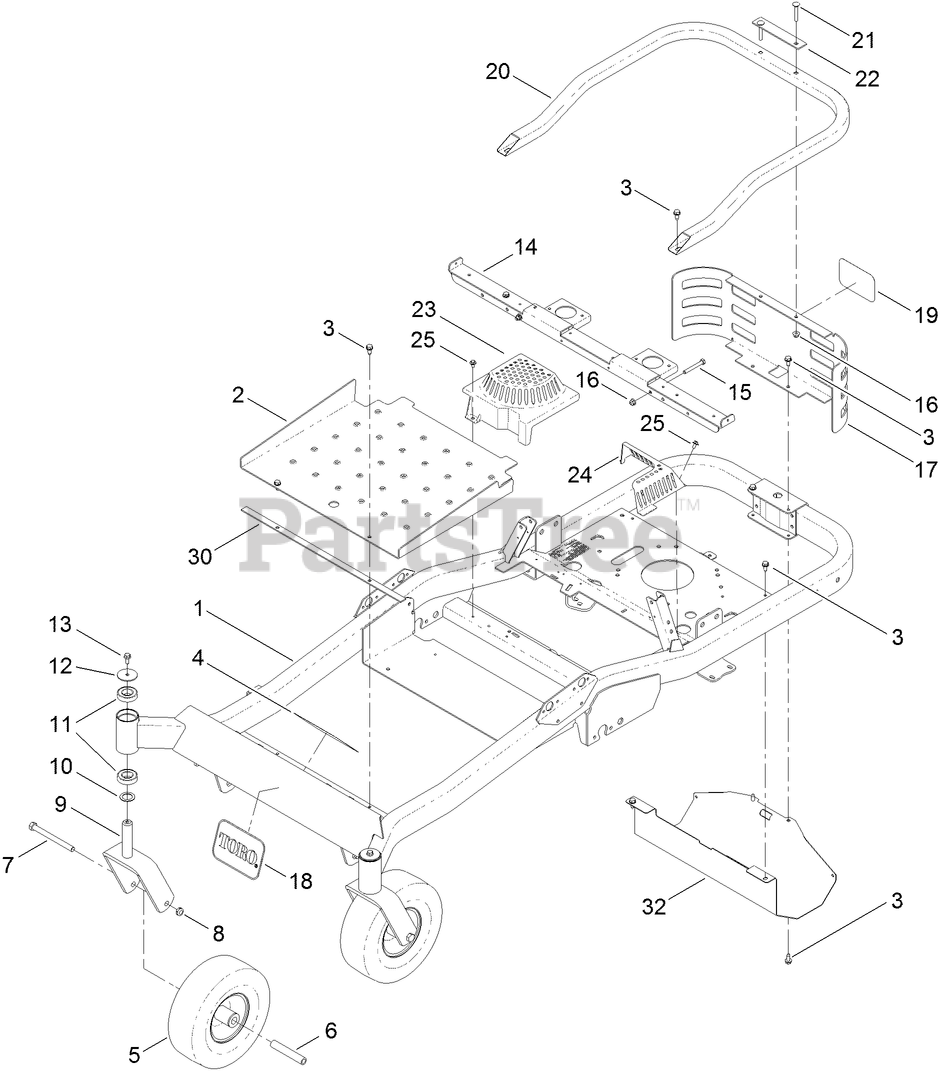

Main Frame Assembly Parts Diagram

  • Title

1

Toro 117-7356-01

FRAME

$

$

Not available

2

Toro 115-2531-05

PAN-FLOOR

$249.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 120-5466

DECAL-SAFETY

$15.99

$

Usually ships in 3-6 days

0

5

Toro 120-5506

WHEEL AND TIRE ASM

$242.99

$

Usually ships in 3-6 days

0

6

Toro 120-2228

SPACER-SPANNER

$17.99

$

In Stock, only 2 left!

0

7

Toro 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Toro 119-8923-01

FORK-CASTER

$166.99

$

In Stock, only 2 left!

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

12

Toro 109-3724

WASHER

$3.99

$

In Stock, only 1 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Toro 117-7451-03

SUPPORT-SEAT

$

$

Not available

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 120-2248-03

GUARD-REAR

$147.99

$

Usually ships in 3-6 days

0

18

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

19

Toro 105-8278

DECAL

$12.99

$

In Stock, only 2 left!

0

20

Toro 115-2565-01

GUARD-REAR, TUBE

$

$

Not available

21

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

22

Toro 115-5061-01

PLATE-SPACER

$

$

Not available

23

Toro 117-1241

COVER-FAN, RH

$22.99

$

Usually ships in 3-6 days

0

24

Toro 117-1242

COVER-FAN, LH

$15.99

$

Usually ships in 3-6 days

0

25

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

30

Toro 117-7238

STRIP-VIBRATION, ANTI

$

$

Not available

32

Toro 120-2247-03

See Supercession: 131-4137-03
(Superseded to 131-4137-03)

$91.99

$

Usually ships in 3-6 days

0
