74873 (MX 6080) - Toro 60" Titan Zero-Turn Mower (SN: 312000001 - 312999999) (2012) 60 Inch Deck Assembly Parts Diagram

60" Titan Zero-Turn Mower

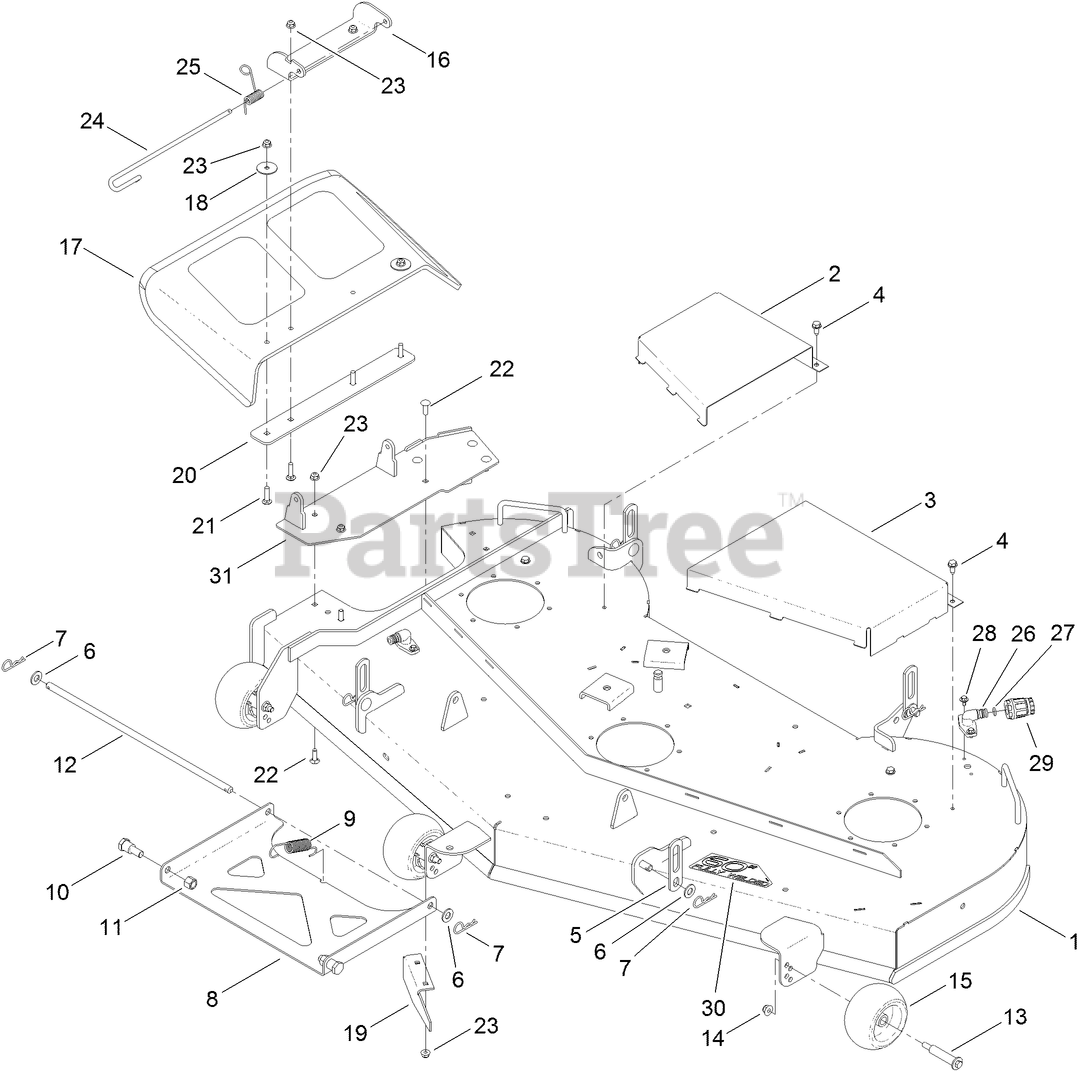

60 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 120-7149

60 INCH DECK AND DECAL ASM

$2552.99

$

Usually ships in 3-6 days

0

2

Toro 115-5036-03

See Supercession: 115-5036-05
(Superseded to 115-5036-05)

$77.99

$

Usually ships in 3-6 days

0

3

Toro 115-5037-03

See Supercession: 115-5037-05
(Superseded to 115-5037-05)

$77.99

$

In Stock, only 1 left!

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 119-8949

LINK-LIFT

$17.99

$

Usually ships in 3-6 days

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

8

Toro 115-5027-01

PAN-PIVOT, DECK

$201.99

$

Usually ships in 3-6 days

0

9

Toro 115-9652

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

10

Toro 94-5823

See Supercession: 130-8185
(Superseded to 130-8185)

$12.99

$

In Stock, only 4 left!

0

11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 115-5030

ROD-DECK, PIVOT

$35.99

$

Usually ships in 3-6 days

0

13

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

16

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$66.99

$

In Stock, only 2 left!

0

17

Toro 117-1270

DEFLECTOR

$87.99

$

Usually ships in 3-6 days

0

18

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

19

Toro 119-3388-03

BAFFLE-CUTOFF

$29.99

$

Usually ships in 3-6 days

0

20

Toro 115-5048-03

PLATE-DEFLECTOR

$49.99

$

In Stock, only 2 left!

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 3 left!

0

25

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, Qty 16

0

26

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

27

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

28

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

29

Toro 95-3270

CONNECTOR-HOSE

$27.99

$

In Stock, Qty 20+

0

30

Toro 117-5303

DECAL

$19.99

$

Usually ships in 3-6 days

0

31

Toro 119-3356-03

PLATE

$179.99

$

Usually ships in 3-6 days

0
