74887 (XS 4850) - Toro 48" Titan Zero-Turn Mower (SN: 407000000 - 409378060) Body Styling and Fuel Tank Assembly Parts Diagram

48" Titan Zero-Turn Mower

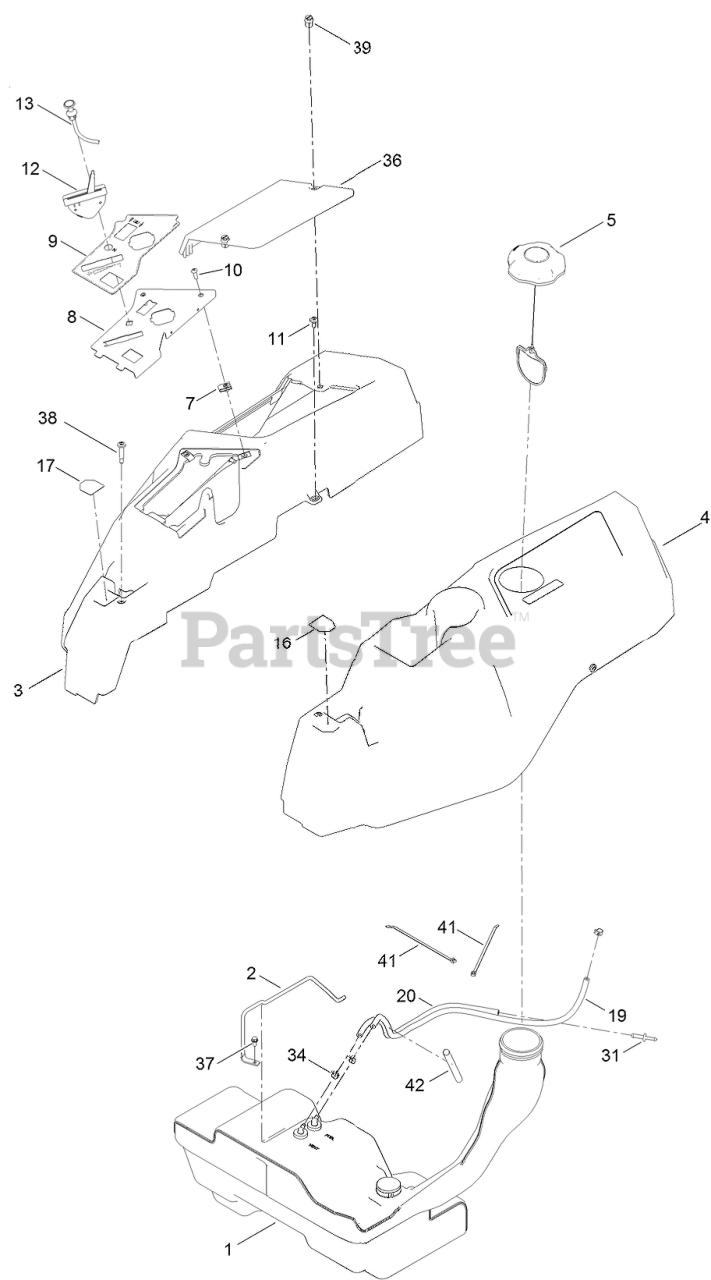

Body Styling and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 133-4484

FUEL TANK ASM
(Superseded to 144-5303)

$332.99

$

Usually ships in 3-6 days

0

2

Toro 136-4180

ROD-HOLD DOWN

$13.99

$

Usually ships in 3-6 days

0

3

Toro 133-9307

POD-RH

$120.99

$

In Stock, only 1 left!

0

4

Toro 133-9315

POD-LH

$120.99

$

Usually ships in 3-6 days

0

5

Toro 137-4119

CAP-FUEL, RATCHETING

$30.99

$

In Stock, Qty 20+

0

7

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Toro 139-7486-03

PANEL-CONTROL

$23.99

$

Usually ships in 3-6 days

0

9

Toro 139-7473

DECAL-PANEL, CONTROL

$14.99

$

Usually ships in 3-6 days

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Toro 139-5808

CABLE-THROTTLE

$39.99

$

In Stock, only 2 left!

0

13

Toro 139-2402

CABLE-CHOKE

$25.99

$

In Stock, only 4 left!

0

16

Toro 136-4243

DECAL-LEVER, CONTROL (LH)

$3.99

$

Usually ships in 3-6 days

0

17

Toro 136-4244

DECAL-LEVER, CONTROL (RH)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 109-0281

HOSE-FUEL

$17.99

$

In Stock, only 2 left!

0

20

Toro 110-5701

HOSE-FUEL

$18.99

$

In Stock, only 2 left!

0

31

Toro 117-5399

ADAPTOR-ORIFICE

$3.99

$

In Stock, only 2 left!

0

34

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

36

Toro 133-9308

COVER-BATTERY

$27.99

$

In Stock, Qty 12

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-4195

SCREW-SHOULDER

$6.49

$

In Stock, only 2 left!

0

39

Toro 121-5840

FASTENER

$6.99

$

In Stock, Qty 20+

0

41

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

42

Toro 138-2522

SLEEVE-FUEL LINE PROTECTOR

$7.99

$

Usually ships in 3-6 days

0
