74887 (XS 4850) - Toro 48" Titan Zero-Turn Mower (SN: 407000000 - 409378060) Motion Control Assembly Parts Diagram

48" Titan Zero-Turn Mower

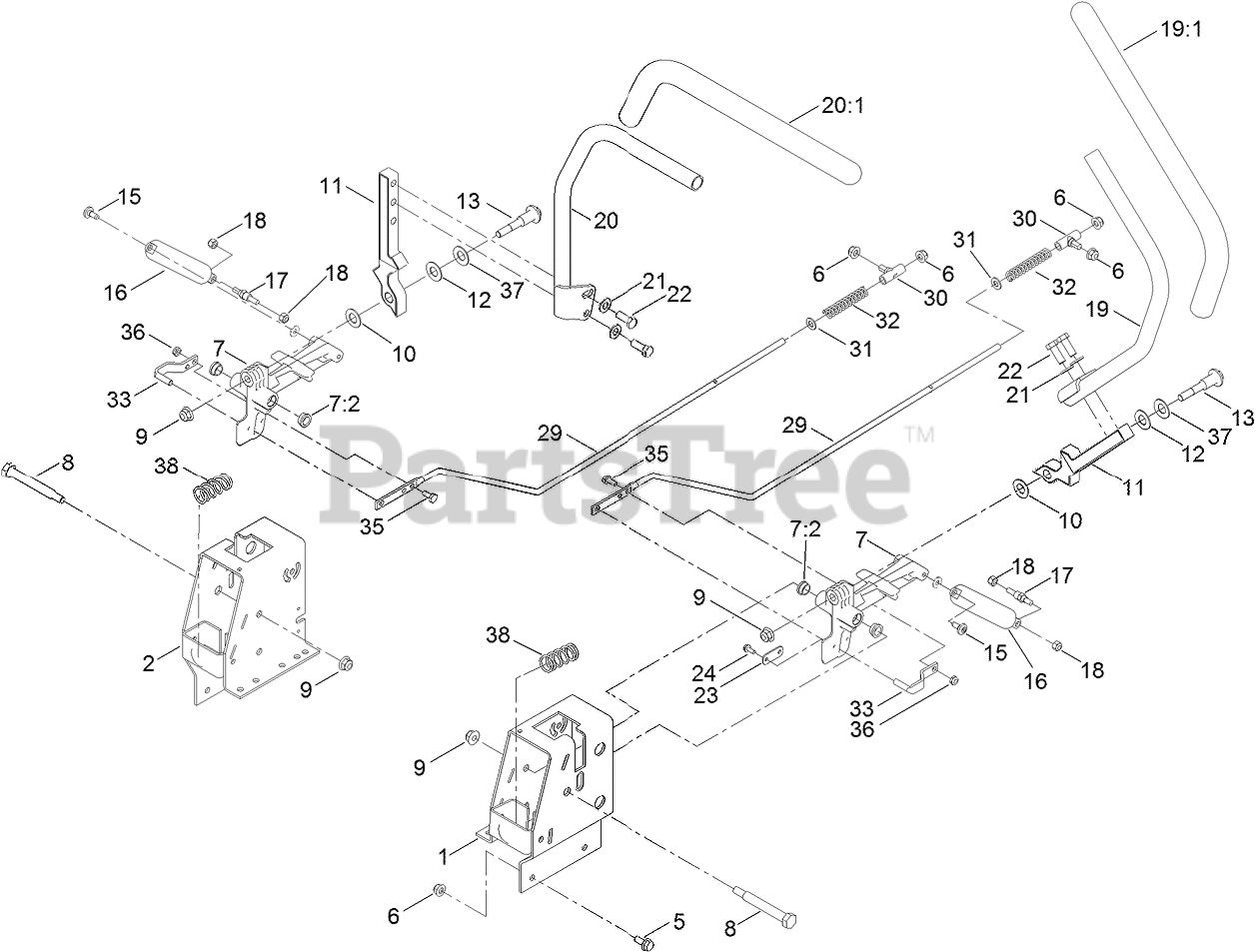

Motion Control Assembly Parts Diagram

  • Title

1

Toro 136-5614-03

BOX-CONTROL, LH

$46.99

$

Usually ships in 3-6 days

0

2

Toro 136-5613-03

BOX-CONTROL, RH

$46.99

$

Usually ships in 3-6 days

0

5

Toro 139-2598

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

6

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 119-3470

ACTUATOR ARM ASM

$29.99

$

In Stock, Qty 10

0

7:2

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

8

Toro 115-5099

BOLT-PIVOT

$5.99

$

In Stock, only 2 left!

0

9

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, Qty 12

0

11

Toro 136-5570-05

ARM-CONTROL

$38.99

$

In Stock, only 2 left!

0

12

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 5

0

13

Toro 139-2556

BOLT-PIVOT

$5.99

$

In Stock, only 2 left!

0

15

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Toro 132-6853

DAMPER-NON CAVITATING

$38.99

$

In Stock, Qty 8

0

17

Toro 138-7215

STUD-DAMPER

$2.99

$

In Stock, Qty 20+

0

18

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

19

Toro 133-7055

HANDLE-CONTROL, LH

$71.99

$

In Stock, Qty 7

0

19:1

Toro 121-0726

GRIP

$15.99

$

In Stock, Qty 7

0

20

Toro 133-7057

HANDLE-CONTROL, RH

$71.99

$

In Stock, Qty 7

0

20:1

Toro 121-0726

GRIP

$15.99

$

In Stock, Qty 7

0

21

Toro 115-1166

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0

22

Toro 139-2600

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 140-3458

PLATE-STOP,HYDRO

$1.49

$

Usually ships in 3-6 days

0

24

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 138-7217

ROD-HYDRO

$13.99

$

In Stock, only 2 left!

0

30

Toro 138-7218

MOUNT-ROD, HYDRO

$13.99

$

In Stock, Qty 5

0

31

Toro 120-9683

WASHER-PLAIN

$3.49

$

In Stock, only 1 left!

0

32

Toro 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

33

Toro 121-1753

PIN-ROD, HYDRO

$6.99

$

Usually ships in 3-6 days

0

35

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

36

Toro 137-3091

NUT-HEX

$1.49

$

In Stock, Qty 10

0

37

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

38

Toro 138-7219

SPRING-RETURN

$1.99

$

In Stock, only 3 left!

0
