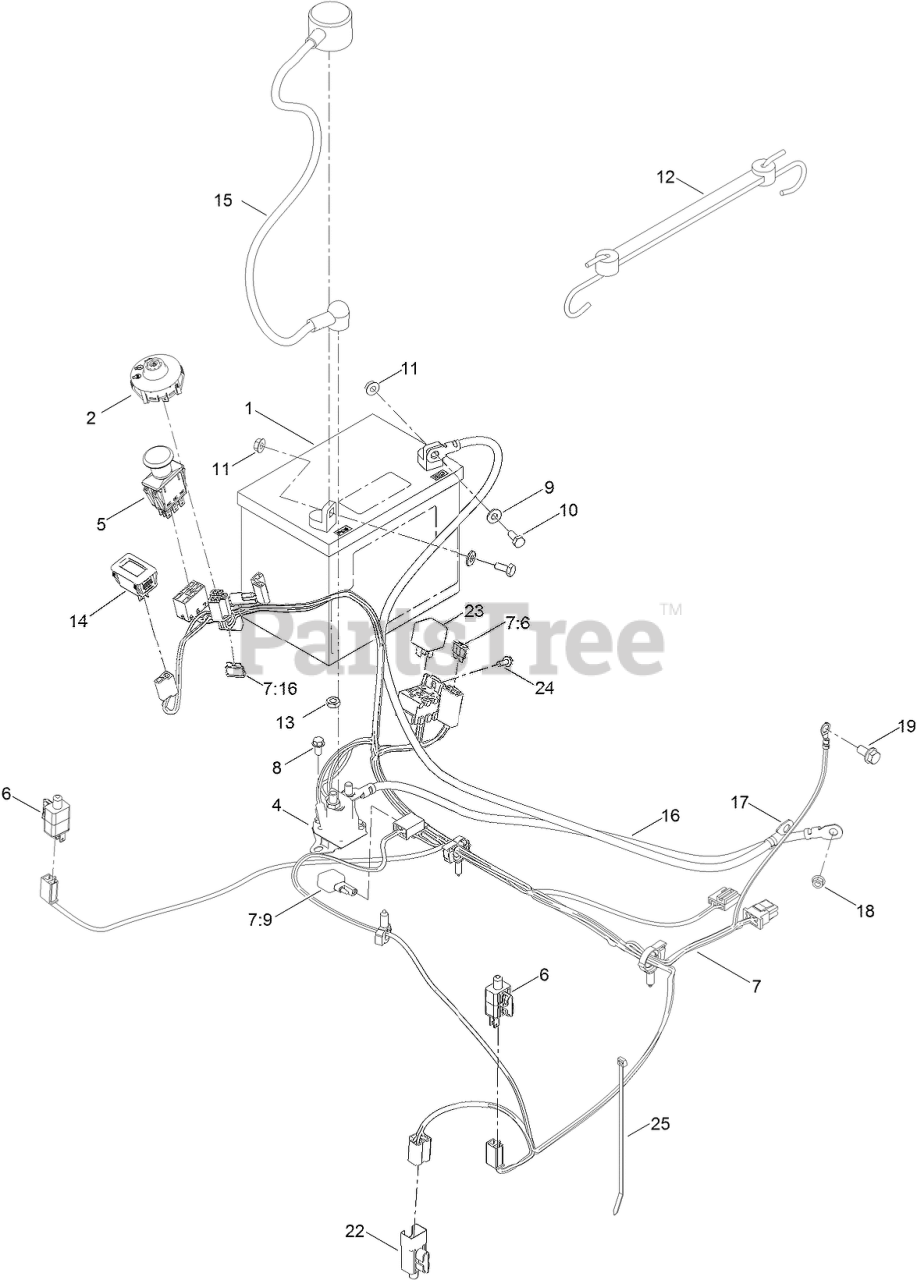

74889 (XS 5450) - Toro 54" Titan Zero-Turn Mower (SN: 407000000 - 409239999) Electrical Assembly Parts Diagram

54" Titan Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

3

Toro 63-8360

KEY-IGNITION

Note: Not illustrated

$6.49

$

In Stock, Qty 20+

0

4

Toro 117-1197

SOLENOID

$50.99

$

In Stock, Qty 20+

0

5

Toro 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 7

0

6

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Toro 137-7002

HARNESS-WIRE

$243.99

$

Usually ships in 3-6 days

0

7:6

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

7:9

Toro 100-4918

DIODE

$25.99

$

Usually ships in 3-6 days

0

7:16

Toro 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 8

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

10

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 139-2575

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 2 left!

0

13

Toro 139-2580

NUT-HJ

$1.49

$

Usually ships in 3-6 days

0

14

Toro 120-2244

HOURMETER

$76.99

$

In Stock, Qty 5

0

15

Toro 115-3864

CABLE-BATTERY, POSITIVE

$34.99

$

In Stock, only 2 left!

0

16

Toro 136-7473

CABLE-BATTERY, POSITIVE

$26.99

$

Usually ships in 3-6 days

0

17

Toro 117-7240

CABLE-BATTERY, NEGATIVE

$26.99

$

Usually ships in 3-6 days

0

18

Toro 139-2619

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

19

Toro 139-2593

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 99-7408

SWITCH-REVERSE

$31.99

$

In Stock, Qty 8

0

23

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 10

0

24

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
