74892 (MX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 315001301 - 315999999) (2015) Deck Assembly Parts Diagram

54" Titan Zero-Turn Mower

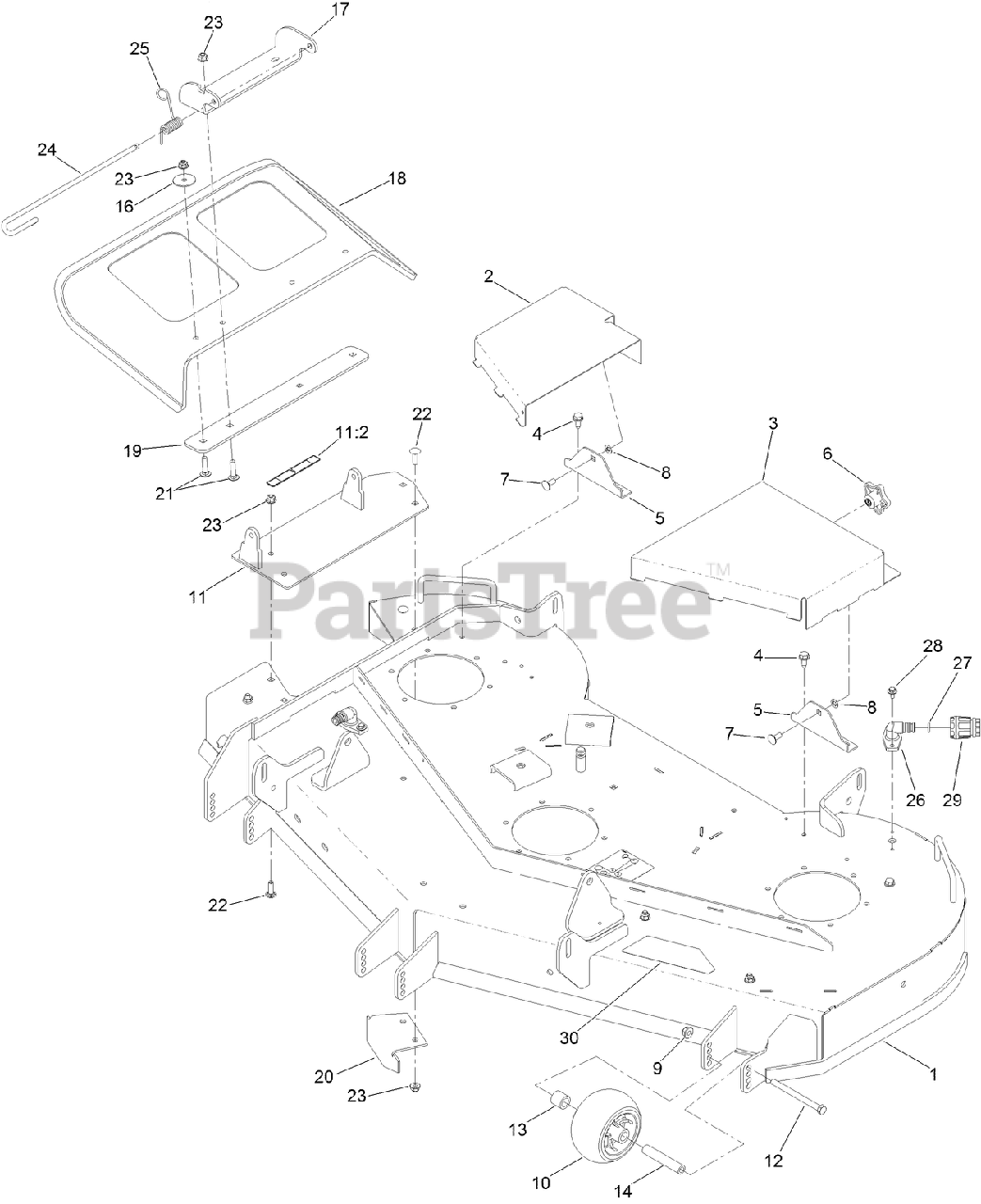

Deck Assembly Parts Diagram

  • Title

1

Toro 131-4141

54 INCH DECK ASM

$2357.99

$

Usually ships in 3-6 days

0

2

Toro 127-3297-05

COVER-BELT, RH

$50.99

$

In Stock, only 1 left!

0

3

Toro 127-3298-05

COVER-BELT, LH

$50.99

$

Usually ships in 3-6 days

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 127-3290-03

BRACKET-SUPPORT

$18.99

$

Usually ships in 3-6 days

0

6

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 109-5667

RING-RETAINING, BOLT

$7.99

$

In Stock, only 2 left!

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

11

Toro 130-0763

PIVOT-DEFLECTOR

$103.99

$

Usually ships in 3-6 days

0

11:2

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

12

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

13

Toro 104-0892

SPACER-AXLE, REAR

$5.99

$

In Stock, Qty 17

0

14

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

16

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

17

Toro 114-1648-05

BRACKET-DEFLECTOR, UPPER

$49.99

$

In Stock, only 2 left!

0

18

Toro 117-1270

DEFLECTOR

$87.99

$

Usually ships in 3-6 days

0

19

Toro 115-5048-03

PLATE-DEFLECTOR

$49.99

$

In Stock, only 2 left!

0

20

Toro 115-9653-03

BAFFLE-CUTOFF

$28.99

$

Usually ships in 3-6 days

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 4 left!

0

25

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, Qty 17

0

26

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

27

Toro 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

28

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

29

Toro 95-3270

CONNECTOR-HOSE

$27.99

$

In Stock, Qty 20+

0

30

Toro 117-5302

DECAL

$19.99

$

Usually ships in 3-6 days

0
