74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) Caster Wheel and Fork Assembly Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

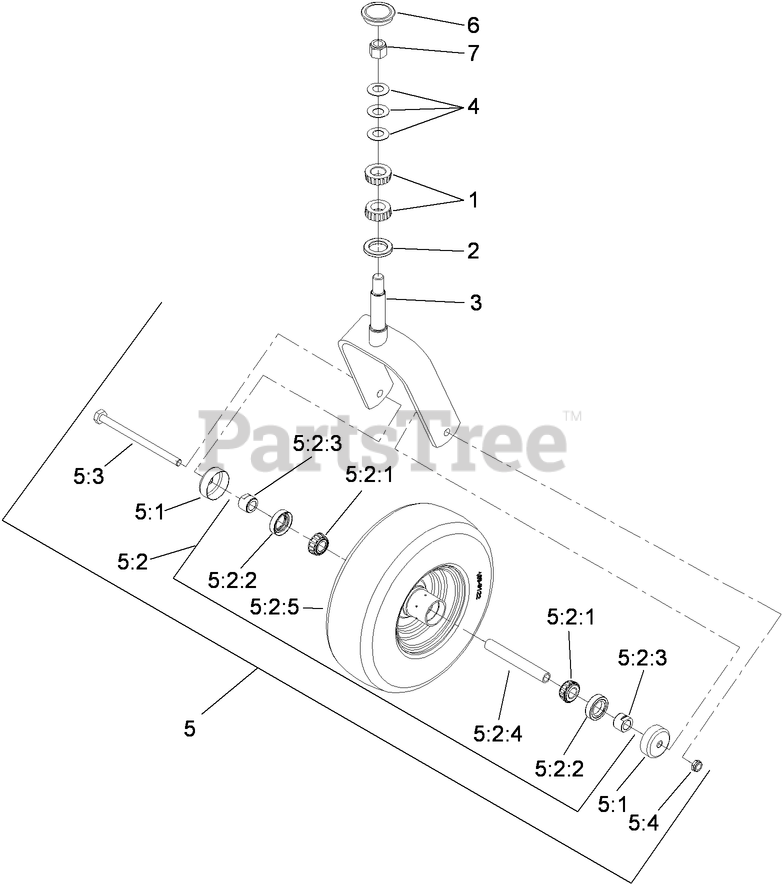

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

2

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

3

Toro 109-9422-01

See Supercession: 116-8884
(Superseded to 116-8884)

$197.99

$

In Stock, only 1 left!

0

4

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

5

Toro 109-9126

WHEEL & TIRE ASM

$339.99

$

In Stock, Qty 7

0

5:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

5:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

5:2:1

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

5:2:2

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

5:2:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

5:2:4

Toro 103-3155

See Supercession: 126-5360
(Superseded to 126-5360)

$17.99

$

In Stock, only 3 left!

0

5:2:5

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

5:3

Toro 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5:4

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0
