74915 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) Engine, Muffler and Clutch Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

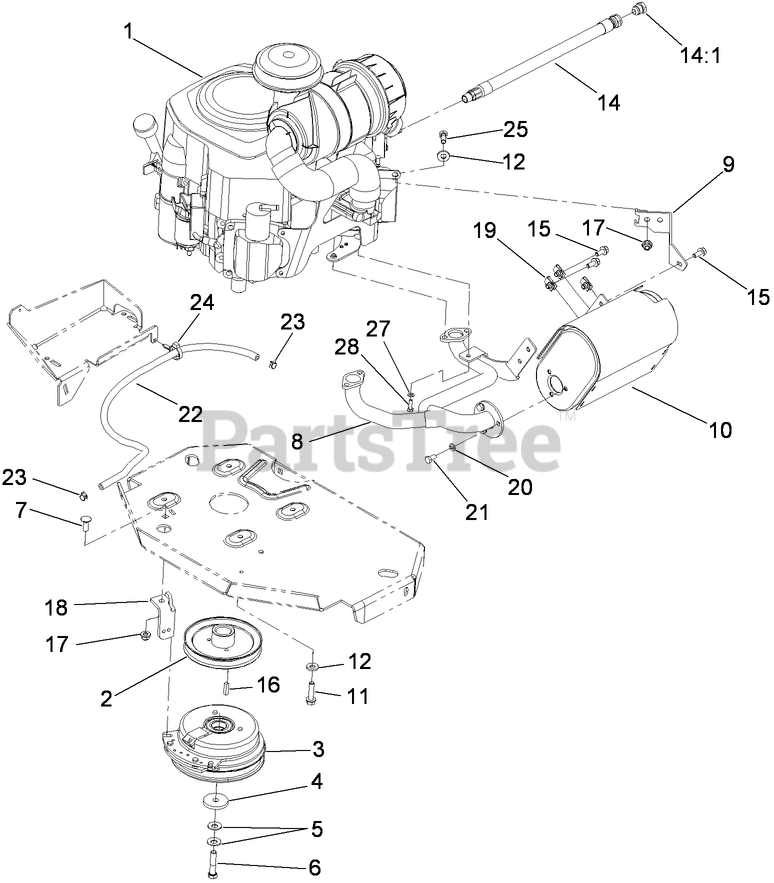

Engine, Muffler and Clutch Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, CV740

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, CV740

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$60.99

$

In Stock, Qty 15

0

3

Toro 109-9282

See Supercession: 116-1620
(Superseded to 116-1620)

$392.99

$

In Stock, Qty 16

0

4

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

5

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

6

Toro 109-9762

SCREW-HH W/LOCTITE

$5.99

$

In Stock, only 2 left!

0

7

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 116-0807

See Supercession: 126-8798
(Superseded to 126-8798)

$436.99

$

In Stock, only 1 left!

0

9

Toro 109-9230

See Supercession: 116-1586
(Superseded to 116-1586)

$38.99

$

Usually ships in 3-6 days

0

10

Toro 109-9280

MUFFLER-ENGINE

$312.99

$

In Stock, only 1 left!

0

11

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Toro 116-0013

See Supercession: 116-5316
(Superseded to 116-5316)

$62.99

$

In Stock, Qty 11

0

14:1

Toro 109-1012

PLUG

$9.49

$

Usually ships in 3-6 days

0

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

16

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 109-8138-01

ANCHOR-CLUTCH

$56.99

$

Usually ships in 3-6 days

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 109-0286

HOSE-FUEL

$25.99

$

Usually ships in 3-6 days

0

23

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

24

Toro 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

25

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

27

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

28

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0
