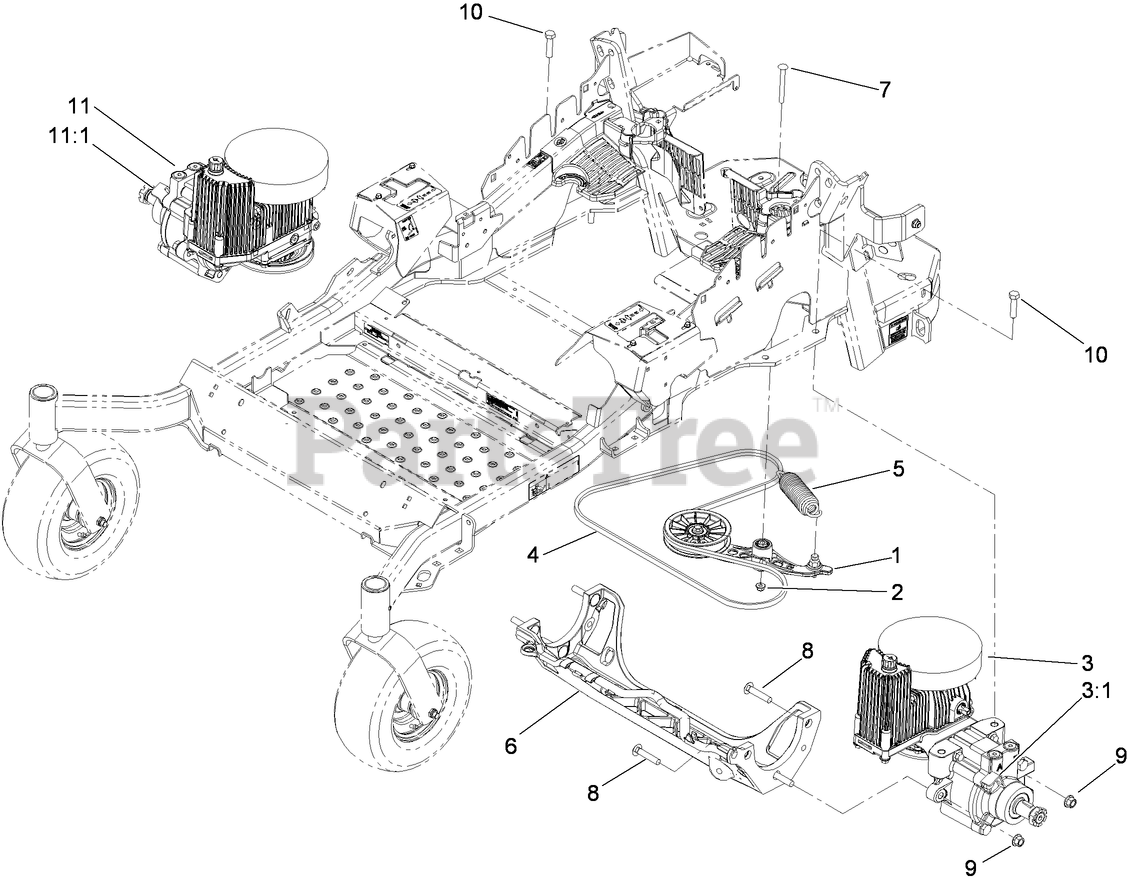

74921 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) Hydraulic Pump, Idler and Belt Assembly Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

Hydraulic Pump, Idler and Belt Assembly Parts Diagram

  • Title

1

Toro 116-1185

See Supercession: 116-1255
(Superseded to 116-1255)

$237.99

$

Usually ships in 3-6 days

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-8080

HYDRO-LH, 12CC (W/CHECK)

$

$

Not available

3:1

Toro 117-0377

See Supercession: 116-1758
(Superseded to 116-1758)

$15.99

$

Usually ships in 3-6 days

0

3:3

Toro 116-0233

FAN KIT
(Superseded to 142-3603)

Note: Not illustrated

$132.99

$

In Stock, Qty 14

0

3:4

Toro 116-0234

PULLEY KIT

Note: Not illustrated

$188.99

$

In Stock, only 3 left!

0

3:5

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0

3:6

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

Note: Not illustrated

$56.99

$

In Stock, Qty 8

0

3:7

Toro 116-0237

GASKET-DIPSTICK, HYDRO

Note: Not illustrated

$15.99

$

In Stock, only 4 left!

0

3:8

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$62.99

$

In Stock, only 1 left!

0

4

Toro 109-8069

See Supercession: 109-3388
(Superseded to 126-9835)

$49.99

$

In Stock, Qty 20+

0

5

Toro 116-0133

See Supercession: 116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 19

0

6

Toro 109-9375

See Supercession: 116-7558
(Superseded to 116-7558)

$256.99

$

Usually ships in 3-6 days

0

7

Toro 3231-41

BOLT-CARRIAGE

$5.99

$

Usually ships in 3-6 days

0

8

Toro 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 5

0

9

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

10

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

11

Toro 109-8081

HYDRO-RH, 12CC (W/CHECK)

$

$

Not available

11:1

Toro 117-0377

See Supercession: 116-1758
(Superseded to 116-1758)

$15.99

$

Usually ships in 3-6 days

0

11:3

Toro 116-0233

FAN KIT
(Superseded to 142-3603)

Note: Not illustrated

$132.99

$

In Stock, Qty 14

0

11:4

Toro 116-0234

PULLEY KIT

Note: Not illustrated

$188.99

$

In Stock, only 3 left!

0

11:5

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0

11:6

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

Note: Not illustrated

$56.99

$

In Stock, Qty 8

0

11:7

Toro 116-0237

GASKET-DIPSTICK, HYDRO

Note: Not illustrated

$15.99

$

In Stock, only 4 left!

0

11:8

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$62.99

$

In Stock, only 1 left!

0
