74933 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) MAIN FRAME ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

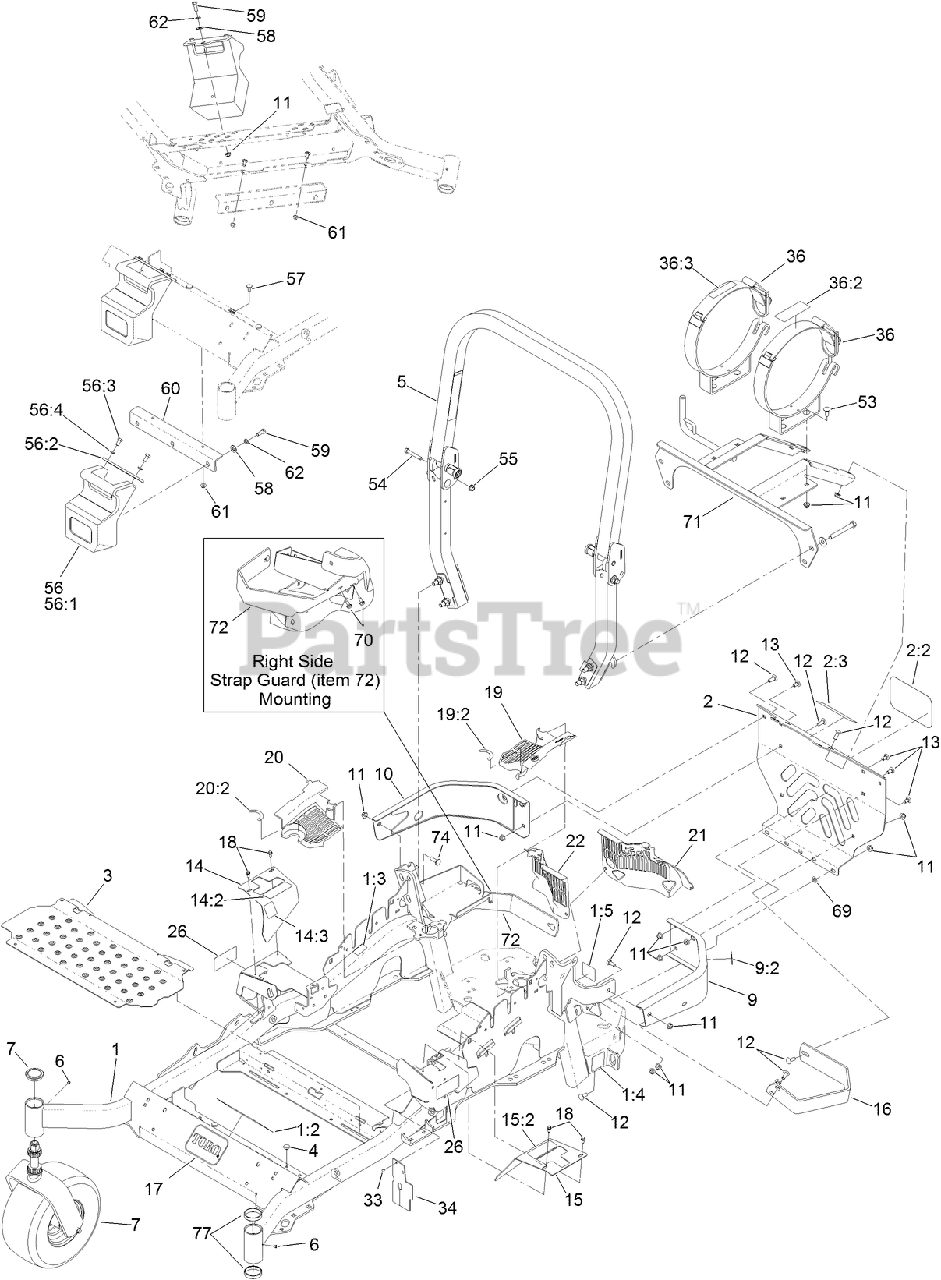

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 116-5902

MAINFRAME ASM
(Superseded to 142-7265)

$2831.99

$

Usually ships in 3-6 days

0

1:2

Toro 116-3303

DECAL-SLOPE

$

$

Not available

1:3

Toro 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

1:4

Toro 116-0205

DECAL-BELT DRIVE

$9.49

$

Usually ships in 3-6 days

0

1:5

Toro 116-4858

DECAL-SPARK ARRESTER

$3.99

$

Usually ships in 3-6 days

0

2

Toro 127-0306

LPG REAR GUARD ASM

$266.99

$

Usually ships in 3-6 days

0

2:2

Toro 67-7320

DECAL

$40.99

$

Usually ships in 3-6 days

0

2:3

Toro 109-9906

DECAL-TANK REPLACEMENT

$19.99

$

In Stock, only 2 left!

0

3

Toro 116-8898-01

FLOORPAN

$118.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

5

Toro 116-0231

ROPS ASM

$982.99

$

Usually ships in 3-6 days

0

6

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

7

Caster Wheel ASM

Note: Not serviced separately

$

$

Not available

9

Toro 116-0180

LH BUMPER ASM

$167.99

$

Usually ships in 3-6 days

0

9:2

Toro 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

10

Toro 116-0057-03

BUMPER-RH

$247.99

$

Usually ships in 3-6 days

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

14

Toro 116-5899

RH MOTION CONTROL COVER ASM

$54.99

$

In Stock, only 2 left!

0

14:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.99

$

Usually ships in 3-6 days

0

14:3

Toro 116-5944

DECAL-PARK BRAKE

$15.99

$

In Stock, Qty 12

0

15

Toro 116-0580

LH MOTION CONTROL COVER ASM

$31.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.99

$

Usually ships in 3-6 days

0

16

Toro 126-2067-03

GUARD-MUFFLER

$68.99

$

Usually ships in 3-6 days

0

17

Toro 68-3640

DECAL

$22.99

$

In Stock, Qty 9

0

18

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

19

Toro 116-0170

LH HYDRO GUARD ASM

$94.99

$

In Stock, only 1 left!

0

19:2

Toro 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.99

$

In Stock, Qty 20+

0

20

Toro 116-0171

RH HYDRO GUARD ASM

$94.99

$

In Stock, only 1 left!

0

20:2

Toro 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.99

$

In Stock, Qty 20+

0

21

Toro 109-9057

GUARD-HYDRO, REAR (LH)

$27.99

$

Usually ships in 3-6 days

0

22

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$28.99

$

In Stock, only 2 left!

0

26

Toro 120-5894

DECAL

$5.99

$

Usually ships in 3-6 days

0

33

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

34

Toro 116-2362

DEFLECTOR-AIR FLOW

$7.49

$

Usually ships in 3-6 days

0

36

Toro 116-2817

TANK BRACKET ASM (SET)

$391.99

$

Usually ships in 3-6 days

0

36:2

Toro 109-9875

DECAL-LPG WARNING

$

$

Not available

36:3

Toro 116-1714

DECAL-LPG 43.5LB TANK

$

$

Not available

53

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

54

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

55

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

56

Toro 120-7885

WEIGHT ASM

$920.99

$

Usually ships in 3-6 days

0

56:1

Toro 120-7881

WEIGHT-43 LB
(Superseded to 120-7882)

$902.99

$

Usually ships in 3-6 days

0

56:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$35.99

$

In Stock, only 1 left!

0

56:3

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

56:4

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0

57

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

58

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

59

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

60

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$52.99

$

Usually ships in 3-6 days

0

61

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

62

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0

69

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

70

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

71

Toro 116-3558-03

SUPPORT-LPG TANK

$282.99

$

Usually ships in 3-6 days

0

72

Toro 116-1432-03

STRAP-GUARD

$102.99

$

Usually ships in 3-6 days

0

74

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

77

Toro 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+
