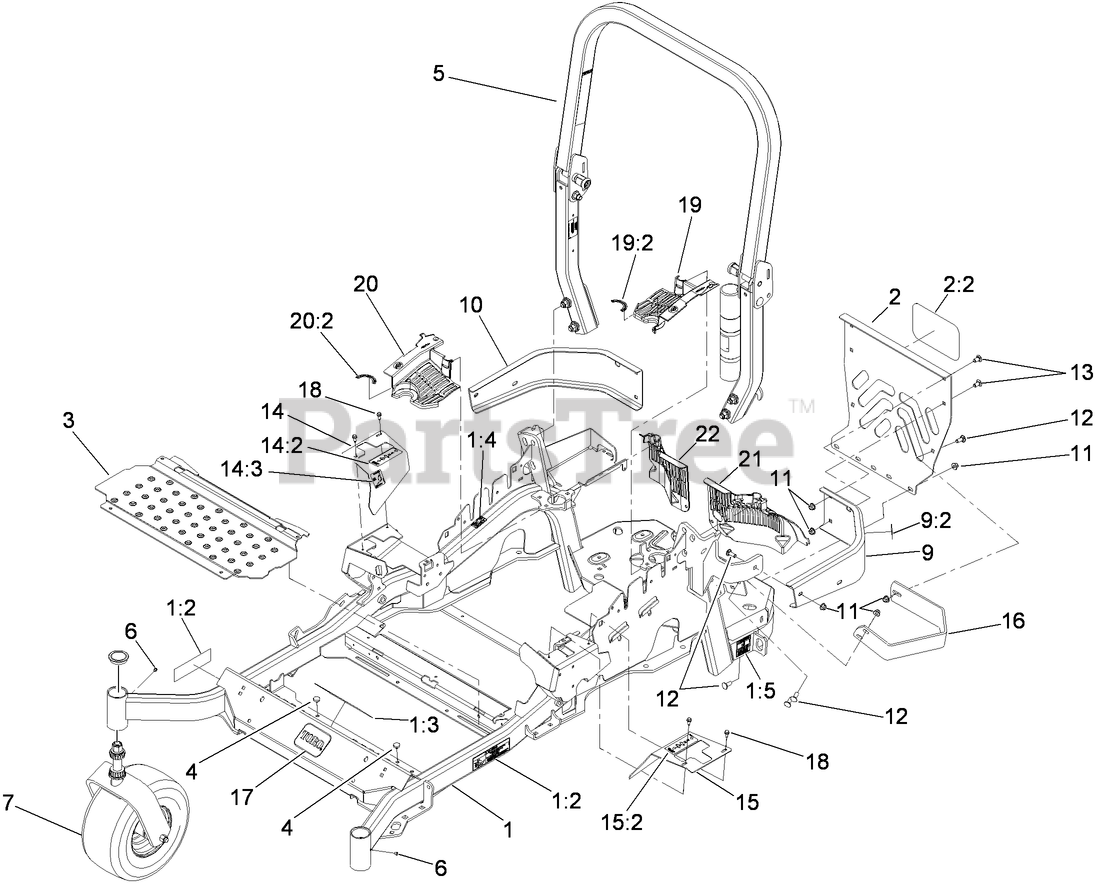

74935 - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) Front Frame and Caster Wheel Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Front Frame and Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 109-7347

See Supercession: 116-3573
(Superseded to 116-3573)

$

$

Not available

1:2

Toro 109-9477

DECAL-WARNING

$8.99

$

In Stock, only 1 left!

0

1:3

Toro 107-2112

DECAL-WARNING

$22.99

$

In Stock, only 2 left!

0

1:4

Toro 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

1:5

Toro 116-0205

DECAL-BELT DRIVE

$9.49

$

Usually ships in 3-6 days

0

2

Toro 115-7410

REAR GUARD ASM

$232.99

$

Usually ships in 3-6 days

0

2:2

Toro 67-7320

DECAL

$40.99

$

Usually ships in 3-6 days

0

3

Toro 116-0024-01

See Supercession: 116-8898-01
(Superseded to 116-8898-01)

$118.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

5

Toro 116-0231

ROPS ASM

$982.99

$

Usually ships in 3-6 days

0

6

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

7

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

9

Toro 116-0180

LH BUMPER ASM

$167.99

$

Usually ships in 3-6 days

0

9:2

Toro 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

10

Toro 116-0057-03

BUMPER-RH

$247.99

$

Usually ships in 3-6 days

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

14

Toro 116-0579

See Supercession: 116-5899
(Superseded to 116-5899)

$54.99

$

In Stock, only 2 left!

0

14:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.99

$

Usually ships in 3-6 days

0

14:3

Toro 109-7929

See Supercession: 116-5944
(Superseded to 116-5944)

$15.99

$

In Stock, Qty 12

0

15

Toro 116-0580

LH MOTION CONTROL COVER ASM

$31.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.99

$

Usually ships in 3-6 days

0

16

Toro 116-0043-03

See Supercession: 126-2067-03
(Superseded to 126-2067-03)

$68.99

$

Usually ships in 3-6 days

0

17

Toro 68-3640

DECAL

$22.99

$

In Stock, Qty 9

0

18

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

19

Toro 116-0170

LH HYDRO GUARD ASM

$94.99

$

In Stock, only 1 left!

0

19:2

Toro 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.99

$

In Stock, Qty 20+

0

20

Toro 116-0171

RH HYDRO GUARD ASM

$94.99

$

In Stock, only 1 left!

0

20:2

Toro 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.99

$

In Stock, Qty 20+

0

21

Toro 109-9057

GUARD-HYDRO, REAR (LH)

$27.99

$

Usually ships in 3-6 days

0

22

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$28.99

$

In Stock, only 2 left!

0
