74952 (3000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402100000 - 403319824) Caster Wheel and Fork Assembly Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

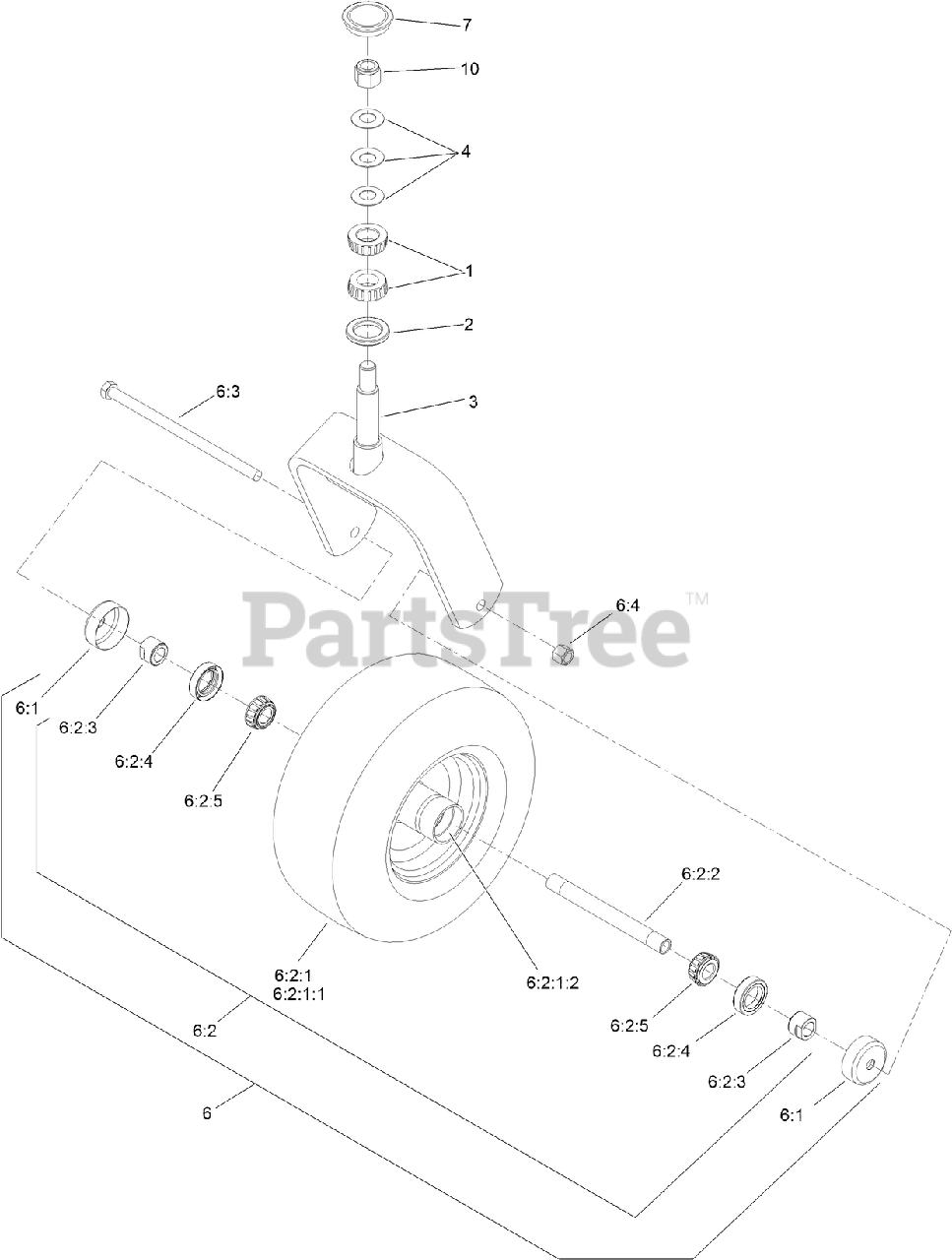

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

2

Toro 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

3

Toro 116-6702-01

FORK-CASTER

$130.99

$

In Stock, only 2 left!

0

4

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 127-9535

WHEEL AND AXLE ASM

$210.99

$

Usually ships in 3-6 days

0

6:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

6:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

6:2:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

6:2:1:1

Toro 1-633002

TIRE

$108.99

$

Usually ships in 3-6 days

0

6:2:1:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

6:2:2

Toro 126-5360

AXLE-CASTER

$17.99

$

In Stock, only 3 left!

0

6:2:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

6:2:4

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

6:2:5

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

6:3

Toro 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

10

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0
