74959 (3000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402090000 - 403010621) Caster Wheel and Fork Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

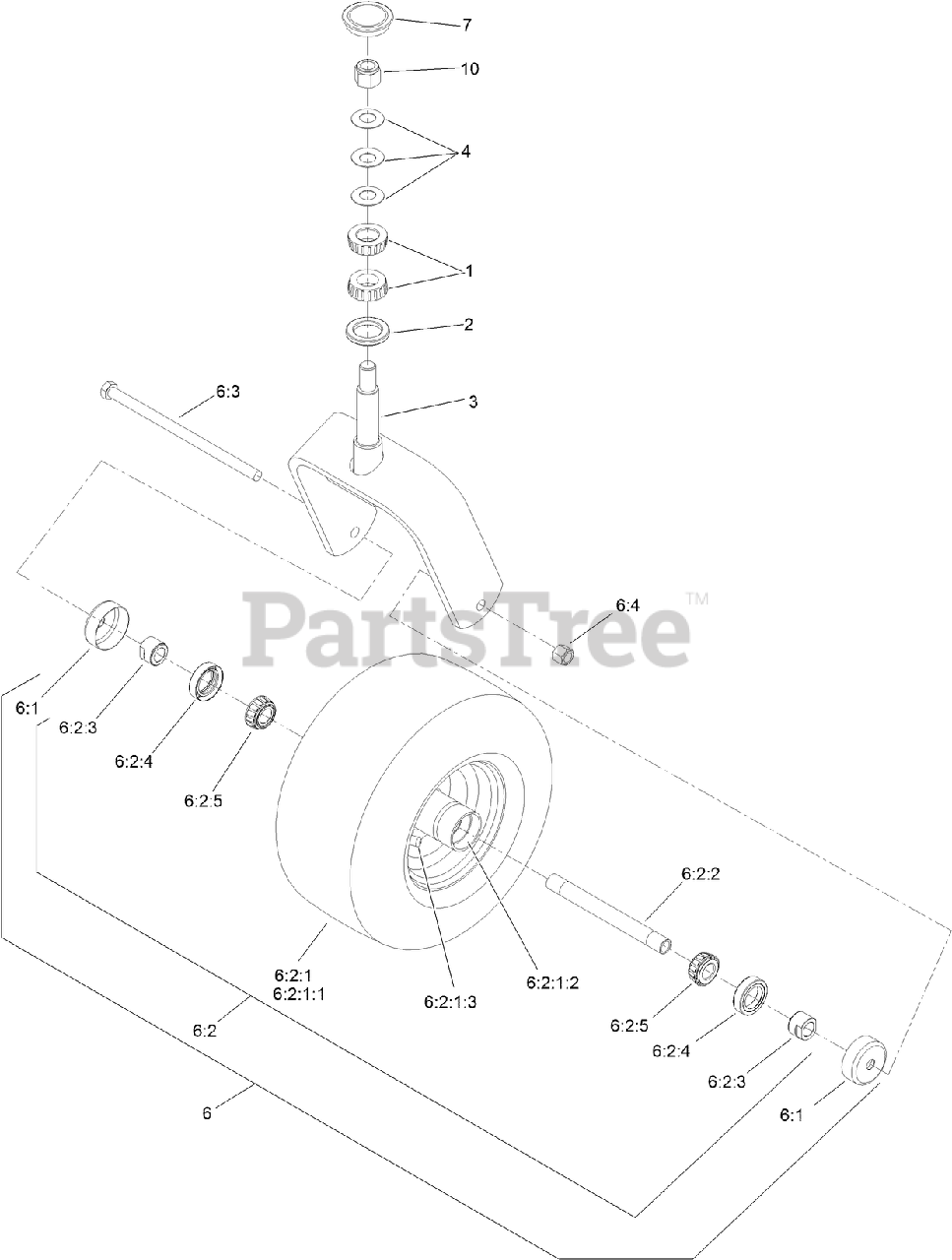

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

2

Toro 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

3

Toro 116-6707-01

See Supercession: 116-8888
(Superseded to 116-8888)

$208.99

$

In Stock, Qty 20+

0

4

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 127-9540

WHEEL AND AXLE ASM

$349.99

$

Usually ships in 3-6 days

0

6:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

6:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

6:2:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

6:2:1:1

Toro 1-523009

TIRE

$124.99

$

Usually ships in 3-6 days

0

6:2:1:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

6:2:1:3

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

6:2:2

Toro 126-5361

AXLE CASTER ASM

$22.99

$

In Stock, Qty 9

0

6:2:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

6:2:4

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

6:2:5

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

6:3

Toro 325-39

SCREW-HH

$19.99

$

In Stock, Qty 20+

0

6:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

10

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0
